Principles of Operation

Communications Network

Principles of Operation

NOTE: The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).

Vehicle communication utilizes both ISO 9141 and Controller Area Network (CAN) communications. ISO 9141 is used for diagnostic use only, and CAN is a method for transferring data among distributed electronic modules via a serial data bus.

The vehicle is equipped with 3 module communication networks:

- ISO 9141
- Medium Speed Controller Area Network (MS-CAN)
- High Speed Controller Area Network (HS-CAN)

ISO 9141 Communications Network

The ISO 9141 communications network is a single wire network. The ISO 9141 communications network does not permit intermodule communication and is used for diagnostic use only. The only module on the ISO 9141 network is the PAM. When the scan tool communicates to the PAM, the scan tool must request all information, the module cannot initiate communications.

The following fault chart describes the specific ISO 9141 network failures and their resulting symptom:

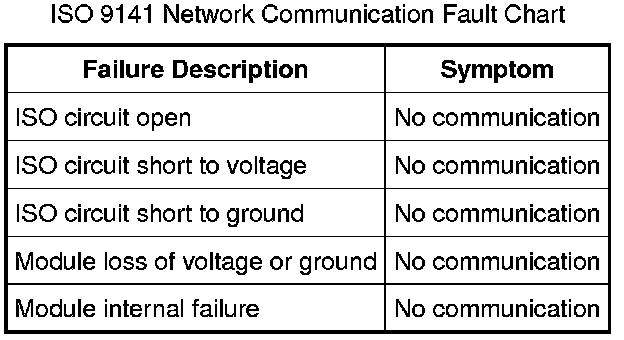

ISO 9141 Network Communication Fault Chart:

Medium Speed Controller Area Network (MS-CAN)

The MS-CAN uses an unshielded twisted pair cable of data (+) and data (-) circuits. The data (+) and the data (-) circuits are each regulated to approximately 2.5 volts during neutral or rested network traffic. As bus messages are sent on the data (+) circuit, voltage is increased by approximately 1.0 volt. Inversely, the data (-) circuit is reduced by approximately 1.0 volt when a bus message is sent. Multiple bus messages can be sent over the network CAN circuits allowing multiple modules to communicate with each other for general information transfer. The MS-CAN will not communicate while certain faults are present, but will operate with diminished performance with other faults present. The MS-CAN bus may remain operational when 1 of the 2 termination resistors are not present.

In the event that 1 of the 2 network circuits (MS-CAN + or MS-CAN -) becomes open to a module on the network, unreliable network communication to all modules on the network may result. The module to which the network circuit is open may repeatedly send network messages indicating there has been partial data received. This type of message is referred to as a Negative-Acknowledge (NACK) message. Repeated NACK messages may "load" the network with too much activity causing intermittent no communication to other network modules and/or the scan tool.

The following fault chart describes the specific MS-CAN failures and their resulting symptom:

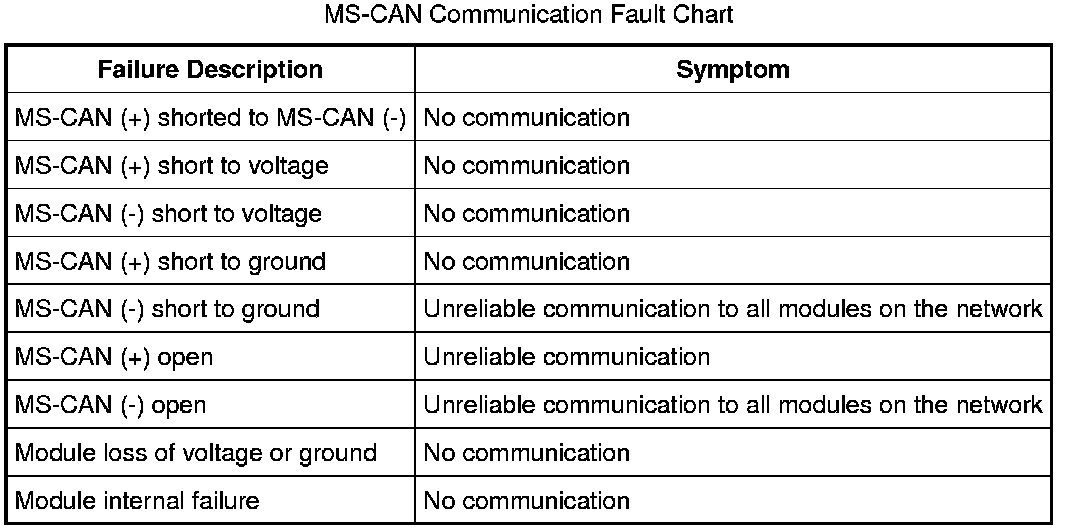

MS-CAN Communication Fault Chart:

High Speed Controller Area Network (HS-CAN)

The HS-CAN uses an unshielded twisted pair cable of data (+) and data (-) circuits. The data (+) and the data (-) circuits are each regulated to approximately 2.5 volts during neutral or rested network traffic. As bus messages are sent on the data (+) circuit, voltage is increased by approximately 1.0 volt. Inversely, the data (-) circuit is reduced by approximately 1.0 volt when a bus message is sent. Multiple bus messages can be sent over the network CAN circuits allowing multiple modules to communicate with each other for real time information transfer and control. The HS-CAN will not communicate while certain faults are present, but will operate with diminished performance with other faults present. The HS-CAN bus may remain operational when 1 of the 2 termination resistors are not present. The

In the event that 1 of the 2 network circuits (HS-CAN + or HS-CAN -) becomes open to a module on the network, unreliable network communication to all modules on the network may result. The module to which the network circuit is open may repeatedly send network messages indicating there has been partial data received. This type of message is referred to as a Negative-Acknowledge (NACK) message. Repeated NACK messages may "load" the network with too much activity causing intermittent no communication to other network modules and/or the scan tool.

The following fault chart describes the specific HS-CAN failures and their resulting symptom:

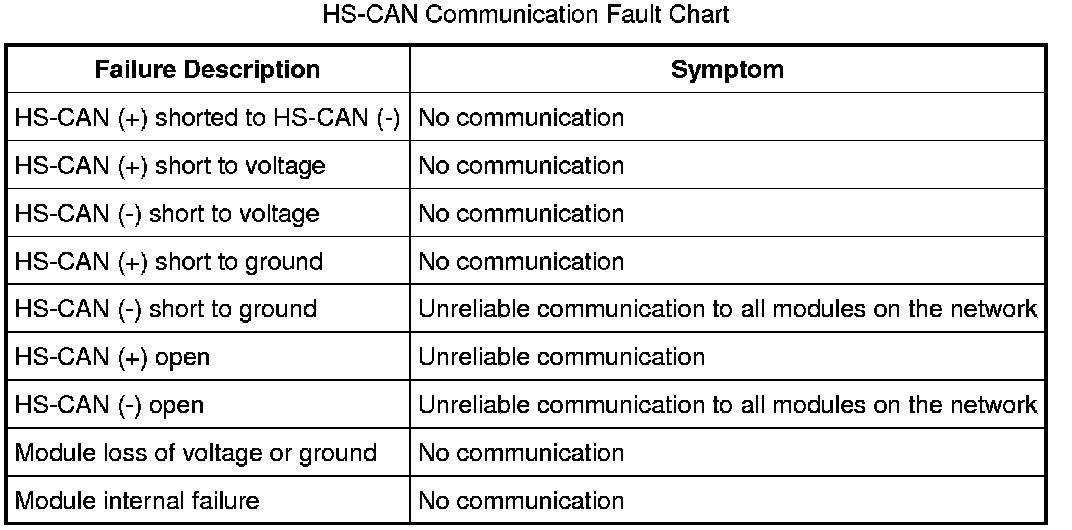

HS-CAN Communication Fault Chart:

The following chart describes the specific CAN messages broadcast by each module, and the module(s) that receive the message:

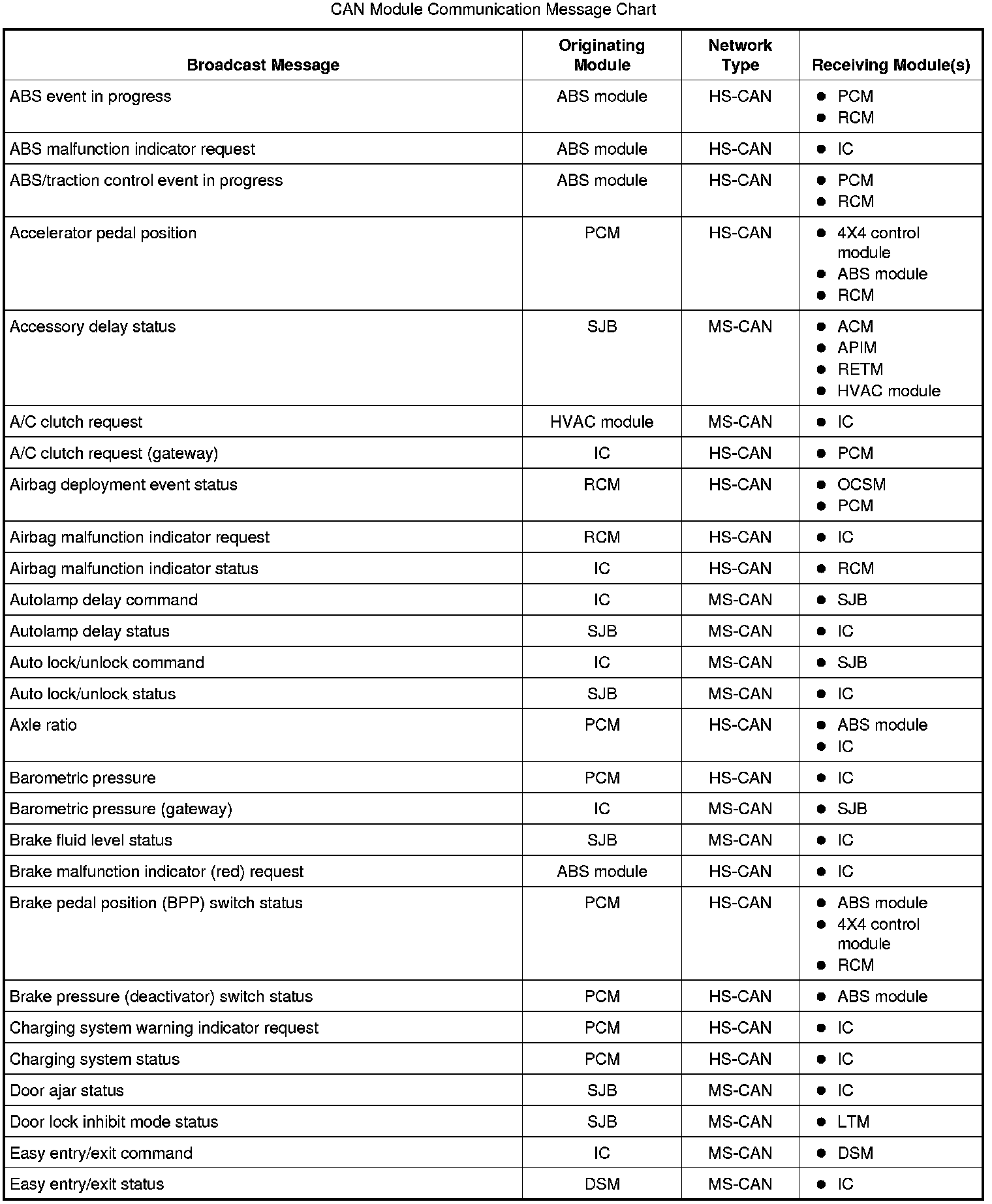

CAN Module Communication Message Chart (Part 1):

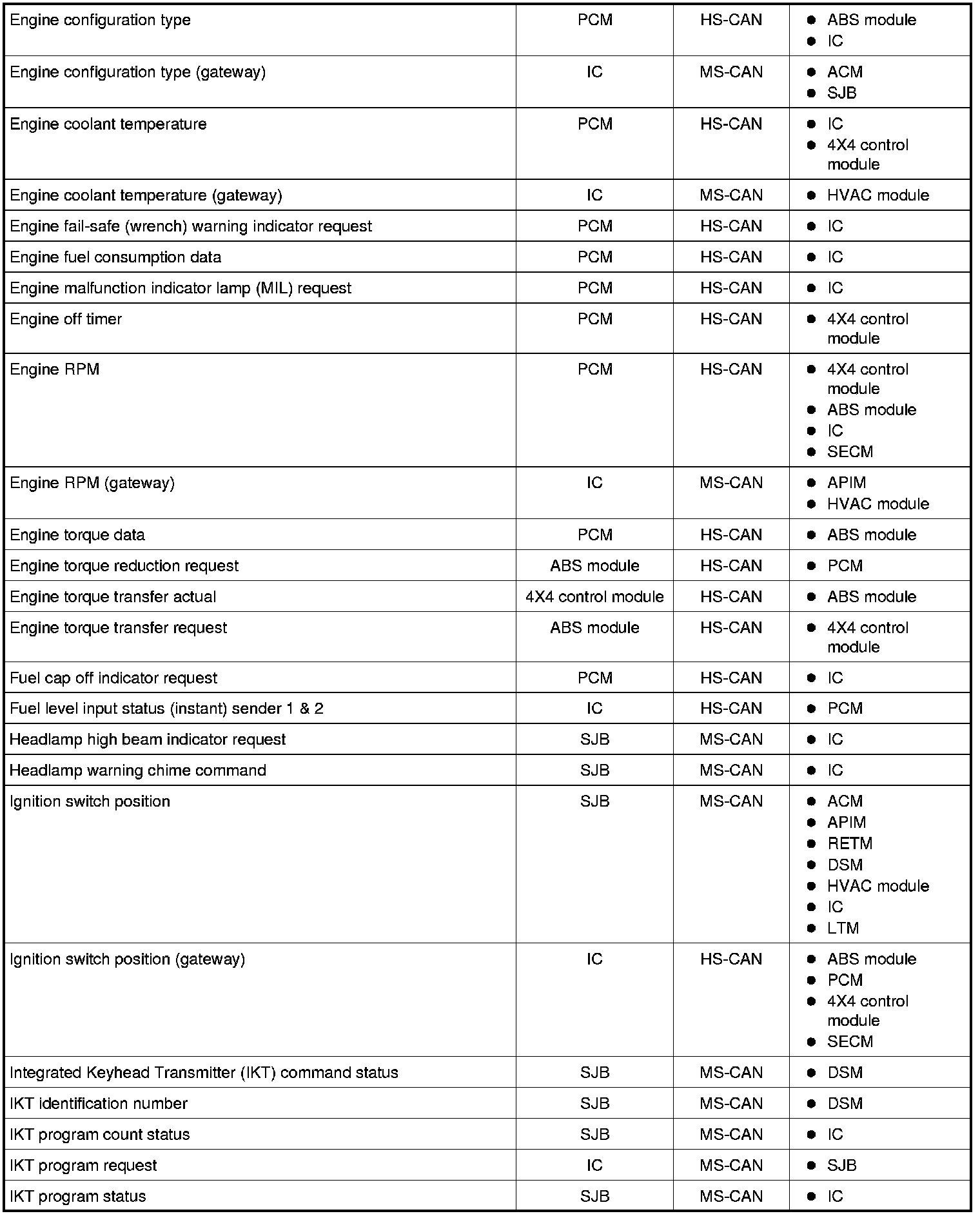

CAN Module Communication Message Chart (Part 2):

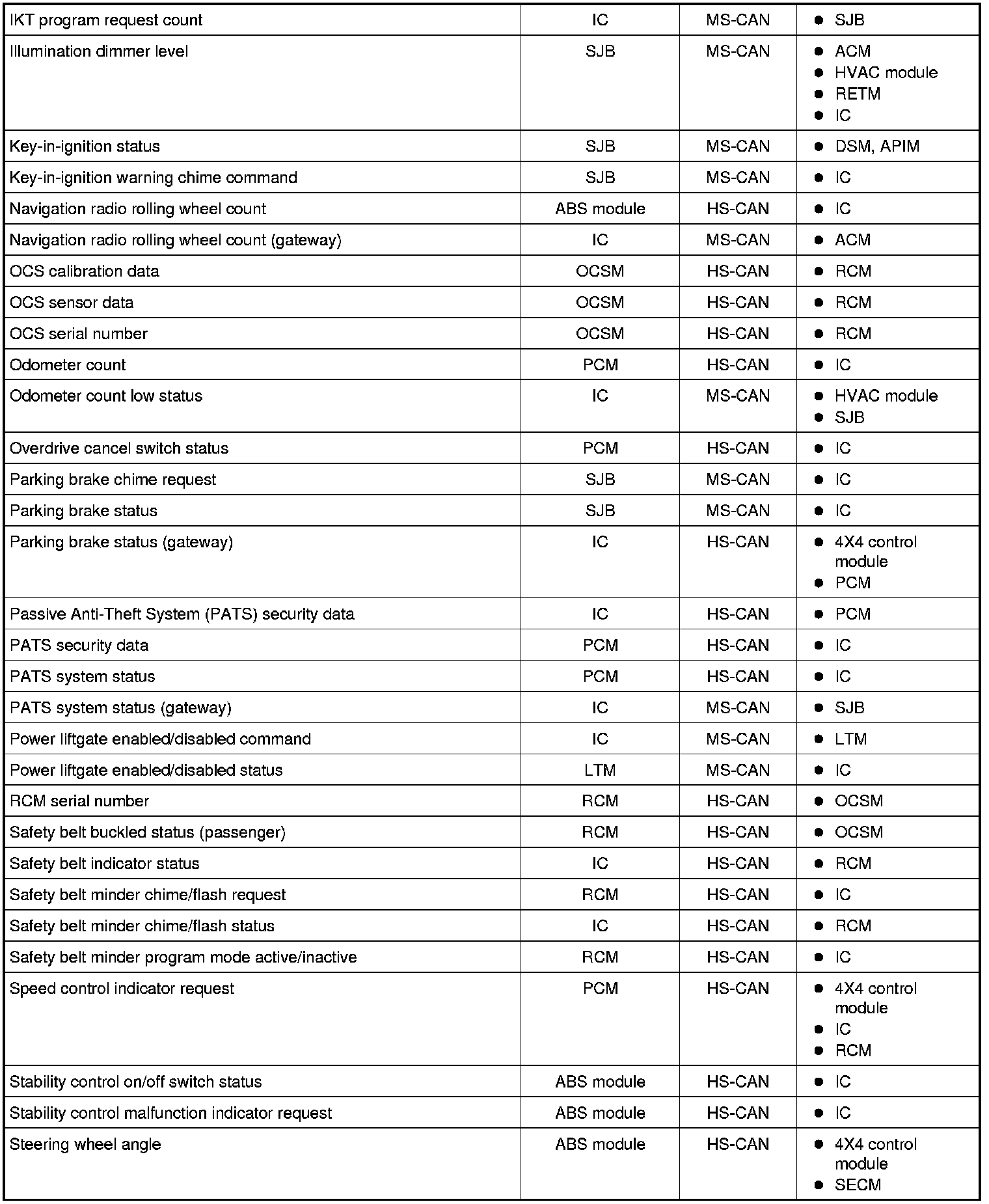

CAN Module Communication Message Chart (Part 3):

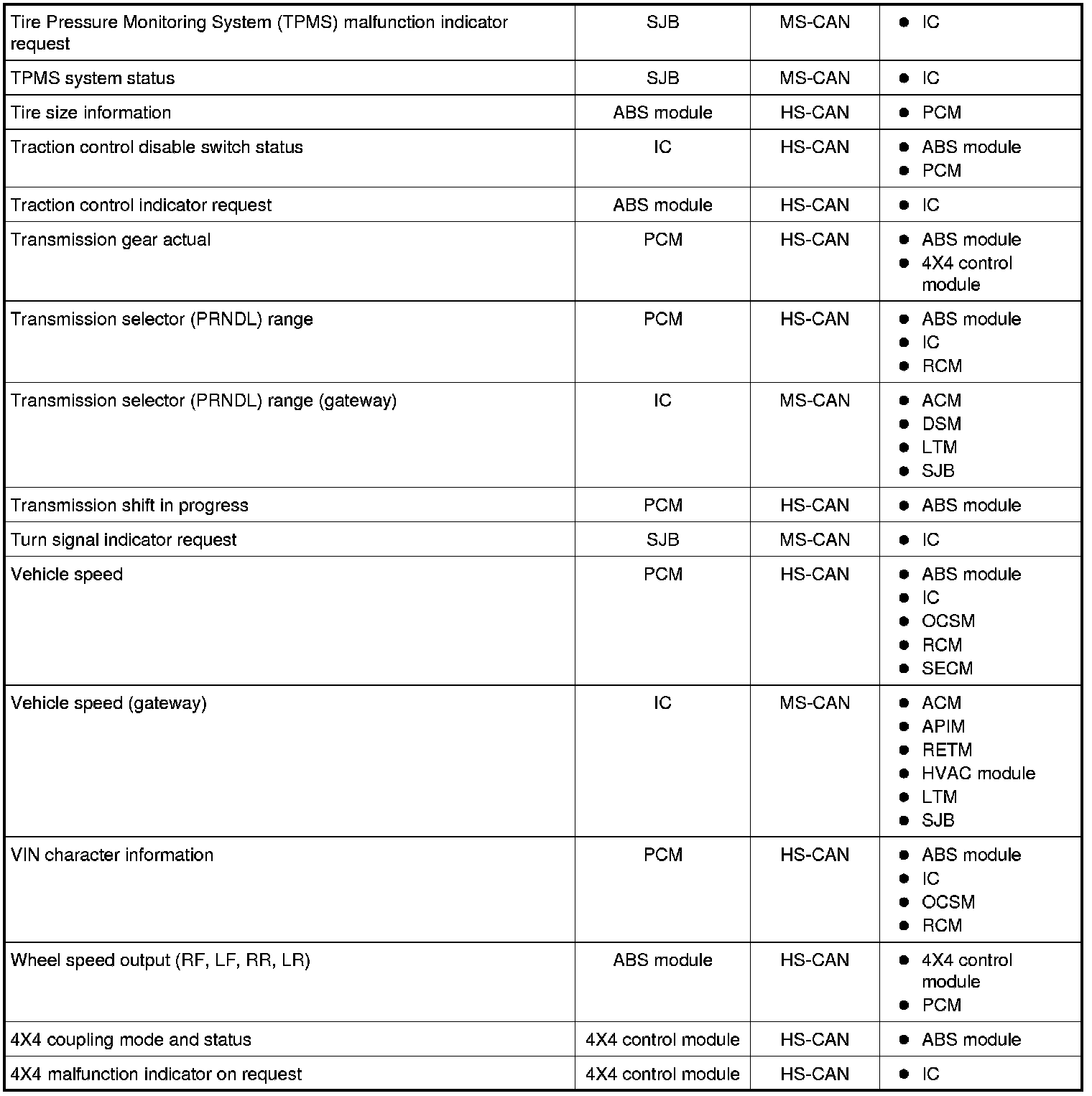

CAN Module Communication Message Chart (Part 4):
