Diagnostic Trouble Code Tests and Associated Procedures
>>
Module Configuration
Module Configuration
Module Configuration

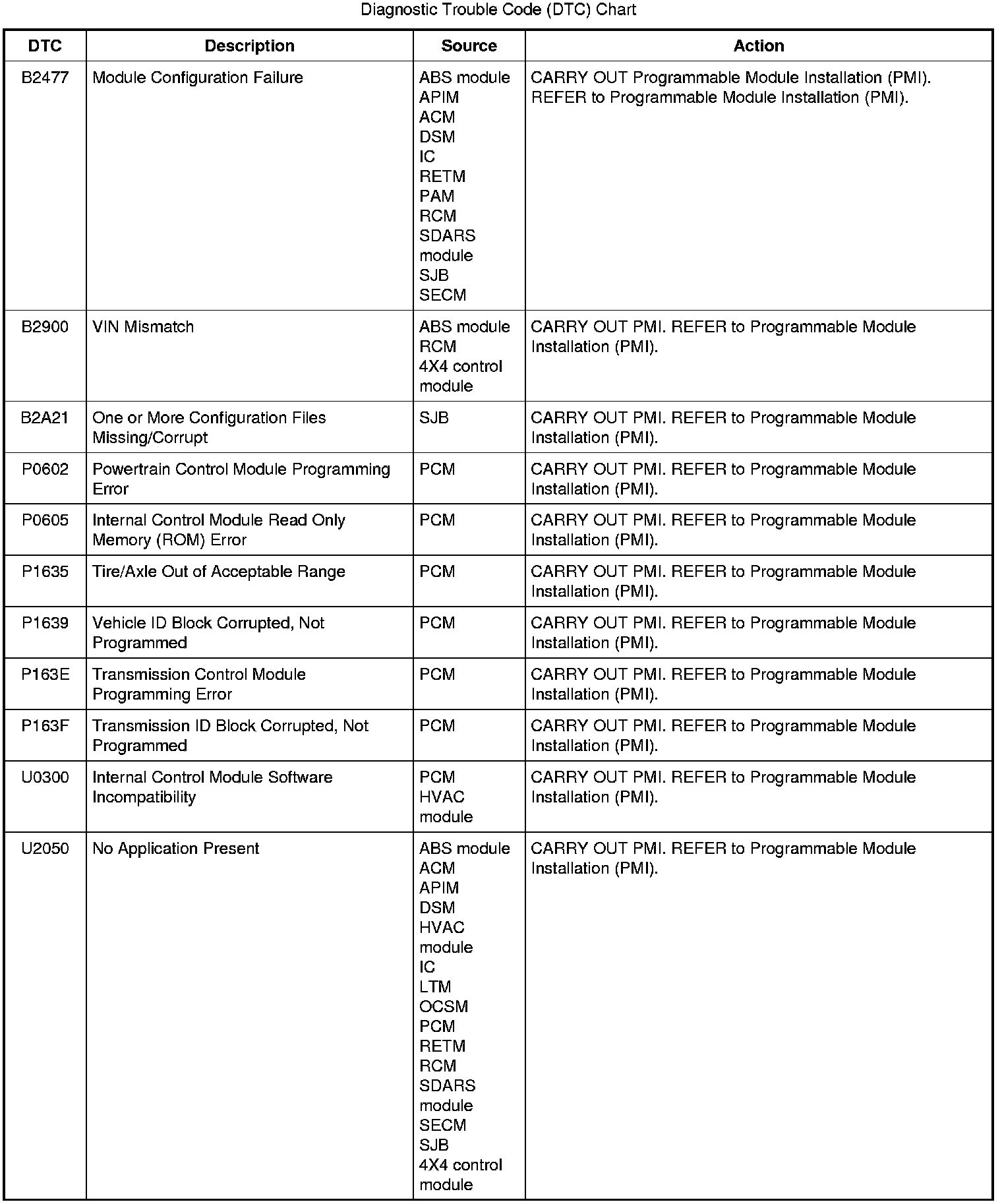

B2A21-B2900 / P163E-P1639 / U0300-U2050:

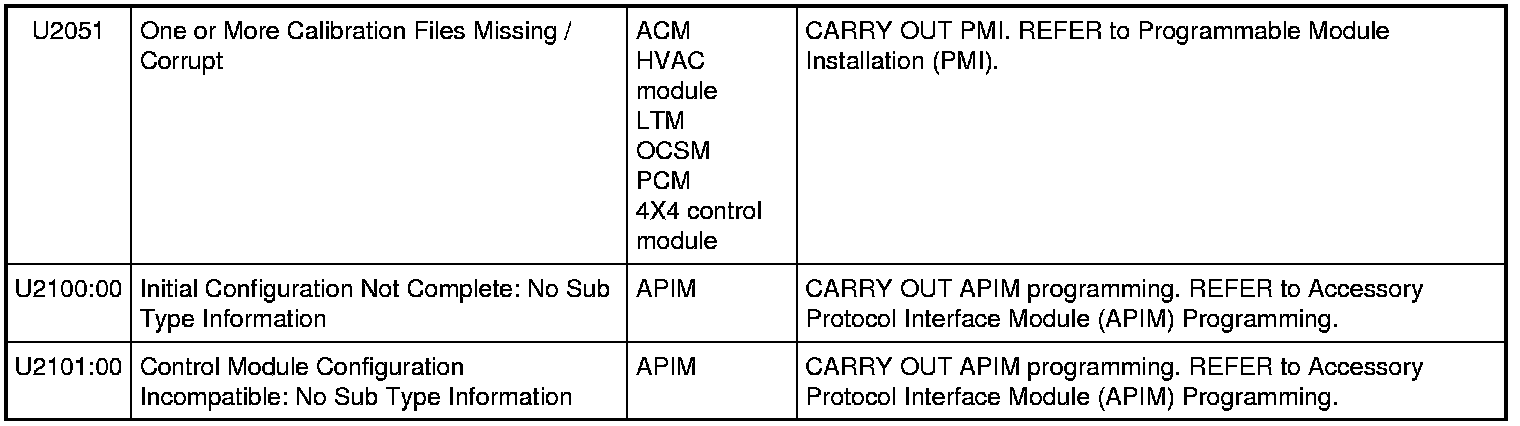

U2051-U2101:00:
