Home
>>
Mercury
>>
2009
>>
Sable FWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Communications Network
Communications Network
Communications Network
DTC Charts

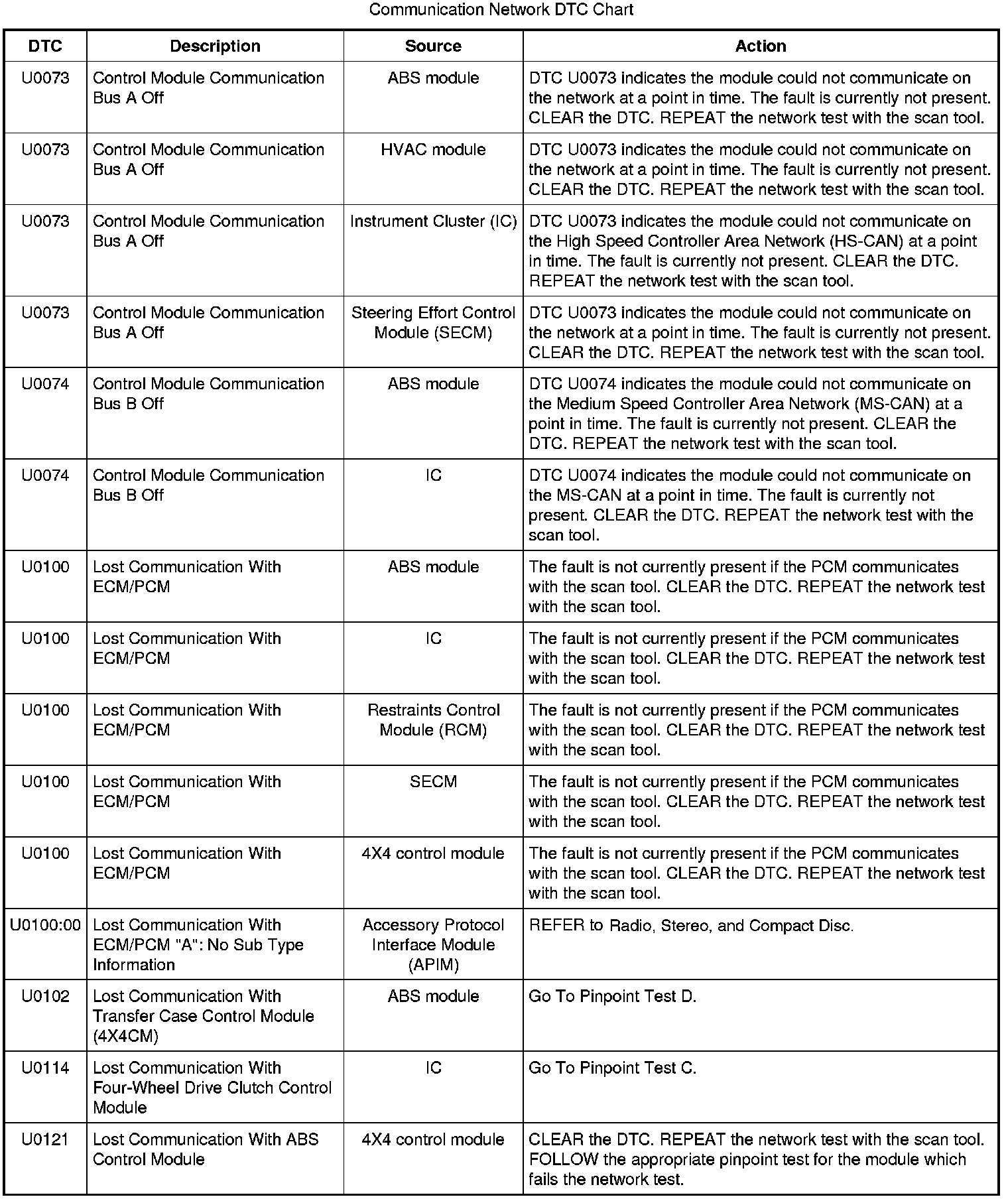

U0073-U0121:

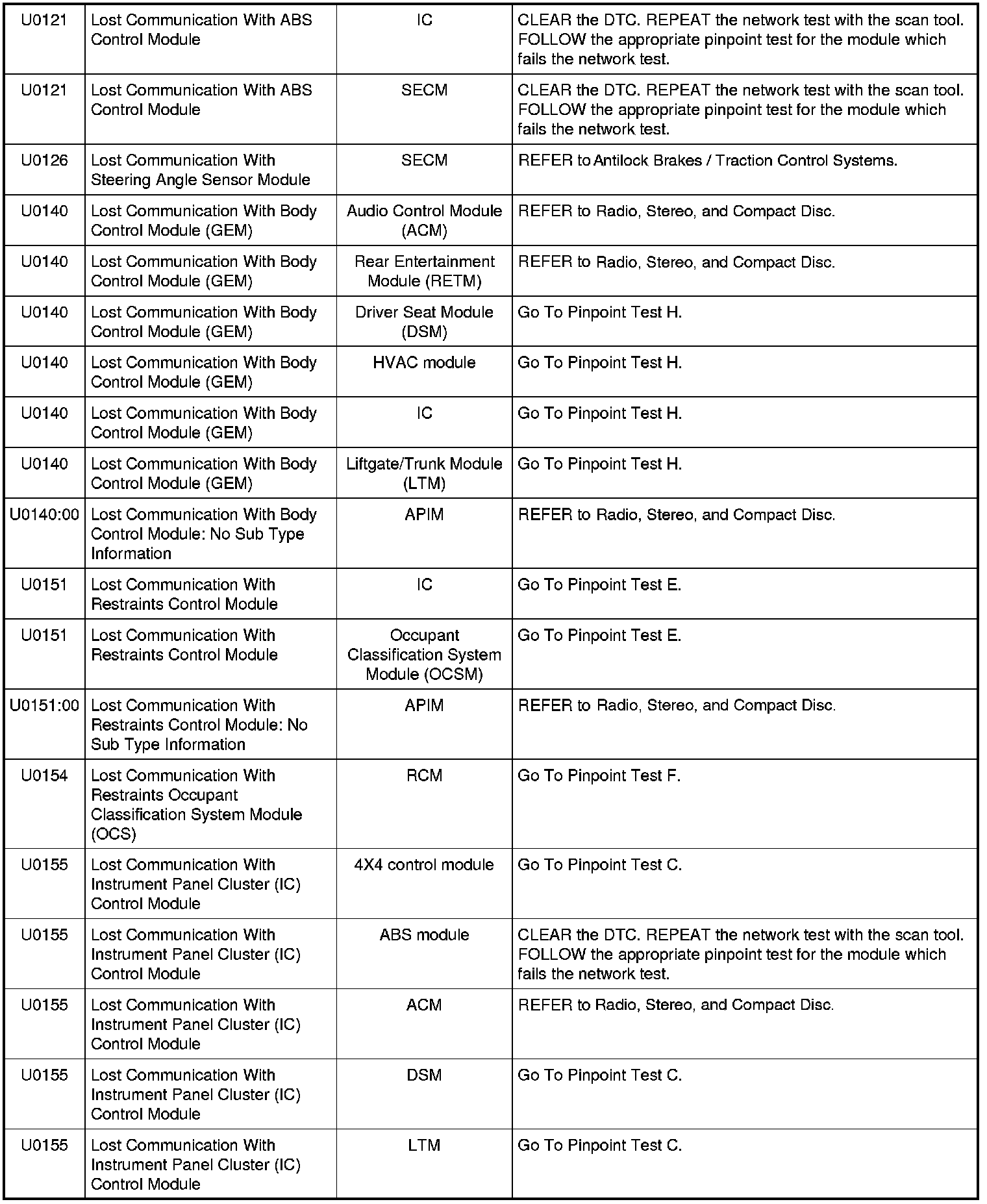

U0121-U0155:

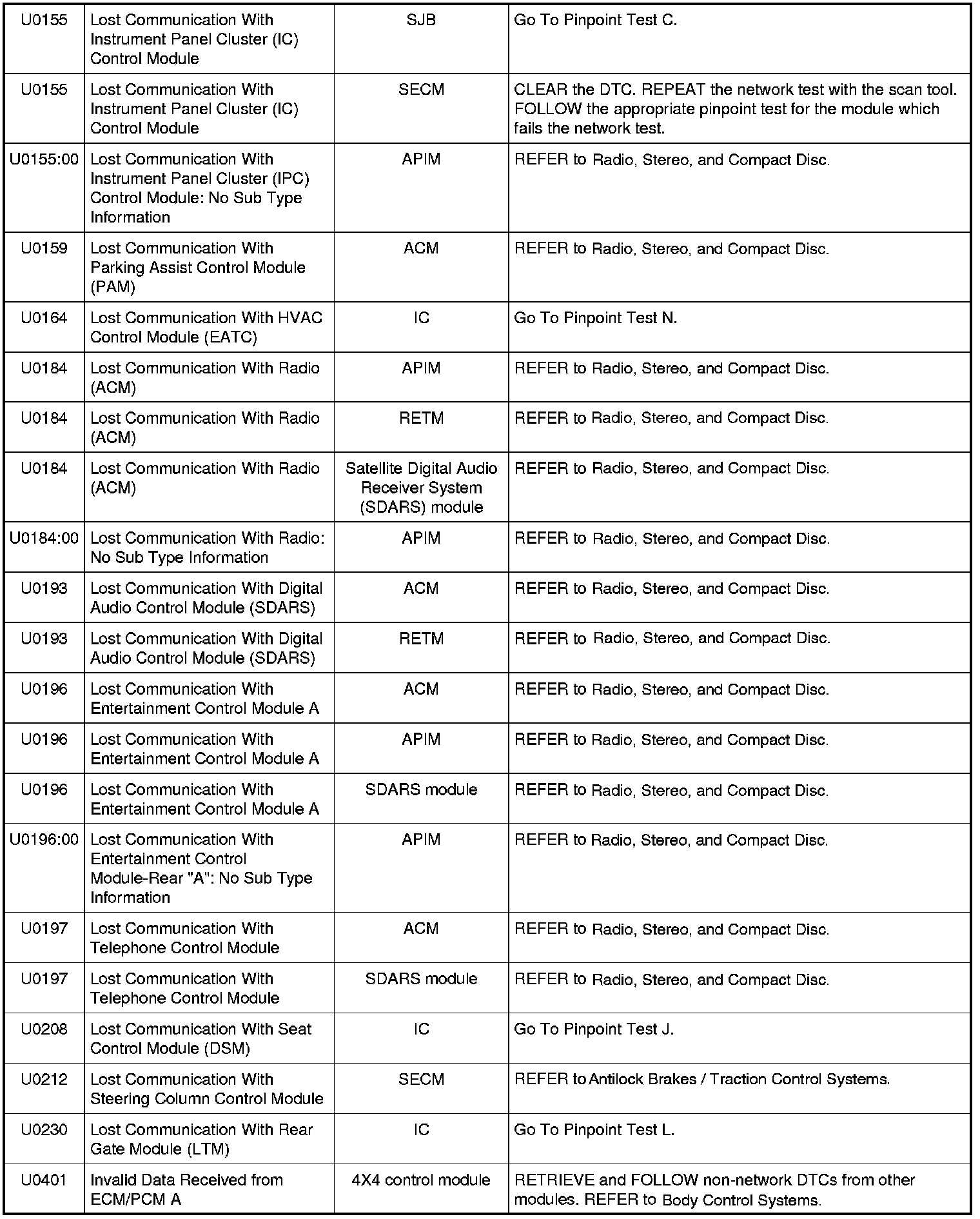

U0155-U0401:

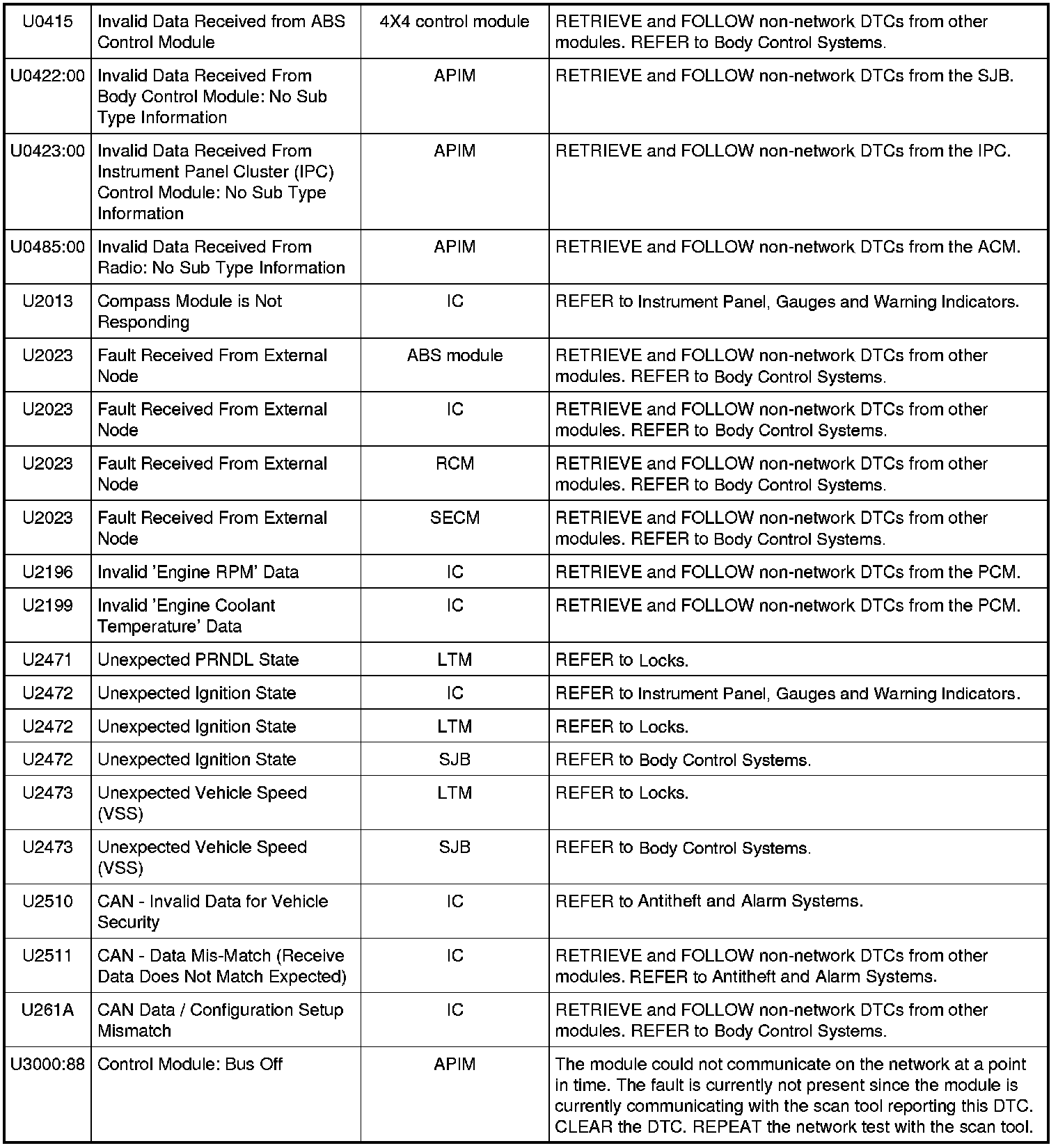

U261A-U3000:88:
