Instrument Cluster (IC)

Instrument Cluster (IC)









Removal

NOTE: If installing a new Instrument Cluster (IC), all vehicle keys are erased during the parameter reset procedure. Verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

1. If installing a new Instrument Cluster (IC), upload the module configuration information to the scan tool.

2. Remove the IC finish panel. Instrument Cluster / Carrier

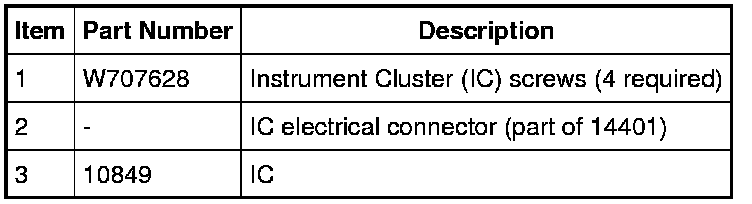

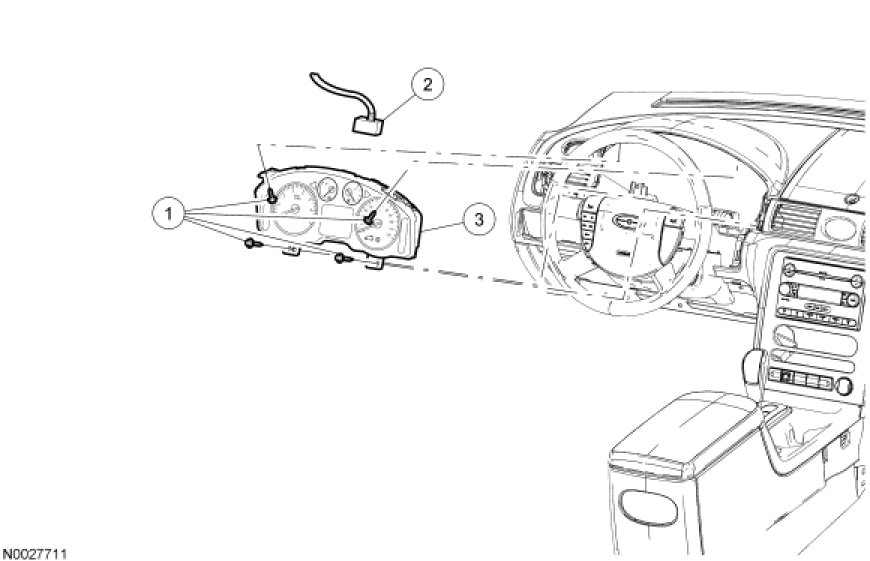

3. Remove the 4 screws and the IC.
- Disconnect the electrical connector.

Installation

1. Position the IC in the instrument panel, connect the electrical connector and install the 4 screws.

2. Install the IC finish panel. Instrument Cluster / Carrier

3. If installing a new IC, download the IC configuration information from the scan tool into the new IC.

4. NOTE: If a new IC is installed, the IC and the PCM require a parameter reset to allow the IC and the PCM to recognize each other. Failure to carry out the parameter reset to the IC and the PCM may result in a no start condition.

If installing a new IC, carry out the parameter reset procedure. Passive Anti-Theft System (PATS)

5. NOTE: If equipped, the vehicles Passive Anti-Theft System (PATS) keys must be programmed to the new IC.

If installing a new IC, carry out the PATS key programming. Programming and Relearning
