FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2009
>>
Sable FWD V6-3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>

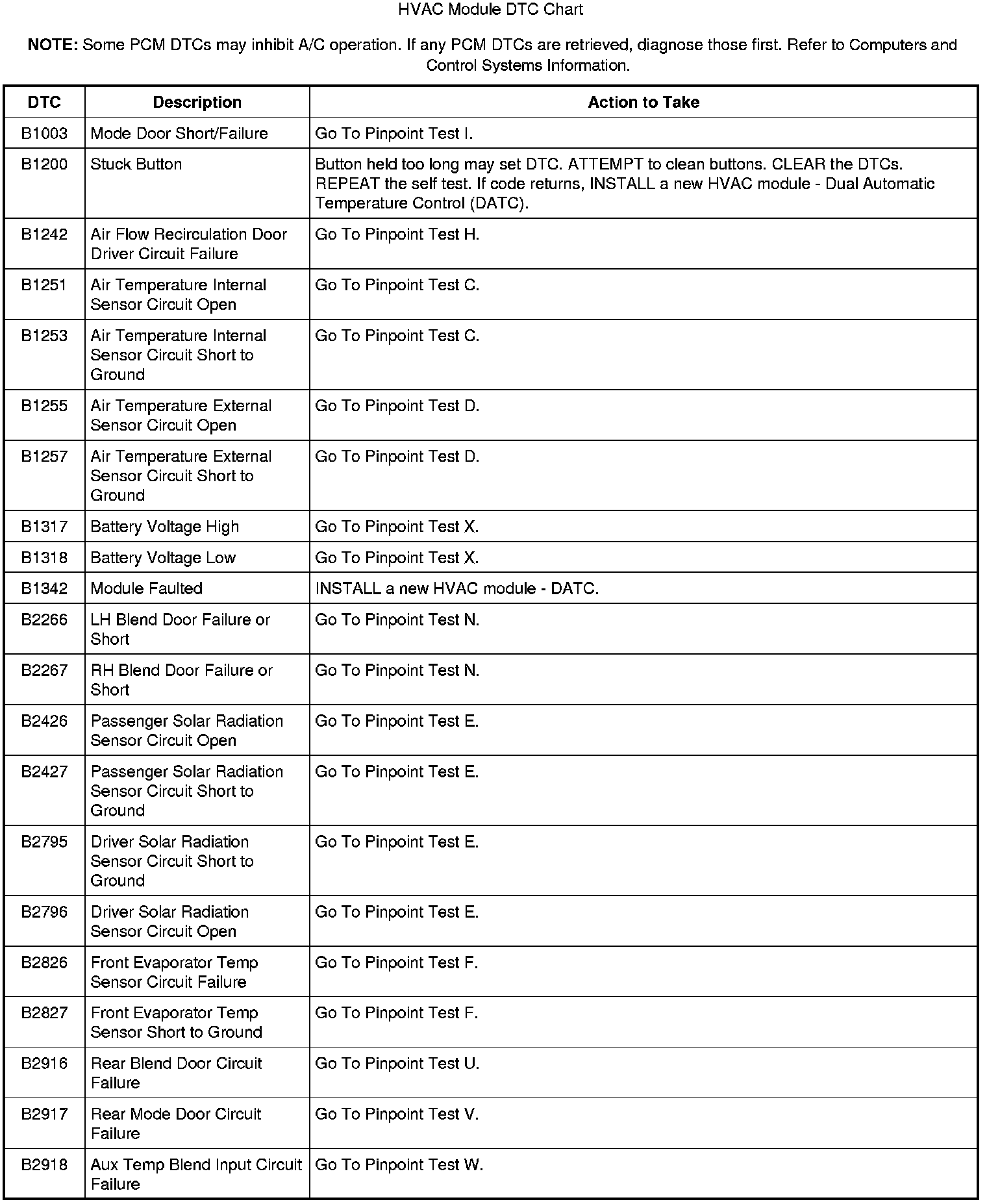

HVAC Module DTC Chart
HVAC Module DTC Chart
Climate Control System
DTC Charts
B1003-B2918:

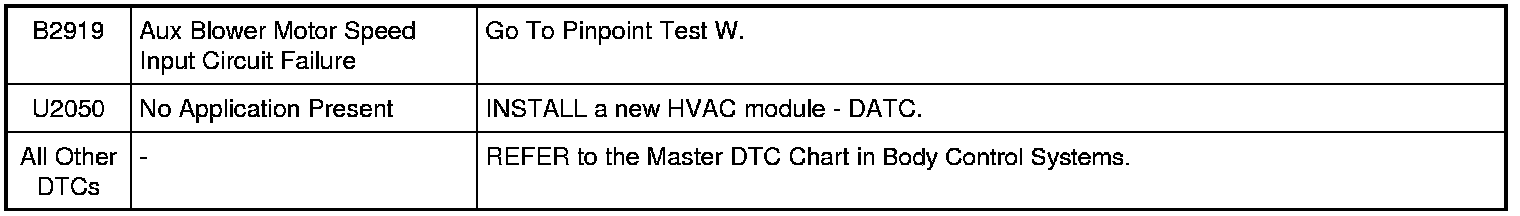

B2919 / U2050:
