Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

1. Remove the instrument panel center finish panel. Instrument Cluster / Carrier

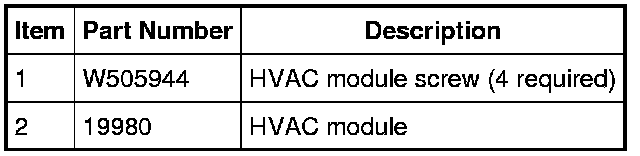

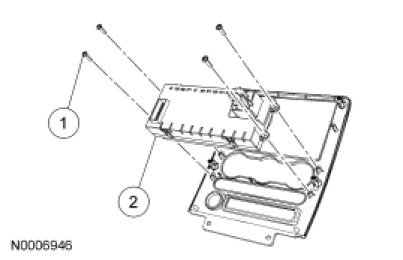

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. To install, reverse the removal procedure.
