Exhaust Manifold - RH

Exhaust Manifold - RH

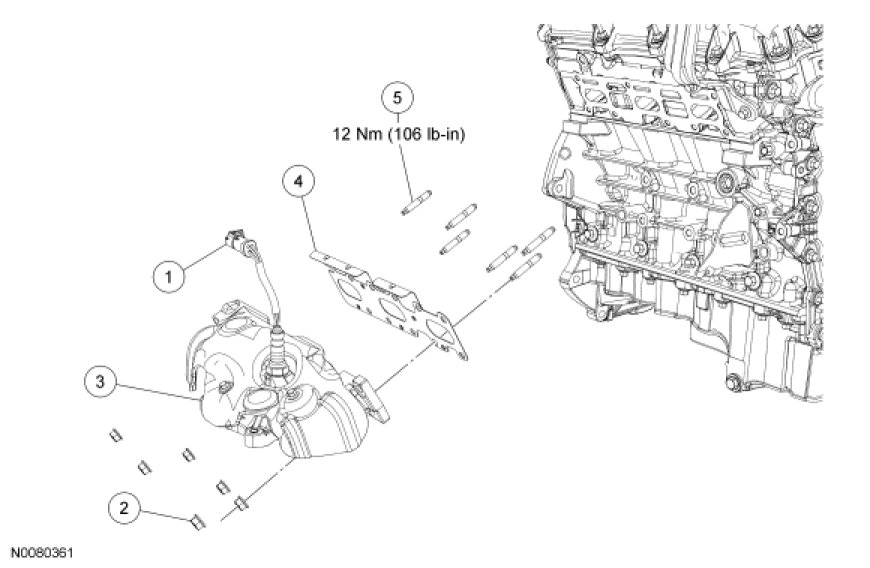

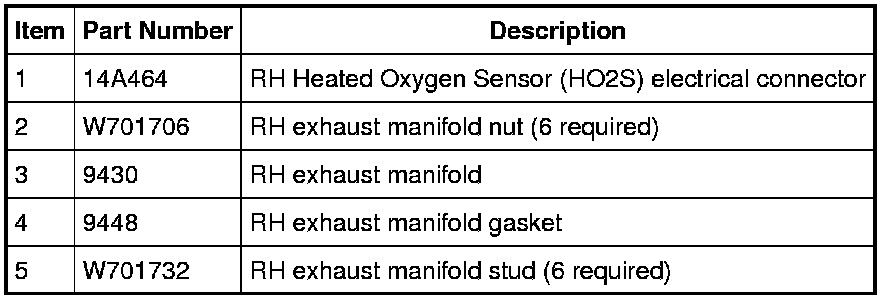

Removal

1. Remove the RH catalytic converter.

2. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.

3. Remove the 6 nuts and the RH exhaust manifold.
- Discard the nuts and gasket.

4. Clean and inspect the RH exhaust manifold.

5. Remove and discard the 6 RH exhaust manifold studs.

6. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

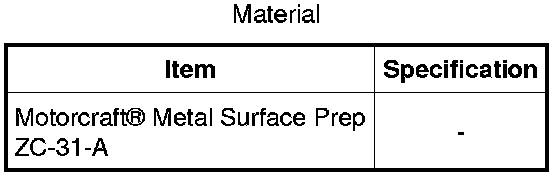

Clean the exhaust manifold mating surface of the cylinder head with metal surface prep. Follow the directions on the packaging.

Installation

1. Install 6 new RH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

2. NOTICE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Using a new gasket, install the RH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown:

- Stage 1: Tighten to 20 Nm (177 lb-in).

- Stage 2: Tighten to 25 Nm (18 lb-ft).





3. Connect the RH HO2S electrical connector.

4. Install the RH catalytic converter.
