Home >> Mercury >> 2009 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Torque Specifications

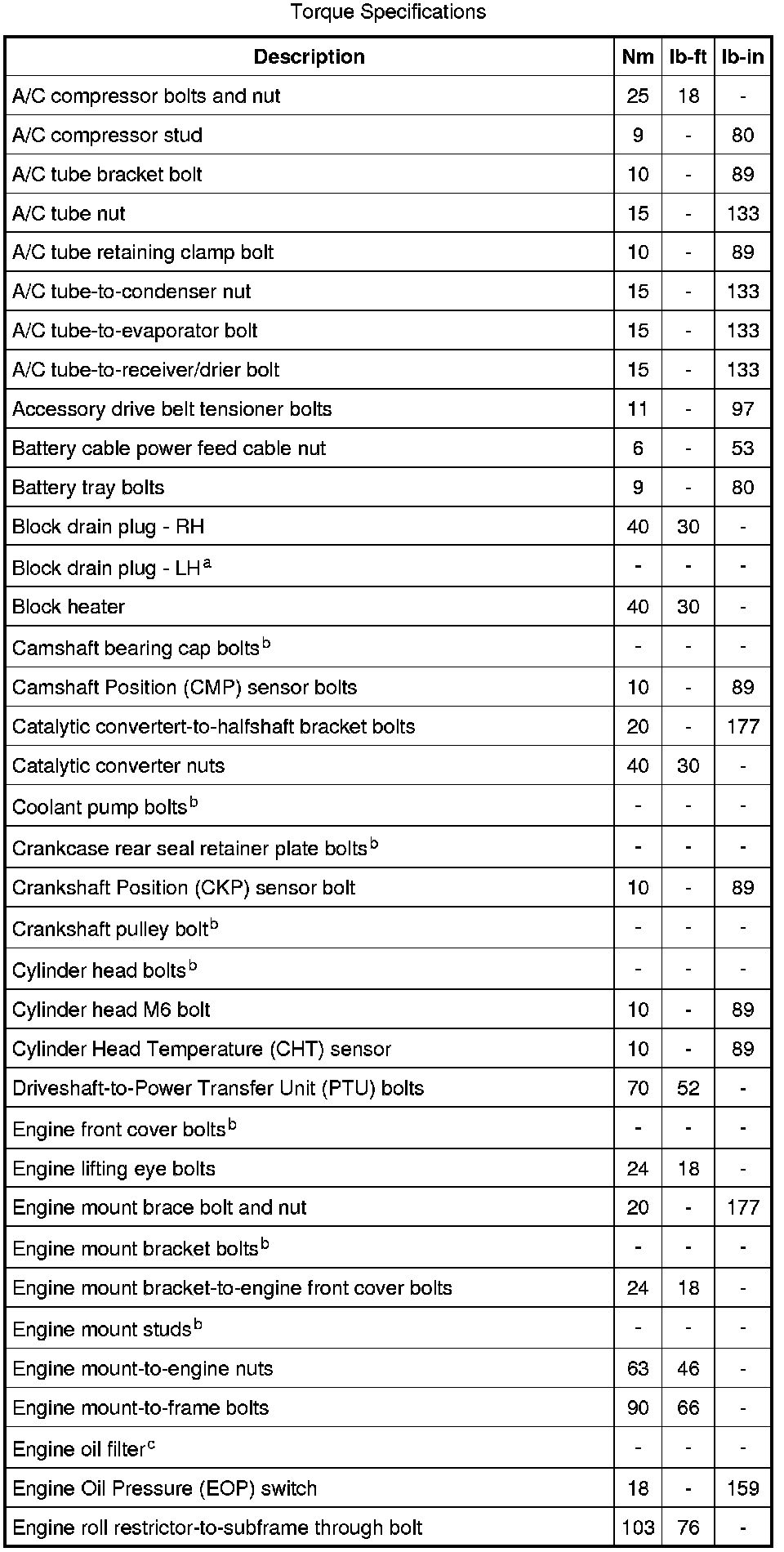

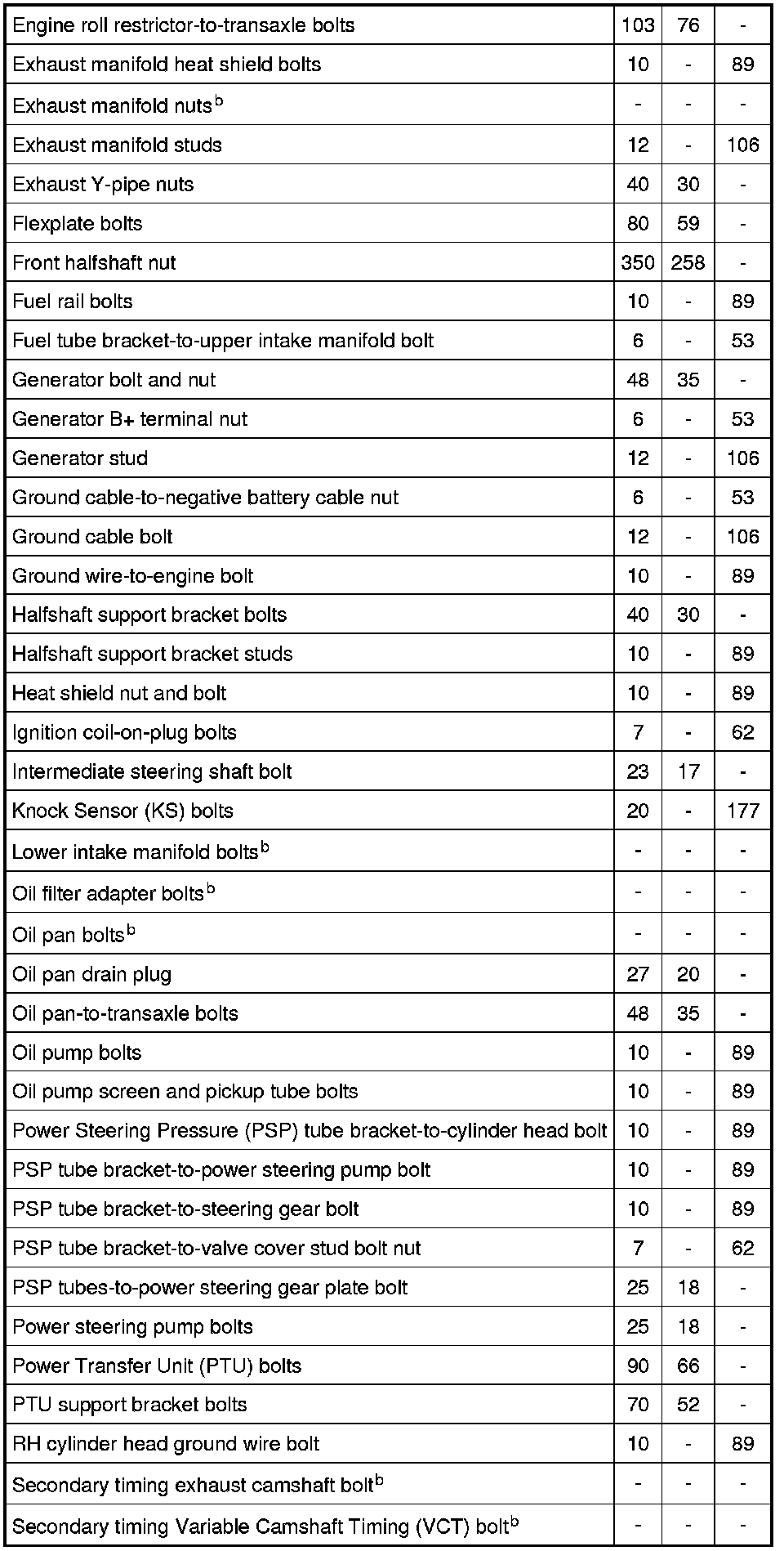

Torque Specifications

















a Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.

b Refer to the procedure.

c Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
