Removal and Replacement

Brake Master Cylinder

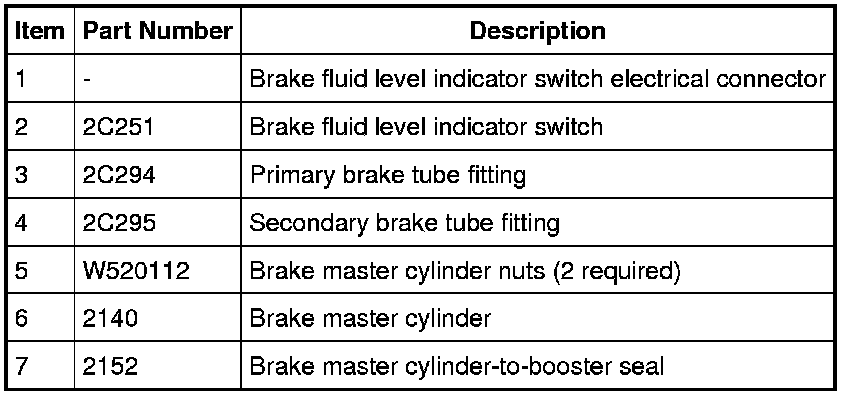

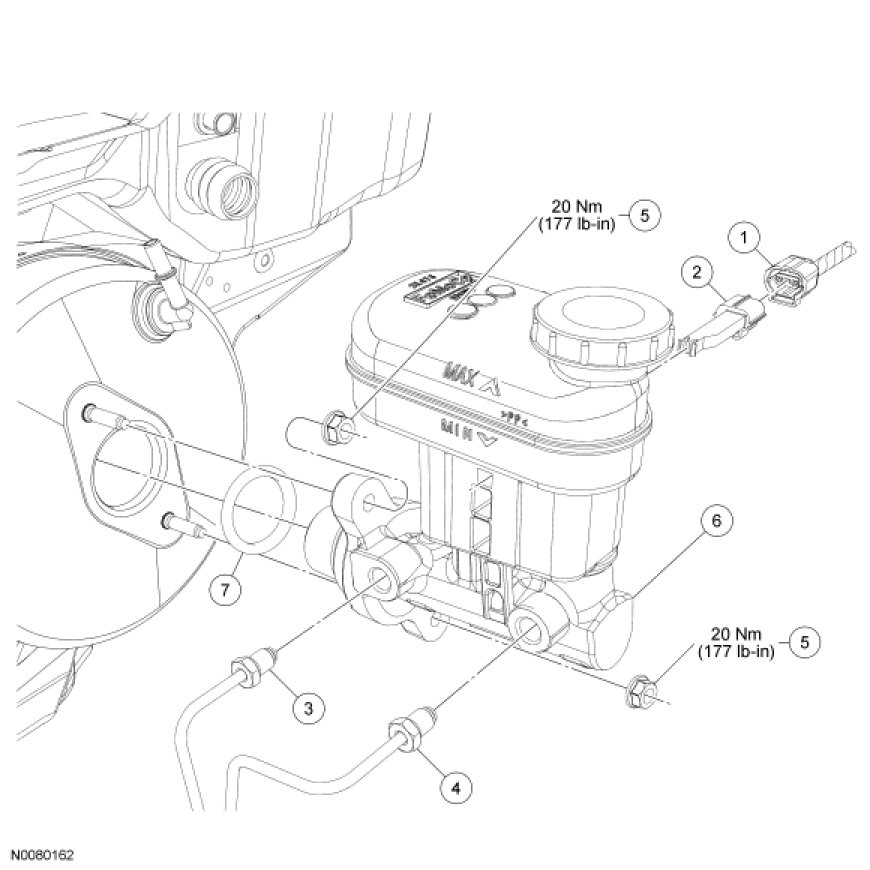

NOTE: ABS only shown, vehicles with ABS/stability assist and traction control similar.










Removal and Installation

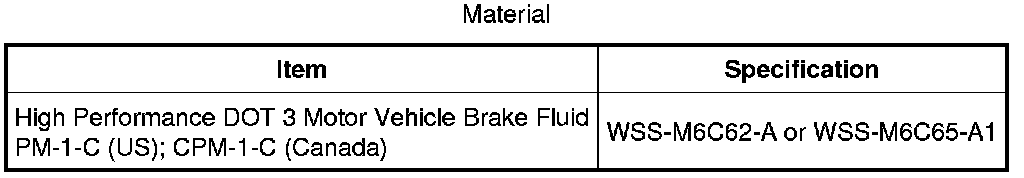

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

1. With the engine off, press the brake pedal several times to deplete the brake booster vacuum.

2. Remove the battery tray.

3. Remove the air cleaner assembly.

4. Use a suitable suction device to drain the brake master cylinder reservoir.

5. Disconnect the master cylinder brake fluid level indicator switch electrical connector.

6. Disconnect the brake tubes from the master cylinder.
- To install, tighten to 17 Nm (150 lb-in) on vehicles with ABS.

- To install, tighten to 22 Nm (16 lb-ft) on vehicles with ABS/stability assist and traction control.

- Cap the brake tubes and plug the master cylinder ports.

7. NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

Remove and discard the 2 brake master cylinder nuts and remove the brake master cylinder.
- To install, tighten the new nuts to 20 Nm (177 lb-in).

8. To install, reverse the removal procedure.
- Bleed the brake system.
