Inspection and Verification

Anti-Lock Control

Inspection and Verification

1. Verify the customer concern.

2. Verify the stoplamps operate correctly by pressing and releasing the brake pedal with the ignition switch in the ON position. If the stoplamps do not operate correctly, refer to Brake Lamp. If the stoplamps operate correctly, proceed to the next step. Testing and Inspection

3. Visually inspect for obvious signs of mechanical or electrical damage.

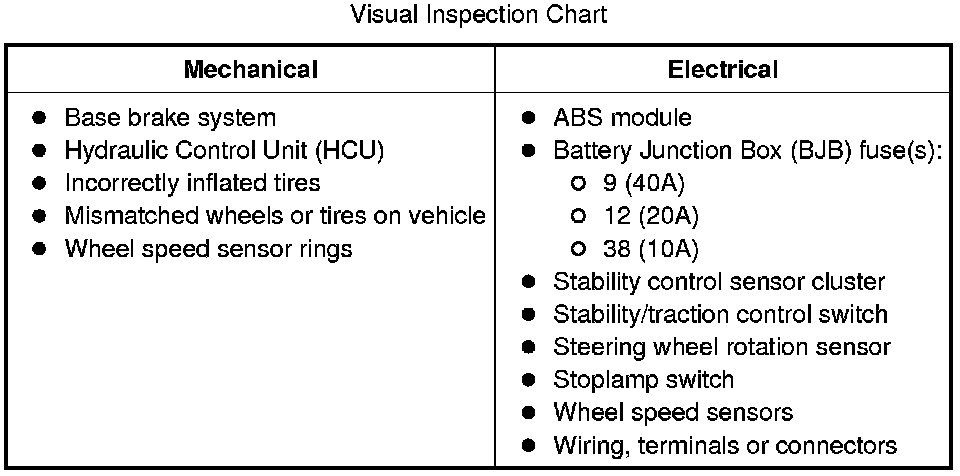

Visual Inspection Chart:

4. NOTE: Make sure to use the latest scan tool software release.

If the cause is not visually evident, connect the scan tool to the Data Link Connector (DLC).

5. NOTE: The Vehicle Communication Module (VCM) LED prove out confirms power and ground from the DLC are provided to the VCM.

If the scan tool does not communicate with the VCM:

- check the VCM connection to the vehicle.

- check the scan tool connection to the VCM.

- refer to Information Bus, No Power To The Scan Tool, to diagnose no power to the scan tool.

6. If the scan tool does not communicate with the vehicle:
- verify the ignition key is in the ON position.

- verify the scan tool operation with a known good vehicle.

- refer to Information Bus to diagnose no response from the PCM.

7. Carry out the network test.
- If the scan tool responds with no communication for one or more modules, refer to Information Bus.

- If the network test passes, retrieve and record Continuous Memory Diagnostic Trouble Codes (CMDTCs).

8. Clear all CMDTCs and carry out the self-test diagnostics for the ABS module.

9. If the DTCs retrieved are related to the concern, go to ABS Module DTC Chart or the Instrument Cluster (IC) DTC Chart. For all other DTCs, refer to Body Control Systems. ABS Module DTC Chart Instrument Cluster (IC) DTC Chart

10. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Symptom Related Diagnostic Procedures
