Trunk / Liftgate Position Sensor: Service and Repair

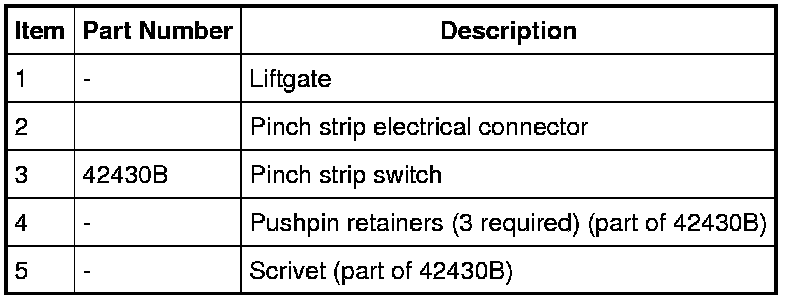

Pinch Strip Switch

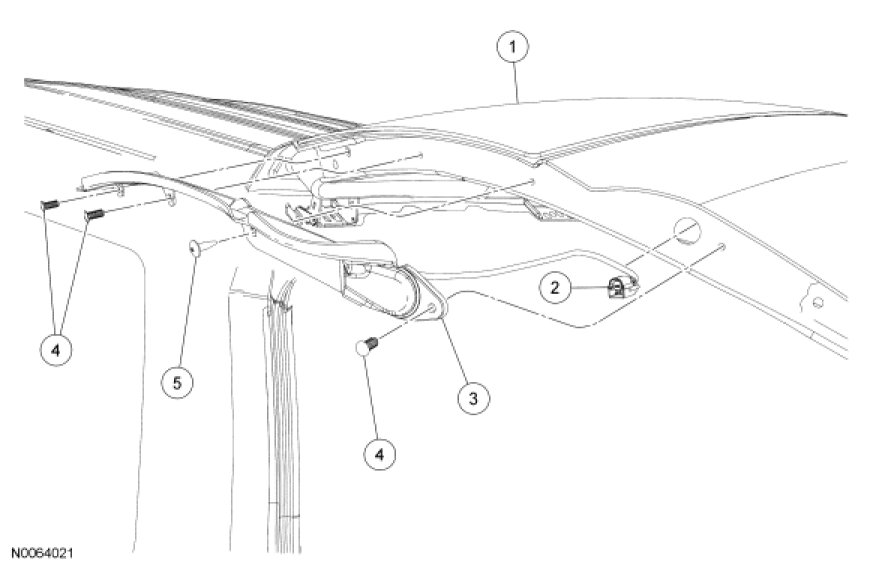

NOTE: Left side shown, right side similar.










Removal and Installation

1. Remove the liftgate trim panel.

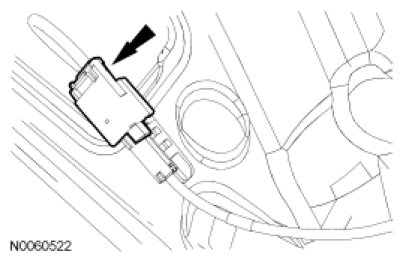

2. Disconnect the pinch strip electrical connector.





3. Remove the pinch strip.

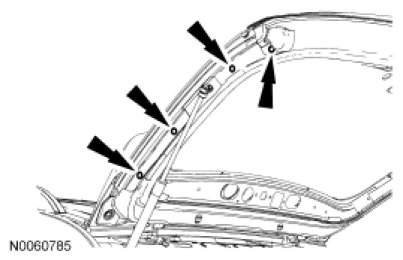

- Remove the pin-type retainers.

- Remove the grommet and route the harness out of the vehicle.





4. To install, reverse the removal procedure.
