Interior Trim - Exploded View

Interior Trim - Exploded View

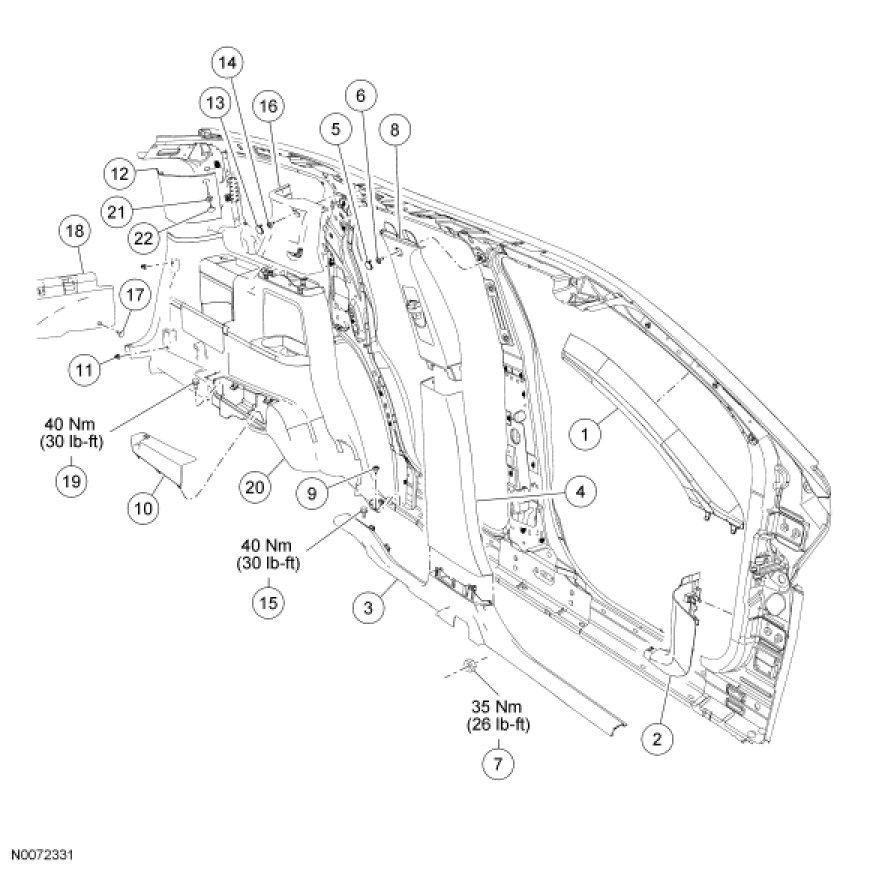

Taurus, Sable

NOTE: LH shown, RH similar.

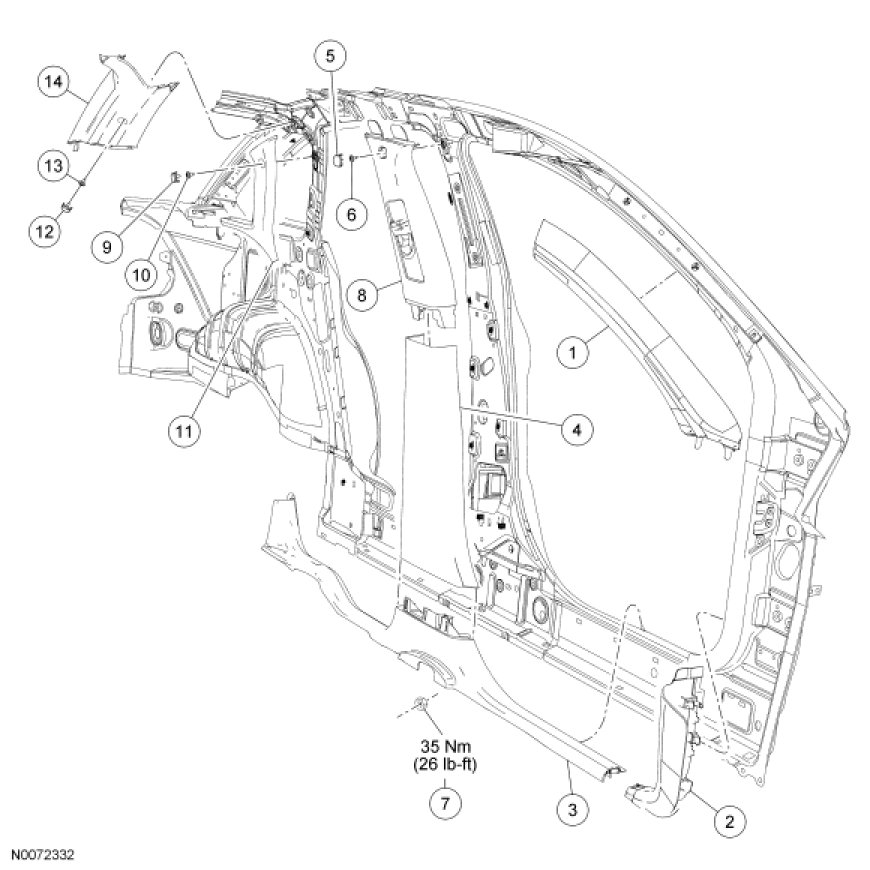

Taurus X

NOTE: Vehicle without power liftgate shown, vehicle with power liftgate similar.

NOTE: LH shown, RH similar.










1. For additional information, refer to the procedures.
