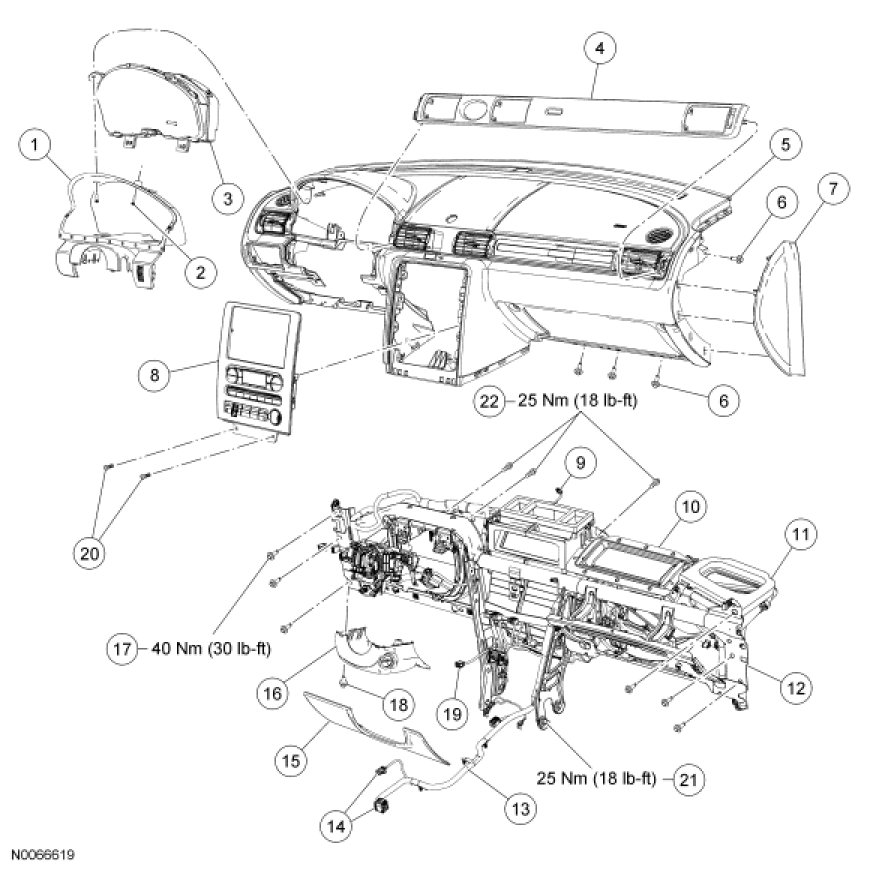

Instrument Panel - Exploded View




Instrument Panel - Exploded View

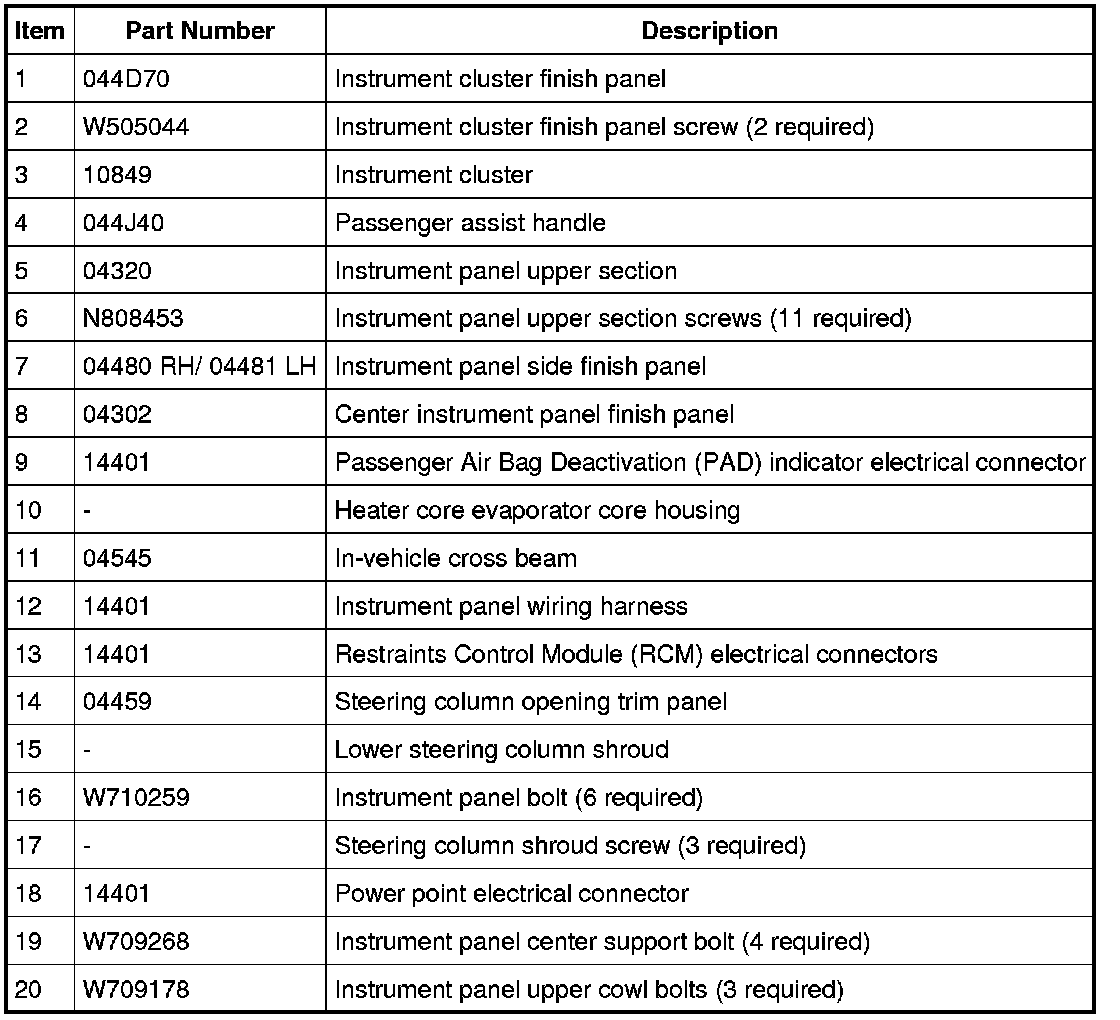

Taurus, Sable

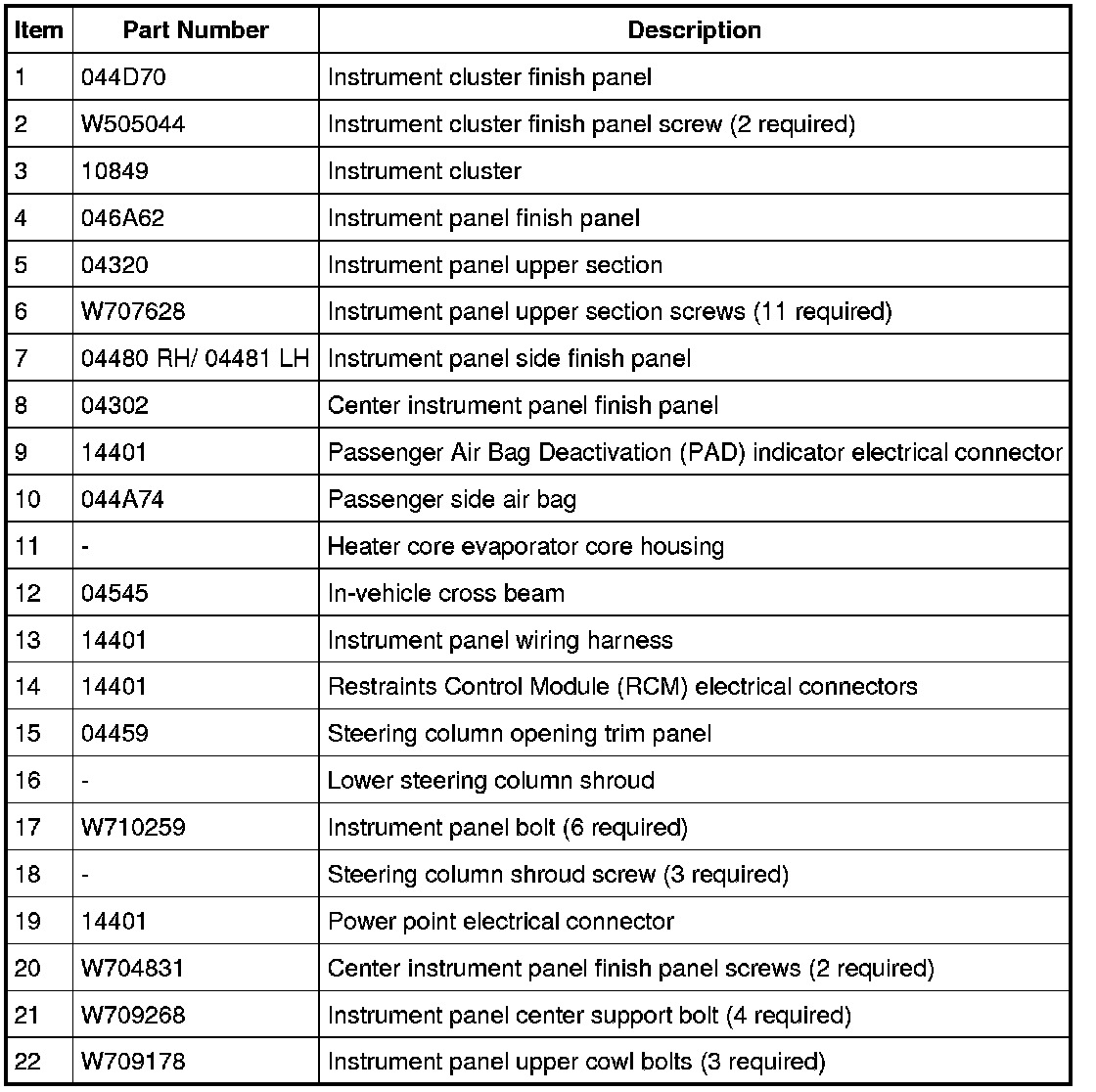

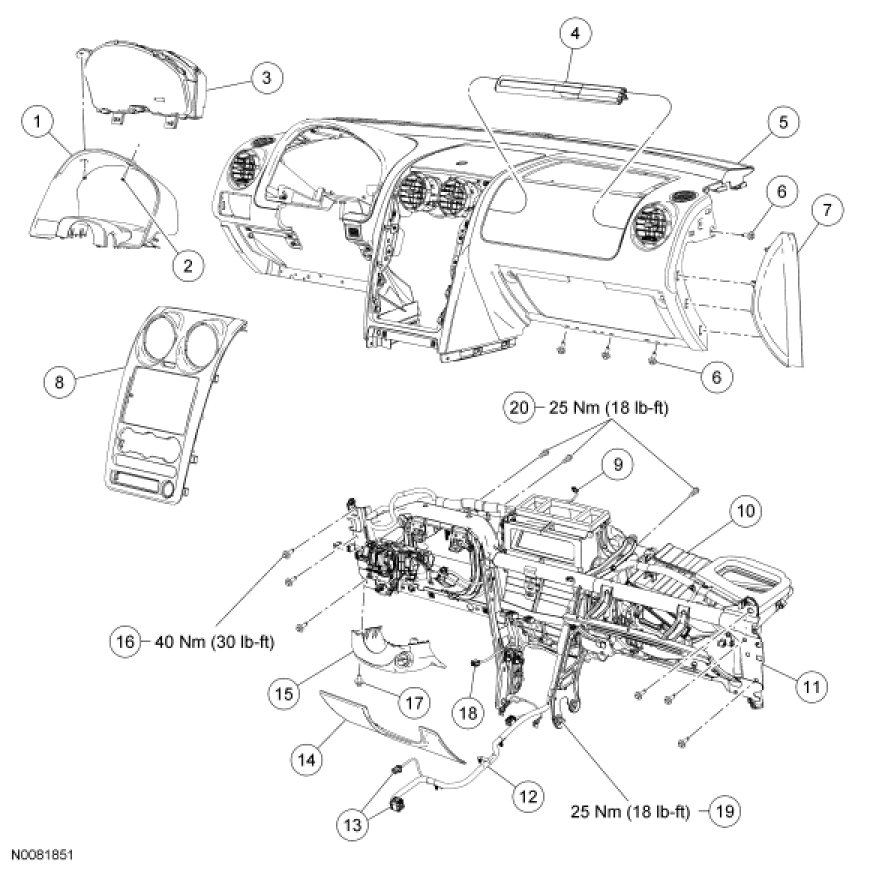

Taurus X









1. For additional information, refer to the procedures.
