Console - Rear, Floor

Console - Rear, Floor









Removal and Installation

1. Fold and tilt the second row seats forward.

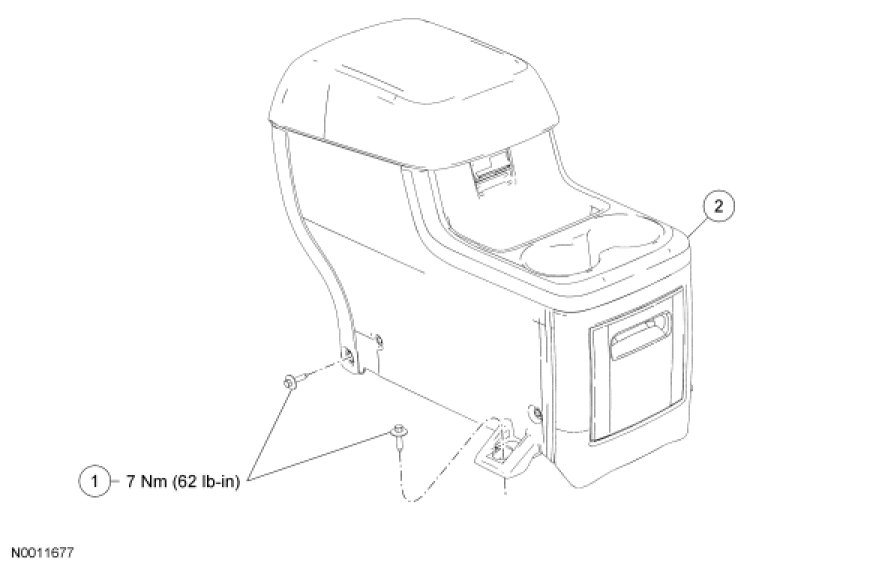

2. Remove the 4 rear floor console bolts.
- To install, tighten to 7 Nm (62 lb-in).

3. Remove the rear floor console.

4. To install, reverse the removal procedure.
