Console - Front, Floor

Console - Front, Floor









Removal and Installation

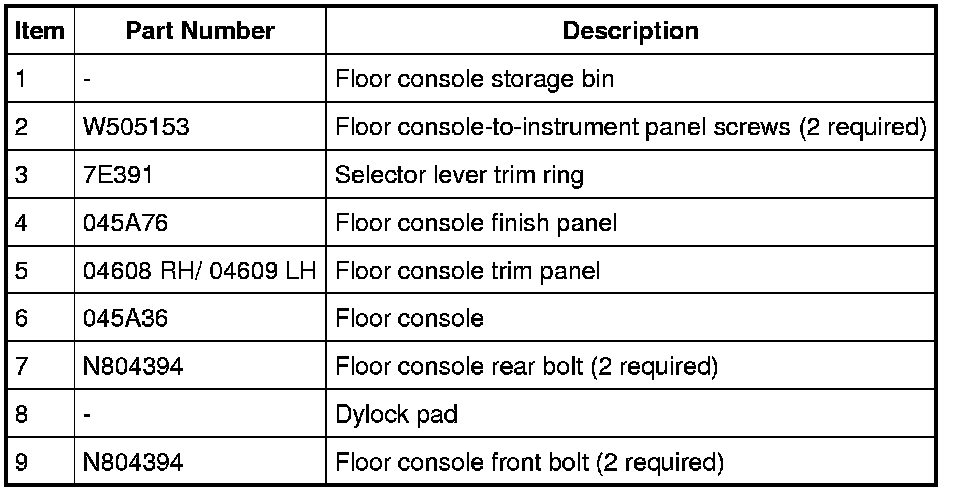

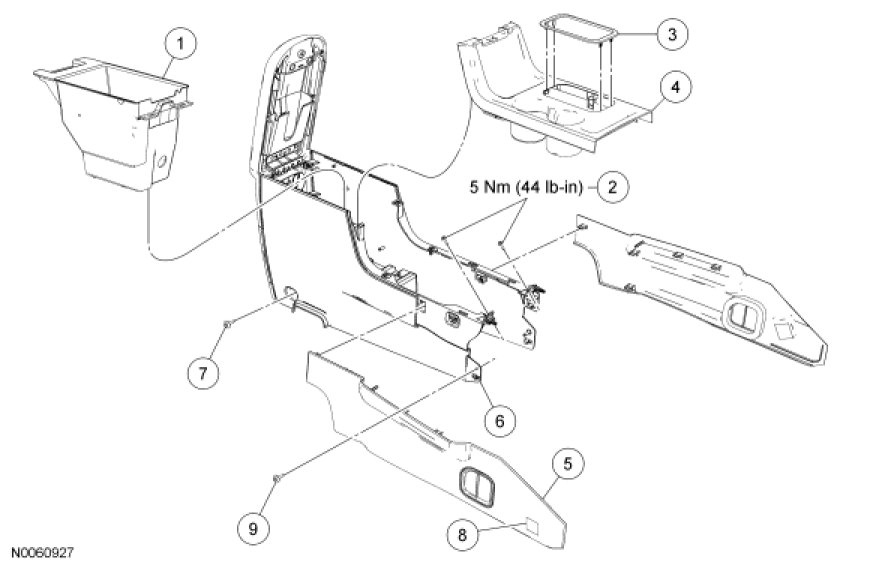

NOTE: Taurus X shown, Taurus and Sable similar.

1. Remove the selector lever trim ring.

2. Remove the floor console finish panel.

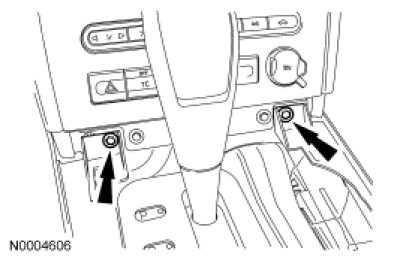

3. Remove the 2 floor console-to-instrument panel screws.
- To install, tighten to 5 Nm (44 lb-in).





4. Remove the floor console LH and RH trim panels.
- To install, apply 110 Nm (81 lb-ft) of force to the Dylock pad area in the front of the panel.

5. Remove the 2 floor console front bolts.

6. Position the front seats forward.

7. Remove the 2 floor console rear bolts.

8. Position the front seats rearward.

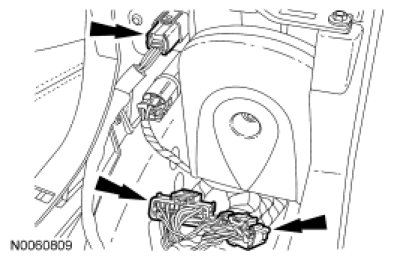

9. Disconnect the 3 electrical connectors.





10. Remove the floor console.

11. To install, reverse the removal procedure.
