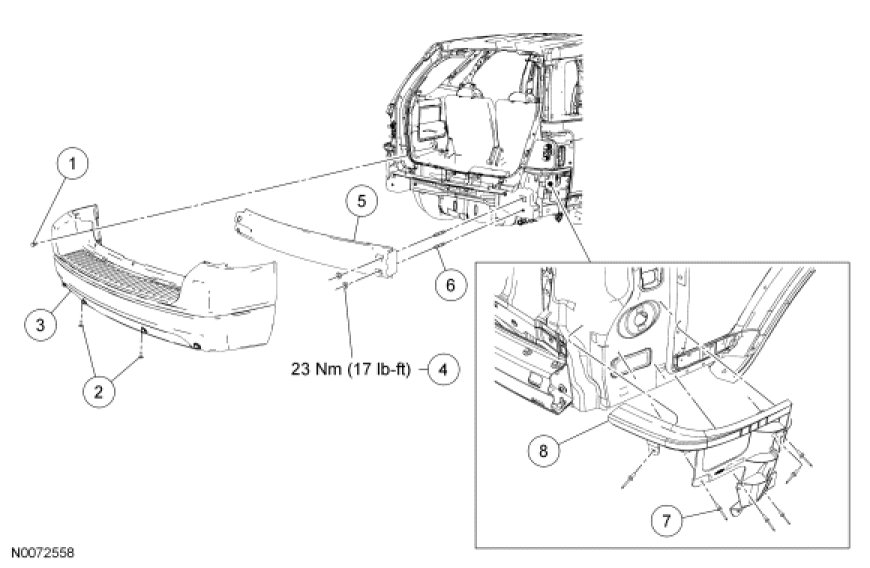

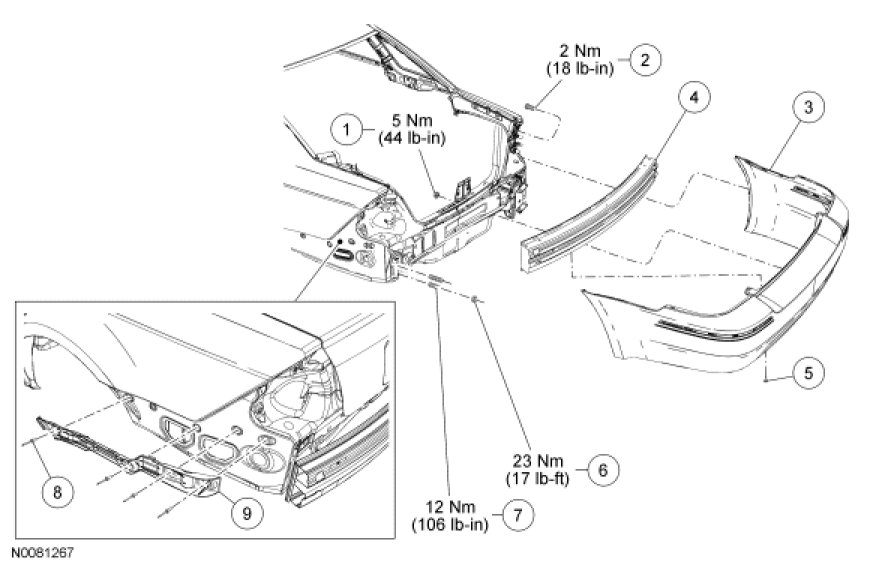

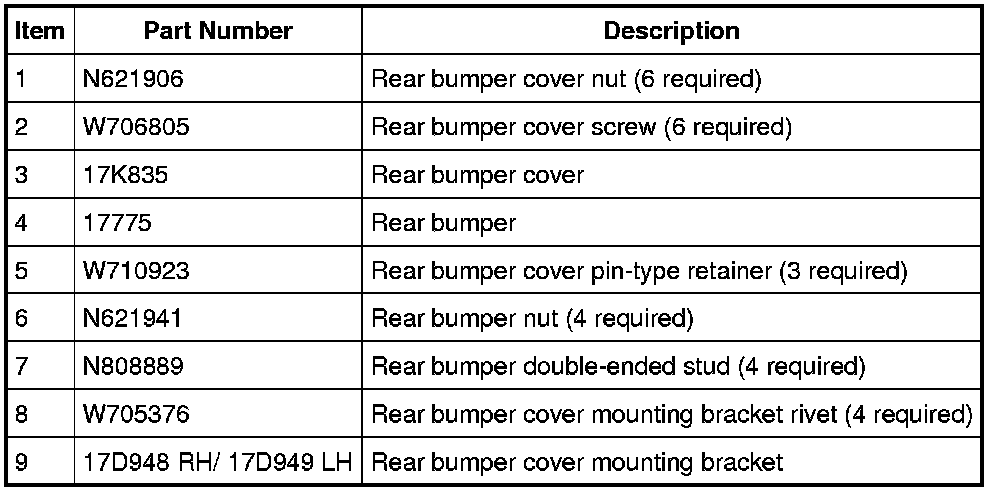

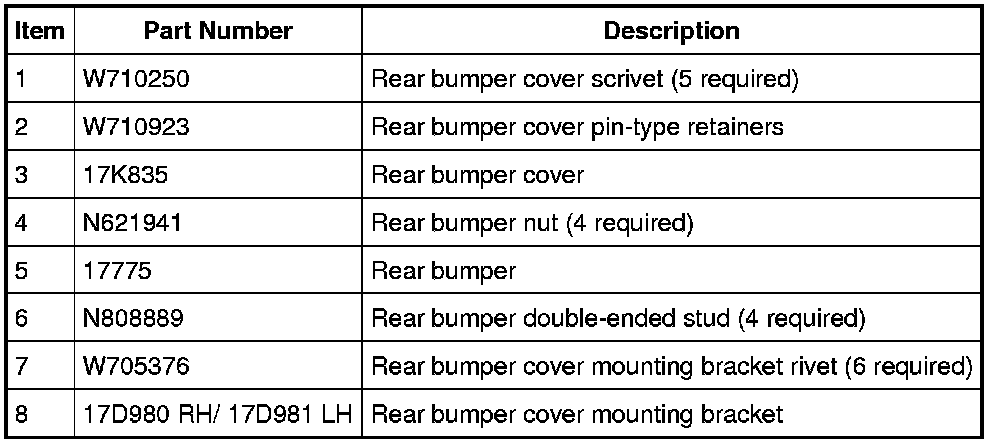

Bumper - Exploded View, Rear




Bumper - Exploded View, Rear

NOTE: Taurus shown, Sable similar












Taurus X









1. For additional information, refer to the procedures.
