Entertainment System Control Panel: Service and Repair

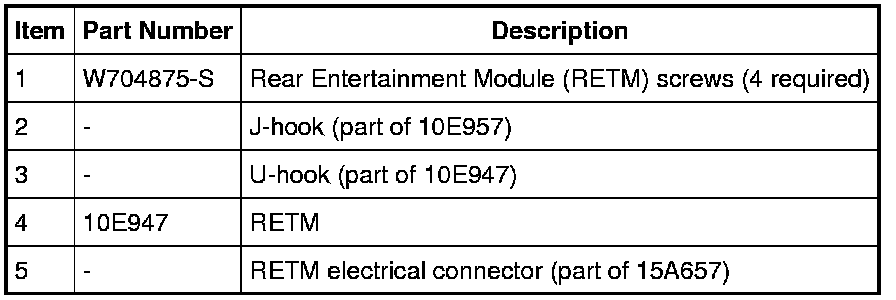

Rear Entertainment Module (RETM)

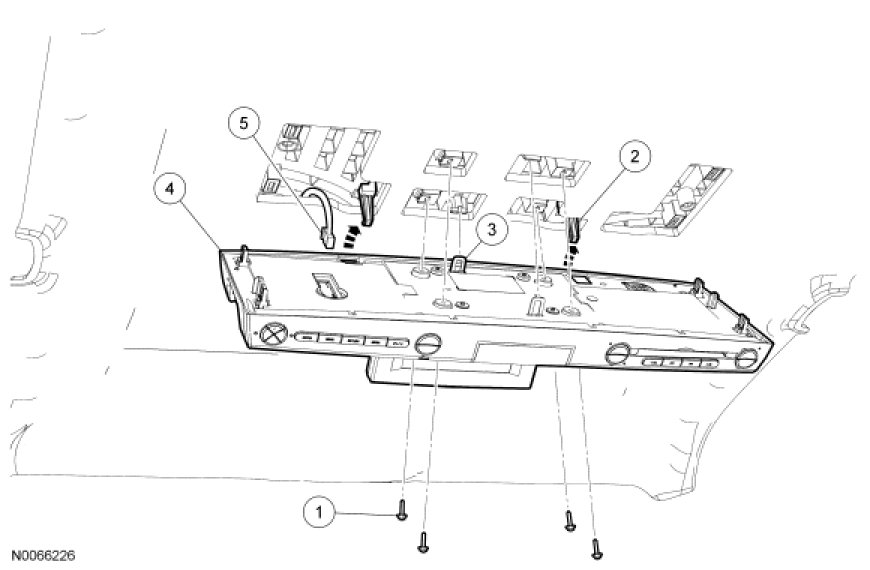

Removal

NOTE: Programmable Module Installation (PMI) only needs to be carried out if the Rear Entertainment Module (RETM) is being replaced.

1. Upload the RETM configuration to the scan tool.

2. NOTE: Open the display.

Remove the 4 screws.

3. Remove the RETM.
- Pull down on the sides of the RETM to disengage the clips from the bracket.

- Using a suitable tool, push the rear most U-hook forward and release the U-hooks.

- Hang the RETM on the J-hooks and disconnect the electrical connector.

- Remove the RETM from the J-hooks.

Installation

1. Hang the RETM on the J-hooks.

2. Connect the electrical connector.

3. Remove the RETM from the J-hooks.

4. NOTE: Tilt the RETM, as necessary, to align it correctly.

Align the left side guide pin with the left side locating hole.

5. Lift up the right side of the RETM and engage the U-hooks.

6. Install the 4 screws.

7. Push on the left and right sides of the RETM to engage the clips.

8. Download the RETM configuration from the scan tool.
