Arm/Disarm Switch: Service and Repair

Door Disarm Switch

Removal and Installation

1. Remove the LH front door trim panel.

2. Position the watershield aside.

3. Disconnect the latch lever from the LH door lock cylinder.

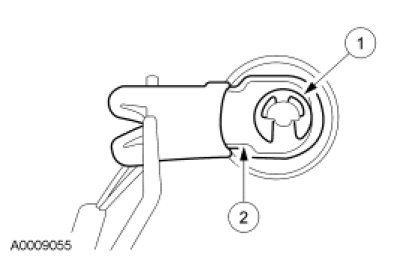

1. Remove the E-clip.

2. Disconnect the latch lever.





4. NOTE: The door disarm switch can be installed in more than one position. Before removing the switch from the door lock cylinder, it may be necessary to mark the position of the switch in relation to the door lock cylinder.

Remove the door disarm switch.

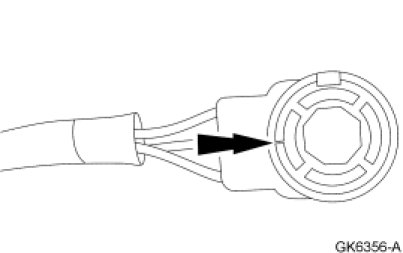

- Disconnect the electrical connector.





5. NOTE: The door disarm switch can be installed in more than one position. Use the reference marks applied in the removal step to align the new door disarm switch to the door lock cylinder.

To install, reverse the removal procedure.
