A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0645
>>
PC/ED
PC/ED
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

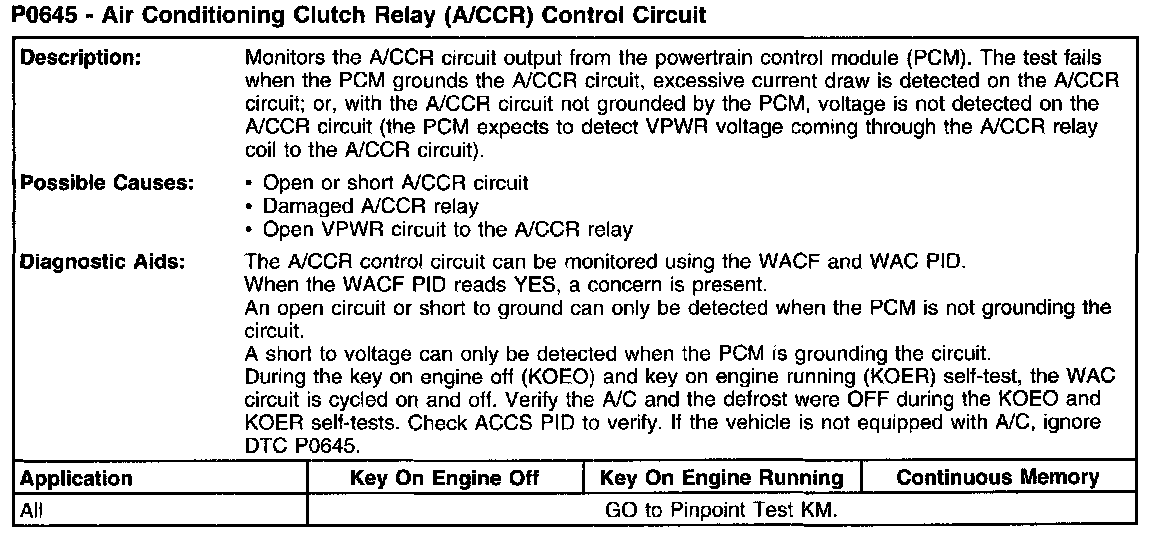

P0645 - Air Conditioning Clutch Relay (A/CCR) Control Circuit:
