Mercury
>>
2009
>>
Sable FWD V6-3.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
P Codes
>>
P052C
P052C
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

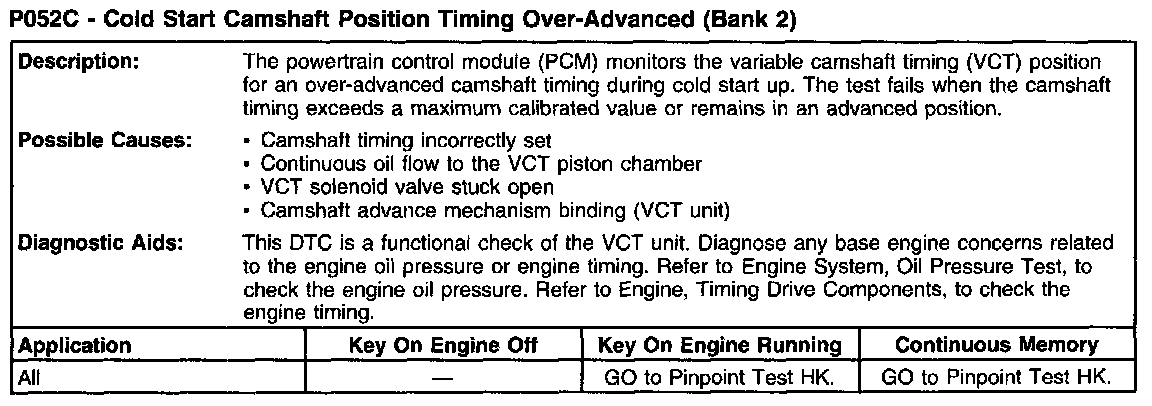

P052C - Cold Start Camshaft Position Timing Over-Advanced (Bank 2):
