P0507
P0507
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

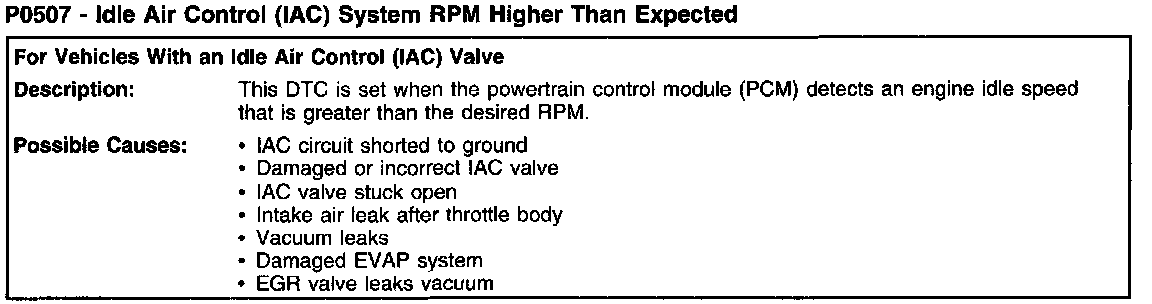

P0507 - Idle Air Control (IAC) System RPM Higher Than Expected (Part 1):

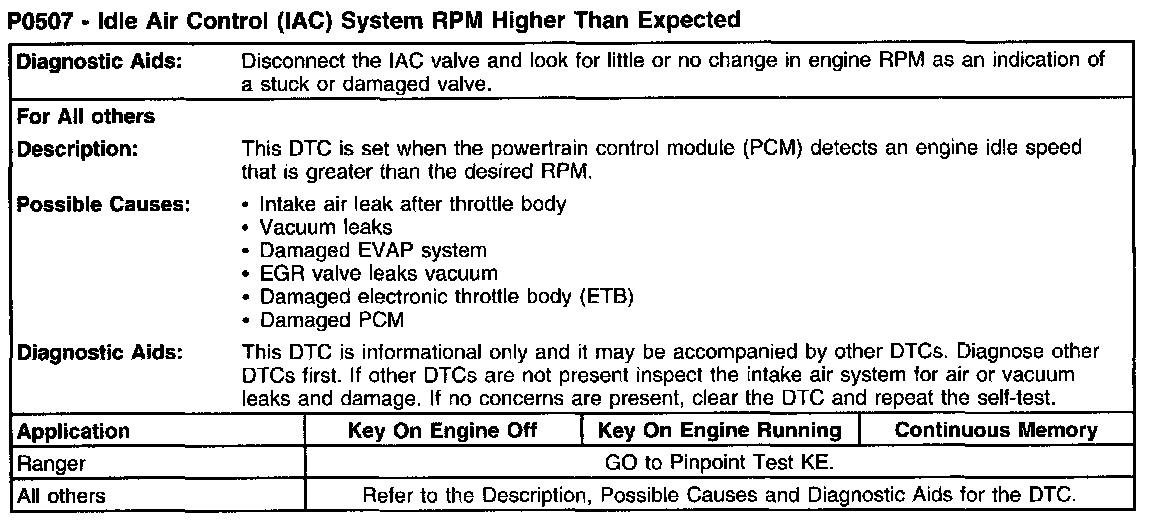

P0507 - Idle Air Control (IAC) System RPM Higher Than Expected (Part 2):
