A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
P Codes
>>
P0340
P0340
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

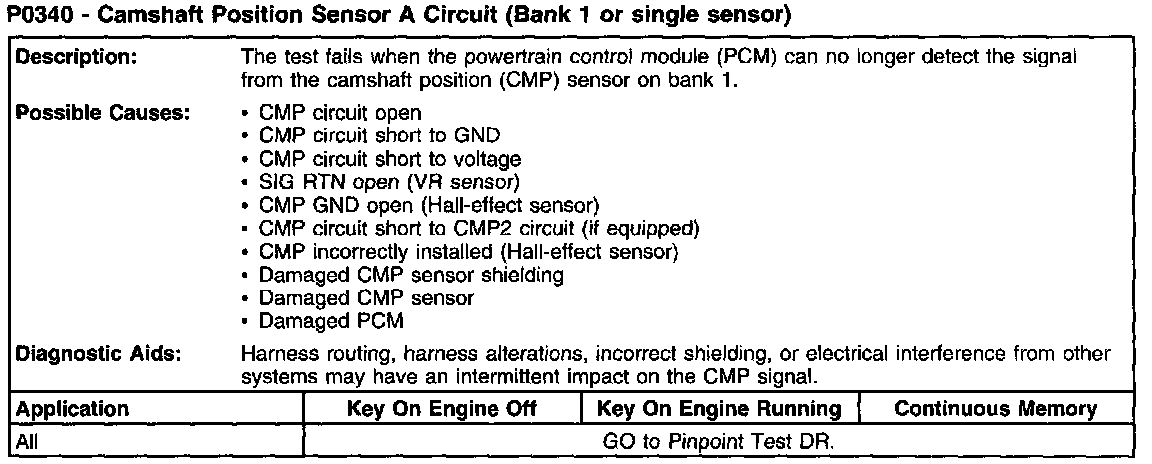

P0340 - Camshaft Position Sensor A Circuit (Bank 1 or single sensor):
