A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
P Codes
>>
P0114
P0114
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

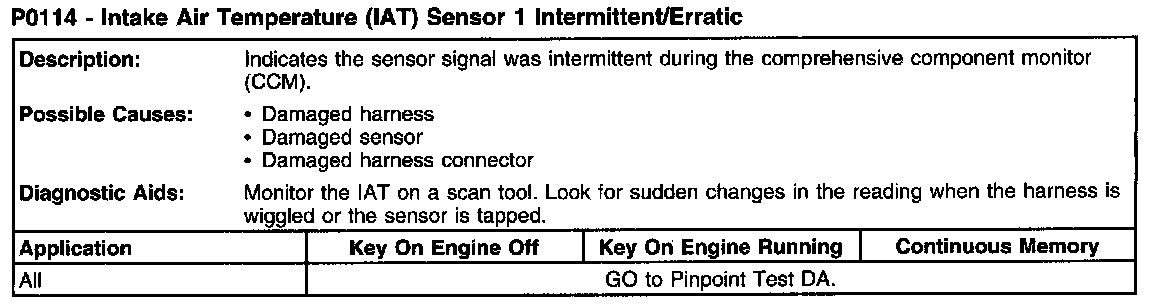

P0114 - Intake Air Temperature (IAT) Sensor 1 Intermittent/Erratic:
