Removal and Replacement

Driveshaft

Driveshaft

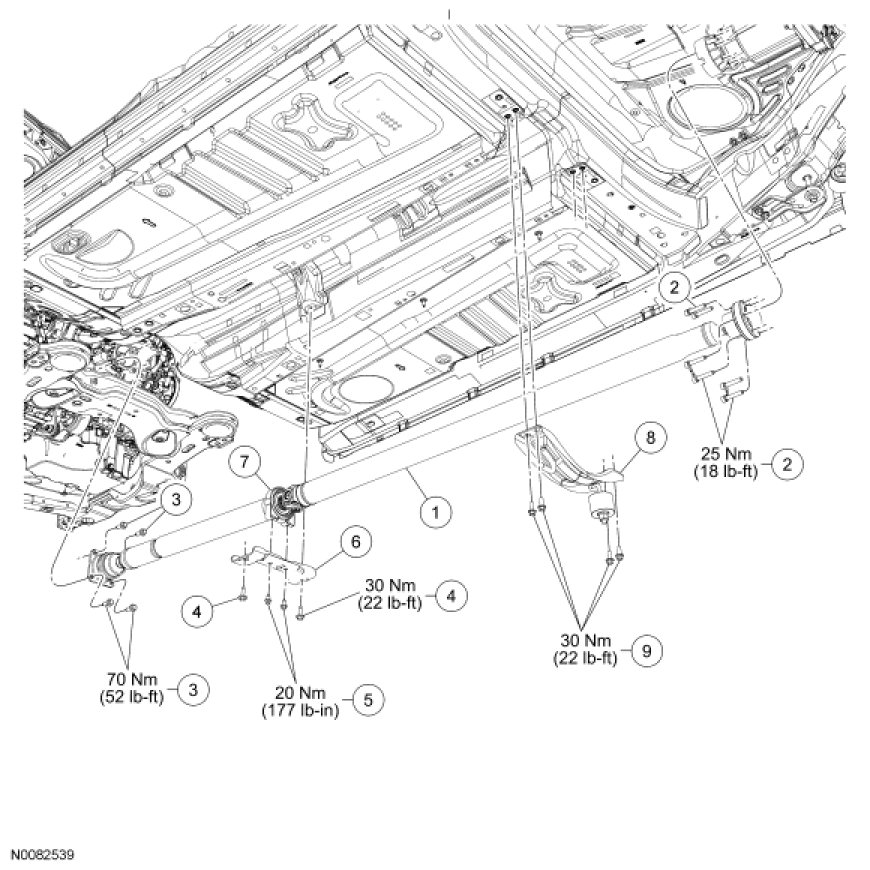

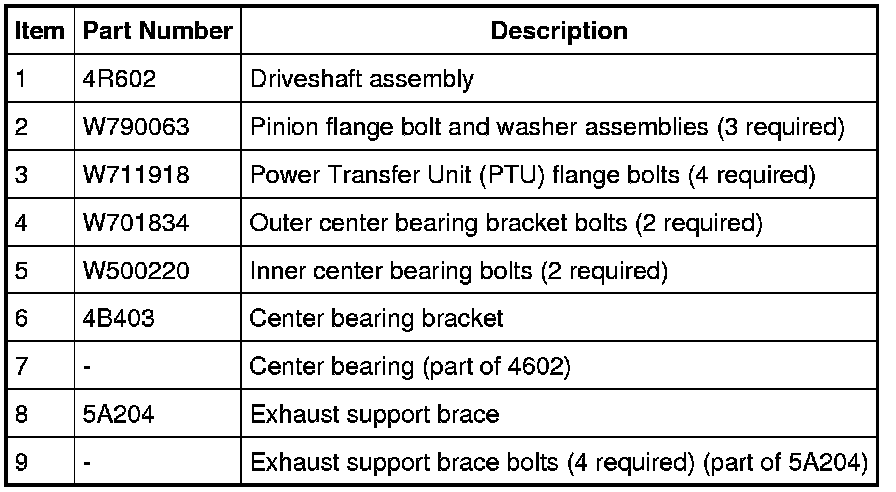

Removal and Installation

NOTE: Index-mark both driveshaft flanges.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the muffler and tailpipe.

3. Remove the 4 exhaust support brace bolts and the exhaust brace.
- To install, tighten to 30 Nm (22 lb-ft).

4. NOTICE: Do not reuse the bolt and washer assemblies for the rear constant velocity (CV) joint flange. Install new assemblies or damage to the vehicle may occur.

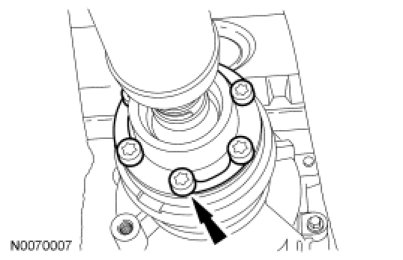

Remove and discard the 3 pinion flange bolt and washer assemblies.

- To install, tighten to 25 Nm (18 lb-ft).

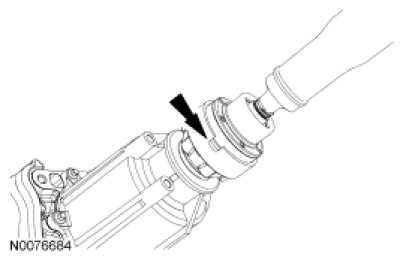

5. Separate the driveshaft CV flange from the Rear Drive Unit (RDU) flange using a flat-blade screwdriver in the area shown.





6. NOTICE: Do not reuse the constant velocity (CV) joint bolts. Install new bolts or damage to the vehicle may occur.

Remove and discard the 4 driveshaft-to-Power Transfer Unit (PTU) flange bolts.

- To install, tighten to 70 Nm (52 lb-ft).

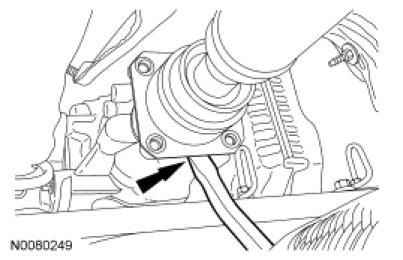

7. Using a suitable prybar as shown, separate the driveshaft flange from the PTU flange.

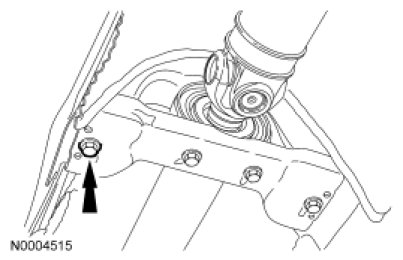

8. With the help of an assistant, remove the 2 outer center bearing bracket bolts and the driveshaft.
- To install, tighten to 30 Nm (22 lb-ft).





9. If necessary, remove the 2 inner center bearing bolts and remove the bracket.
- To install, tighten to 20 Nm (177 lb-in).

10. NOTE: If a driveshaft is installed and driveshaft vibration is encountered after installation, index the driveshaft.

To install, reverse the removal procedure.
