Diagnosis by Symptom Index

6F50

Diagnosis By Symptom





The Diagnostic Routines give the technician diagnostic information, direction and suggest possible components, using a symptom as a starting point.

The Diagnostic Routines are divided into 2 categories: Electrical Routines, indicated by 200 series numbers, and Hydraulic/Mechanical Routines, indicated by 300 series numbers. The Electrical Routines list the possible electrical components that could cause or contribute to the symptom described. The Hydraulic/Mechanical Routines list the possible hydraulic or mechanical components that could cause or contribute to the symptom described.


Diagnosis by Symptom Index

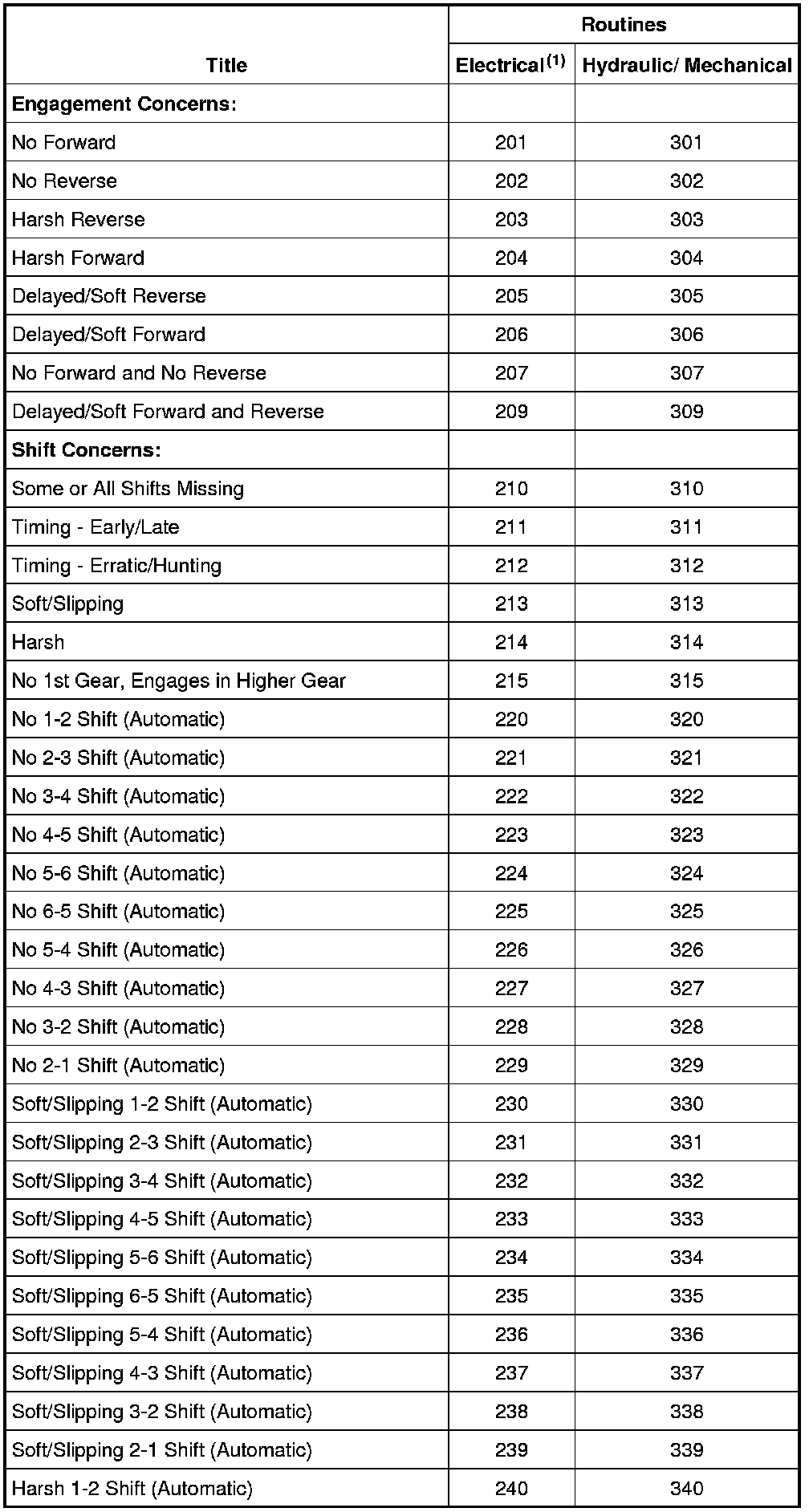

Diagnosis By Symptom (Part 1):

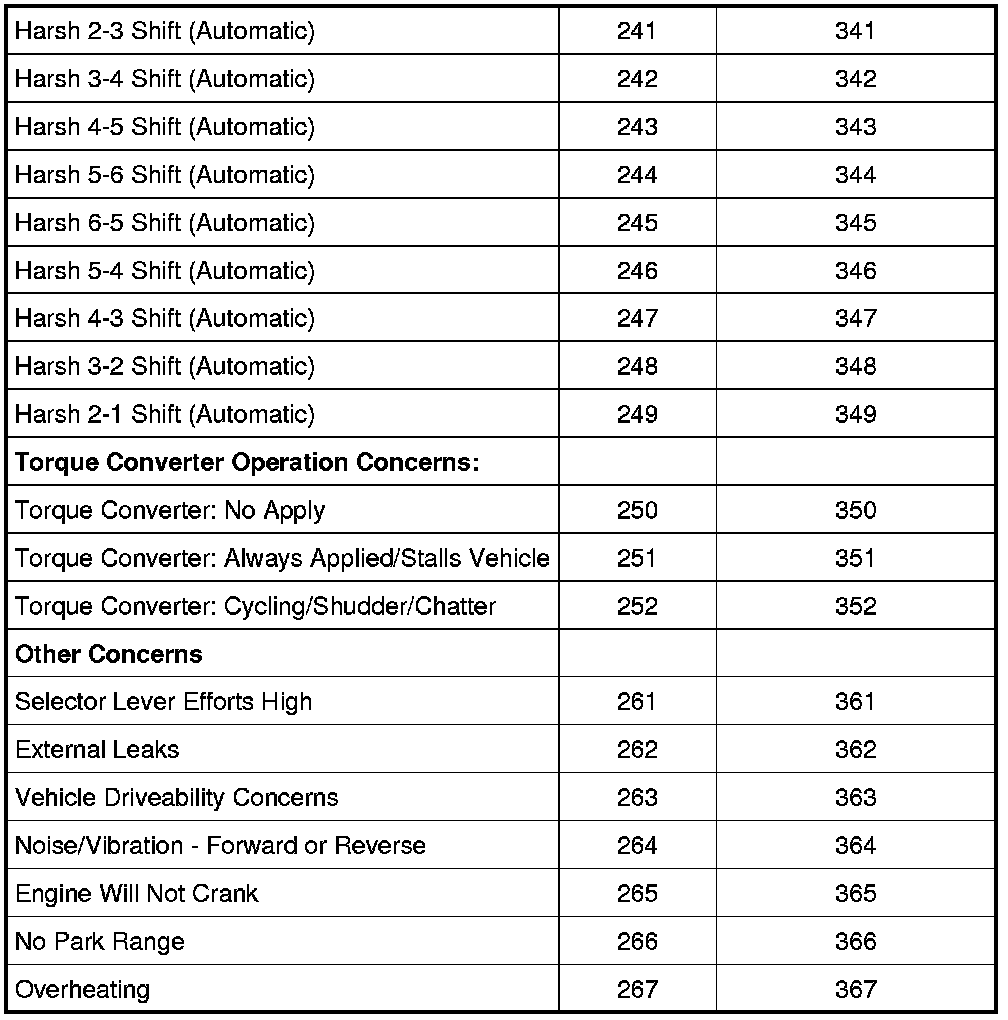

Diagnosis By Symptom (Part 2):

(1) Carry out electrical routine first.
