Electrical Connectors

External Controls

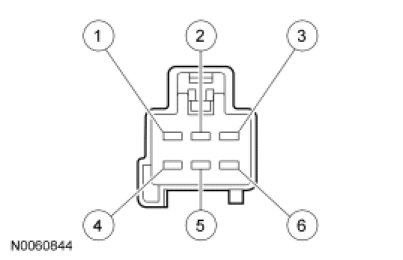

Electrical Connectors

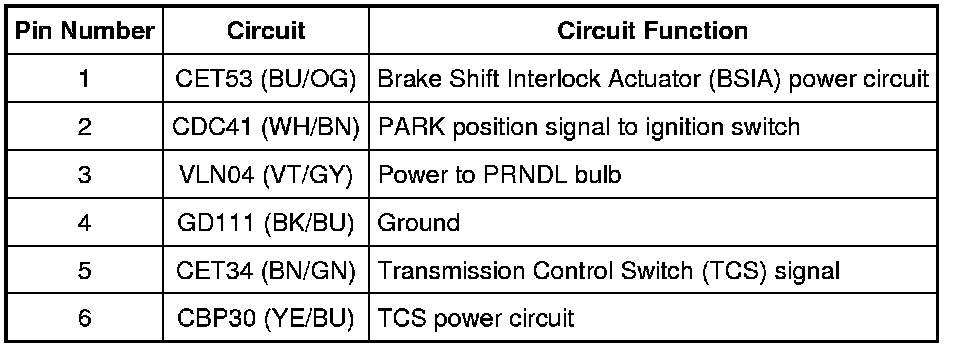

Selector Lever Harness C3245 (Vehicle Harness Side)

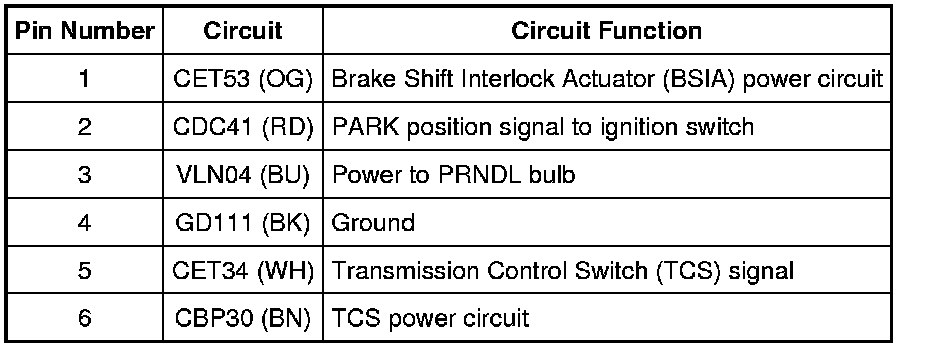

Selector Lever Harness C3245 (Component Side)
