Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

6F50

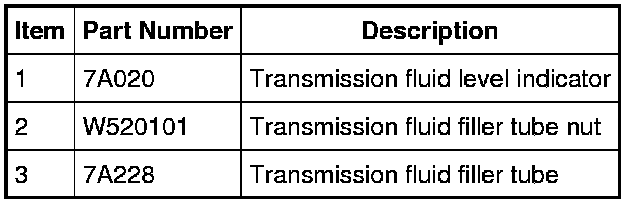

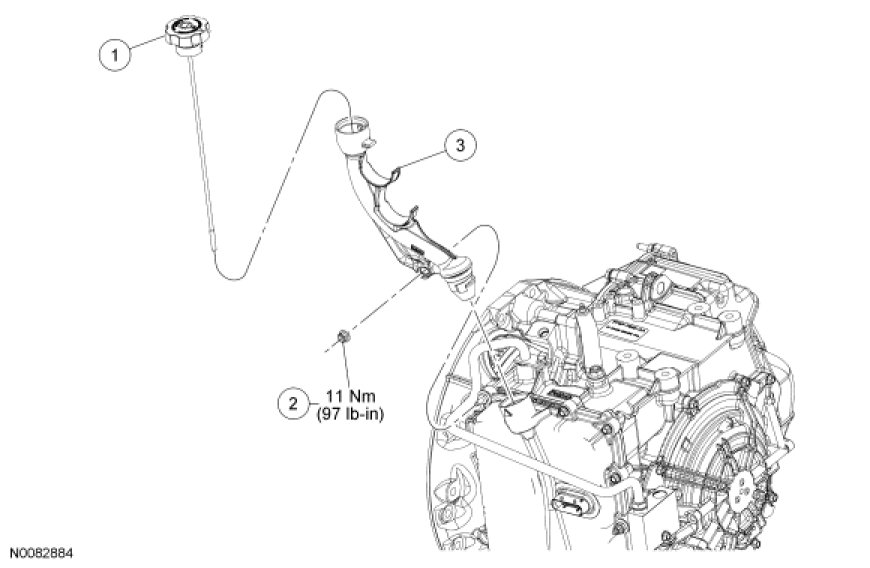

Transaxle Filler Tube









Removal

1. Position aside the coolant hoses from the transmission fluid filler tube.





2. NOTE: Coolant hoses removed for clarity.

Remove the transmission fluid level indicator.





3. NOTE: Coolant hoses removed for clarity.

Remove the nut, rotate the transmission fluid filler tube counterclockwise 90 degrees and remove the transmission fluid filler tube.





Installation

1. NOTE: Coolant hoses removed for clarity.

Install the transmission fluid filler tube and the nut.

- Tighten to 11 Nm (97 lb-in).





2. NOTE: Coolant hoses removed for clarity.

Install the transmission fluid level indicator.





3. Route the coolant hoses to their position on the transmission fluid filler tube.
