Suspension: Service and Repair

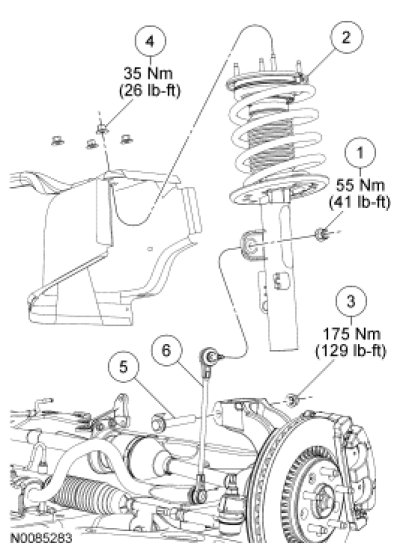

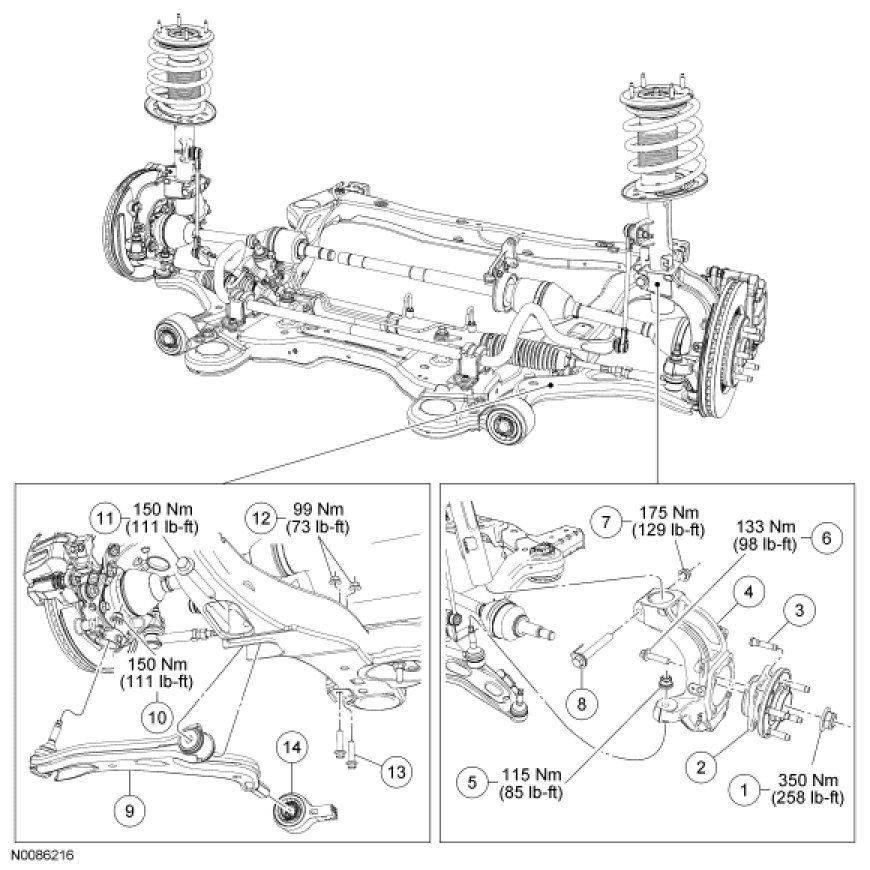

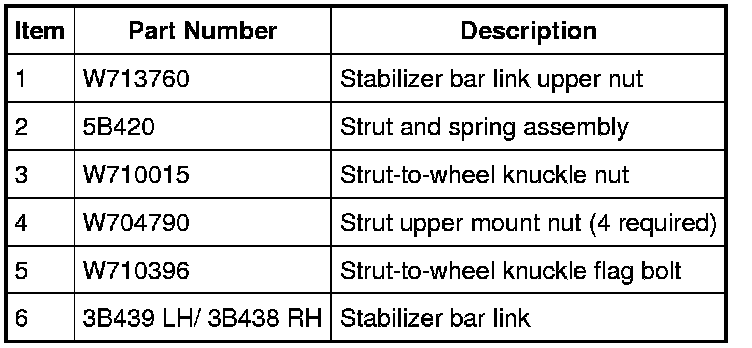

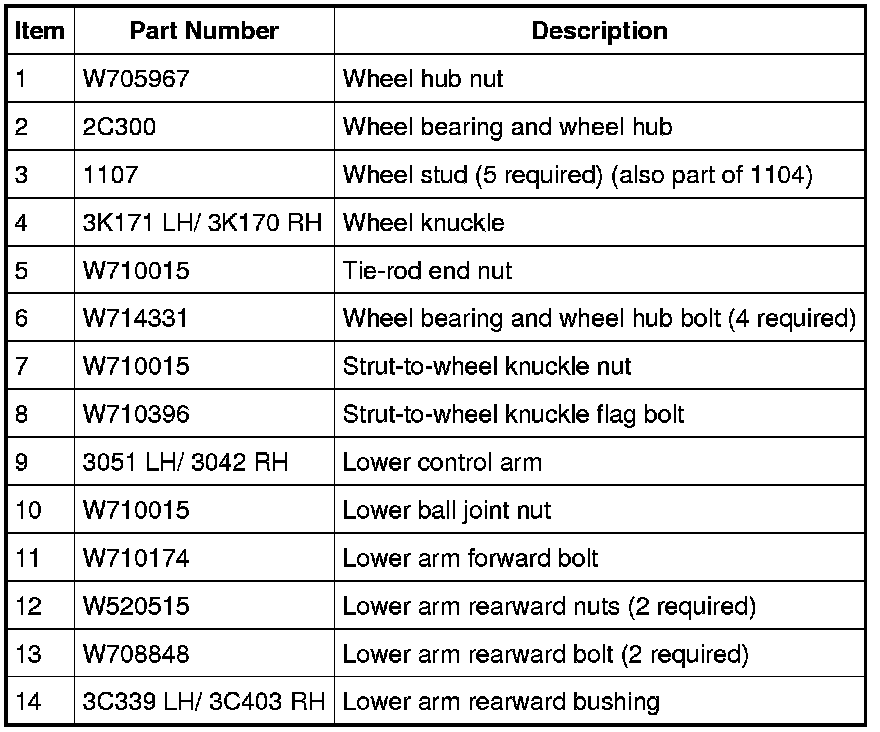

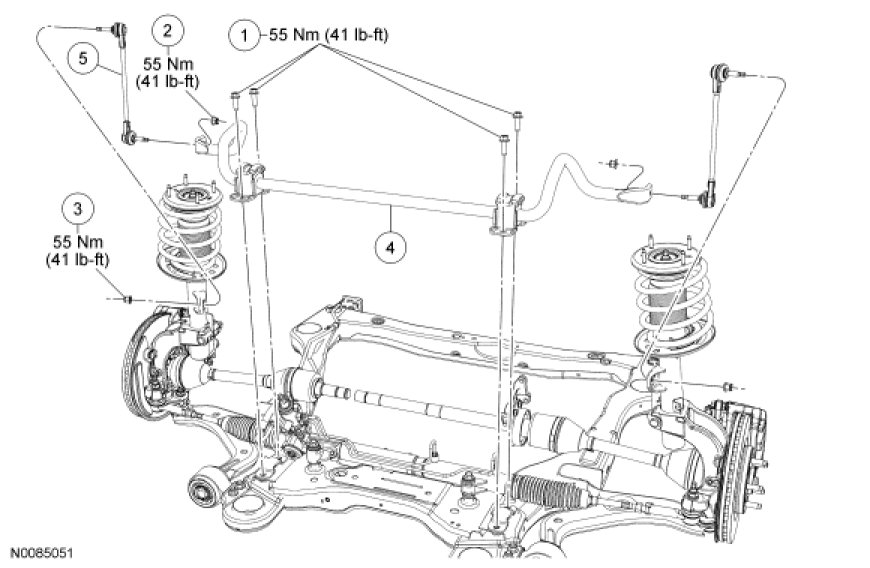

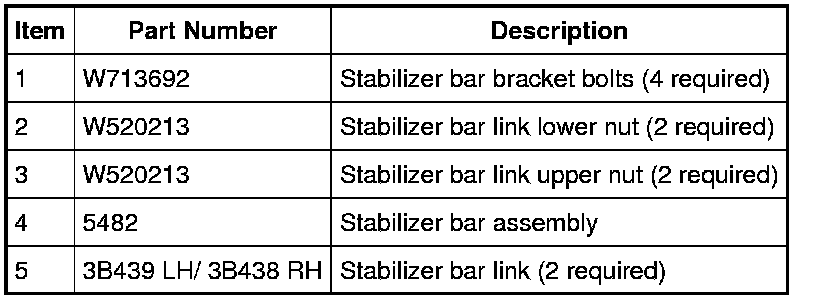

Front Suspension - Exploded View





























1. For additional information, refer to the procedures.
