Courtesy Lamp: Service and Repair

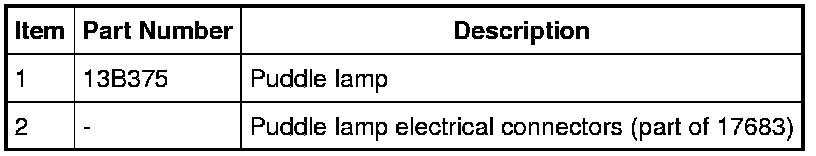

Puddle Lamp









Removal and Installation

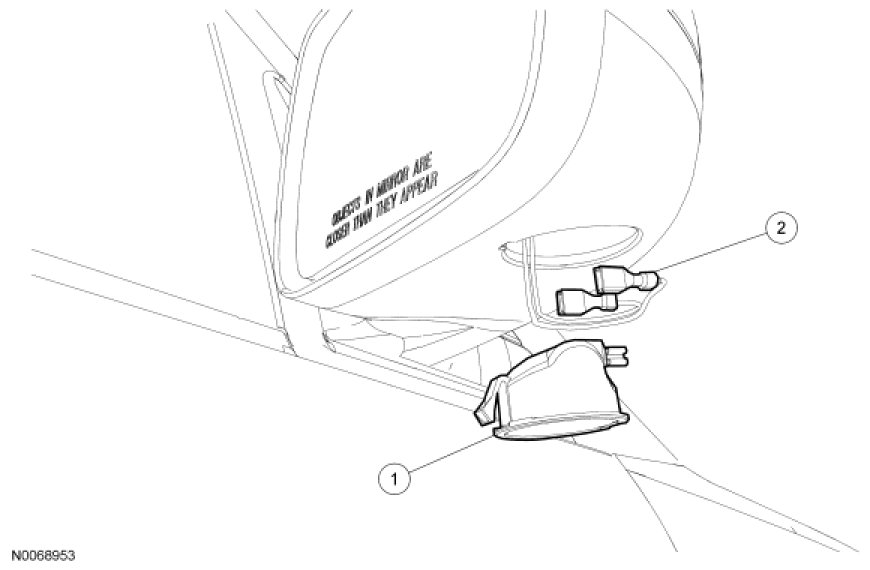

1. NOTE: Use a plastic thin flat-bladed tool to release the tab.

Release the tab and remove the puddle lamp.

- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
