Removal and Replacement

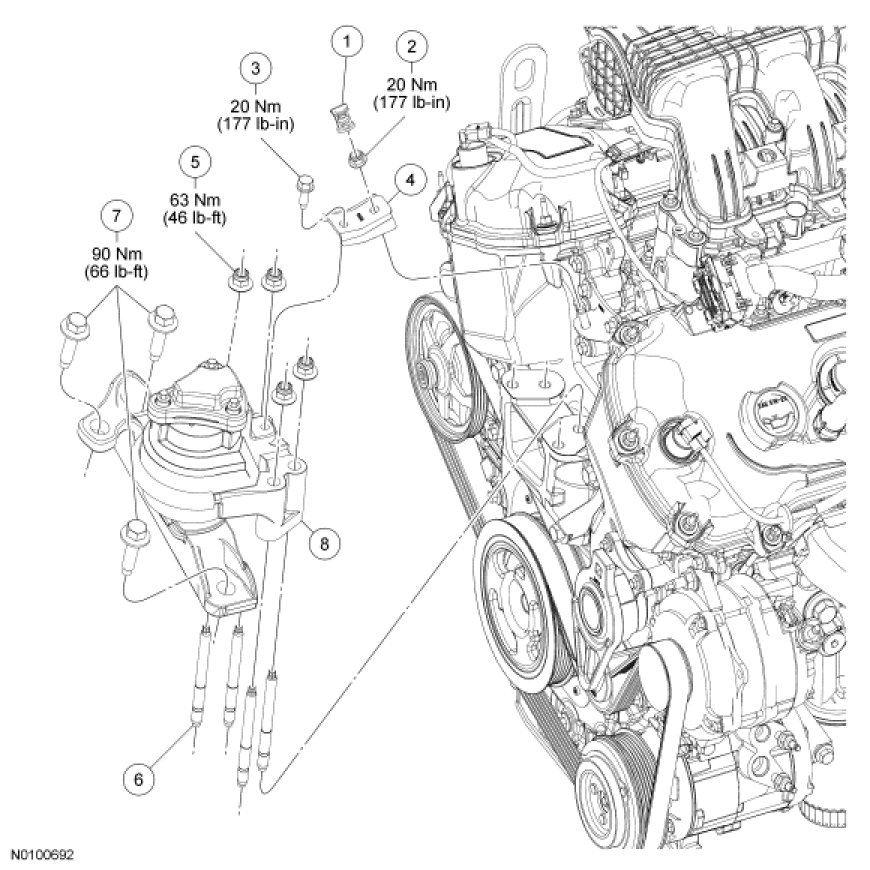

Engine Mount

















Removal

1. Remove the exhaust flexible pipe.

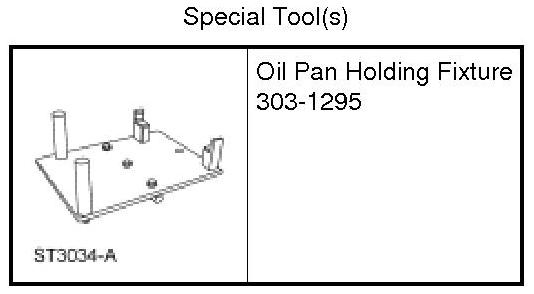

2. NOTICE: The Oil Pan Holding Fixture must be carefully aligned to the mounting bosses on the oil pan. Failure to follow this instruction may result in damage to the oil pan.

Position a floor jack and the Oil Pan Holding Fixture under the oil pan.





3. Remove the engine coolant degas bottle.

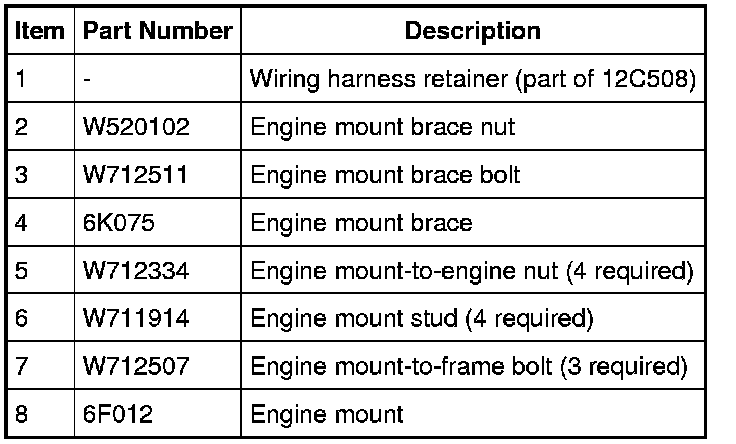

4. Detach the wiring harness retainer from the engine mount bracket stud bolt.

5. Remove the nut, bolt and engine mount brace.

6. Remove the 4 engine mount nuts.

7. Remove the 4 engine mount studs.

8. Remove the 3 bolts and the engine mount.

Installation

1. Clean the front cover engine mount stud holes with pressurized air to remove any foreign material.

2. Install the engine mount and the 3 bolts.
- Do not tighten the bolts at this time.

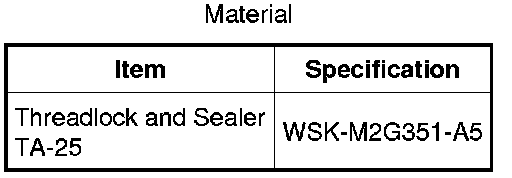

3. NOTICE: The thread sealer on the engine mount studs (including new engine mount studs if applicable) must be cleaned off with a wire brush and new thread sealer applied prior to installing the engine mount studs. Failure to follow this procedure may result in damage to the engine mount studs or engine.

Install the engine mount studs in the following sequence.

1. Clean all the thread sealer from the engine mount studs (old and new studs).

2. Apply new thread sealer to the engine mount stud threads.

3. Install the 4 engine mount studs.
- Tighten to 20 Nm (177 lb-in).

4. Tighten the 3 engine mount bolts to 90 Nm (66 lb-ft).

5. Install the 4 engine mount nuts.
- Tighten to 63 Nm (46 lb-ft).

6. Install the engine mount brace, nut and bolt.
- Tighten to 20 Nm (177 lb-in).

7. Attach the wiring harness retainer to the engine mount bracket stud bolt.

8. Install the engine coolant degas bottle.

9. Install the exhaust flexible pipe.
