Brake Flexible Hose

Brake Flexible Hose





Removal and Installation

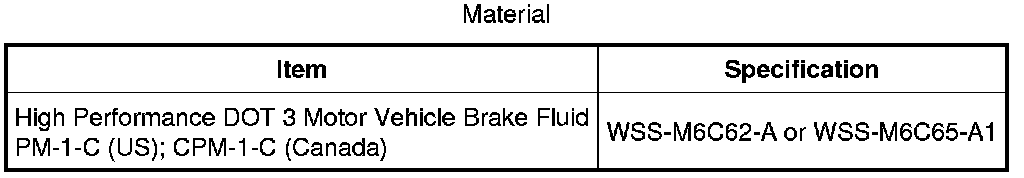

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTICE: Do not allow the brake fluid to come in contact with the adhesive backing on the brake pads, this may prevent the brake pad's adhesive surface from bonding with the brake caliper. If brake fluid is spilled onto the brake pads, new pads must be installed.

NOTICE: Use only specified brake parts cleaner. Use of other cleaners may leave a residue on the brake caliper preventing the brake pad's adhesive surface from bonding with the brake caliper.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTICE: Make sure to protect the brake pads from contamination from the brake fluid during the brake flexible hose installation and the brake caliper bleeding.

Remove the brake caliper flow bolt and discard the 2 copper washers.

- To install, tighten to 35 Nm (26 lb-ft).

- Install new copper washers.

3. Disconnect the brake tube fitting from the brake flexible hose.
- To install, tighten to 18 Nm (159 lb-in).

4. Remove the hose bracket bolt and the brake flexible hose.
- To install, tighten to 30 Nm (22 lb-ft).

5. To install, reverse the removal procedure.
- Lubricate the brake caliper flow bolt threads and washers with clean brake fluid before installing the brake caliper flow bolt into the brake caliper.

- Bleed the brake caliper.
