Power Mirror Motor: Service and Repair

Exterior Mirror Motor

Removal and Installation

NOTE: Sable and Taurus shown, Taurus X similar.

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

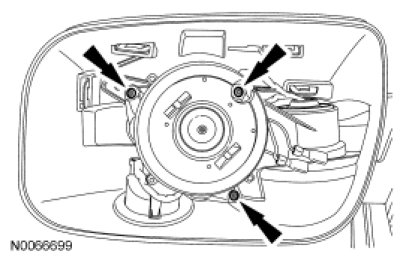

2. Remove the 3 exterior mirror motor screws.





3. Remove the exterior mirror motor.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
