Parcel Shelf Speaker




Parcel Shelf Speaker

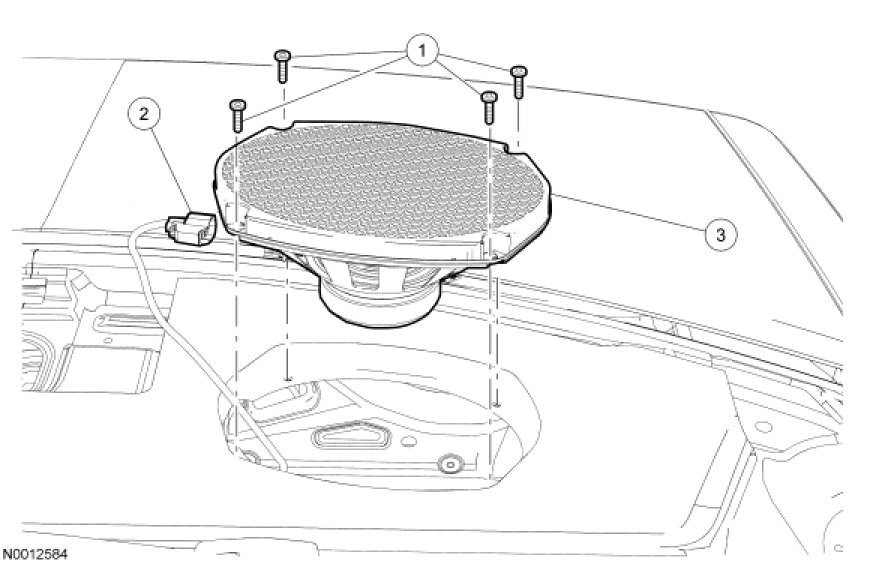

NOTE: Premium speaker shown, others similar.










Removal and Installation

1. Remove the parcel shelf.

2. Remove the 4 screws and the parcel shelf speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
