Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Tightening Torque & Sequence
>>
Exhaust Manifold
Exhaust Manifold

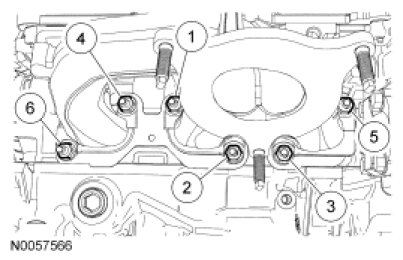

Install a new gasket, the RH exhaust manifold and 6 new nuts.
Tighten to
20 Nm (177 lb-in) in the sequence shown.
