Seat Cushion Cover - Rear

Seat Cushion Cover - Rear

1. Remove the rear seat cushion. For additional information, refer to Seat Cushion - Rear Seat Cushion - Rear.

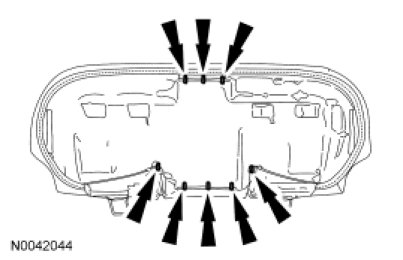

2. Release the drawstring and remove the hog rings.





3. NOTICE: Use care when separating the backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

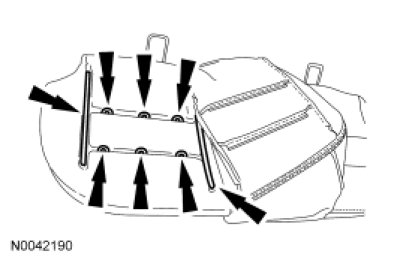

Partially invert the trim cover and release the hook-and-loop strips up to the hog rings.

4. Remove the hog rings and continue to release the hook-and-loop strips and separate the trim cover from the foam pad.





5. To install, reverse the removal procedure.
