Shifter M/T: Service and Repair

Gearshift Lever









Removal

1. Remove the console.

2. Disconnect the shift cable ends at the shift and select levers.

3. NOTICE: Carefully disconnect the cable from the shift lever base. Do not damage the shift cable retainers.

Disconnect the gearshift cables from the gearshift lever base.

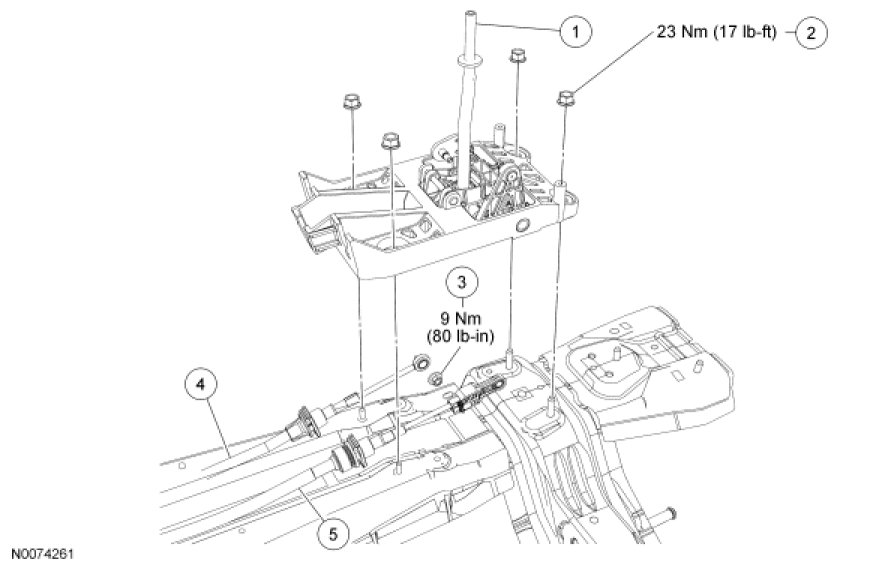

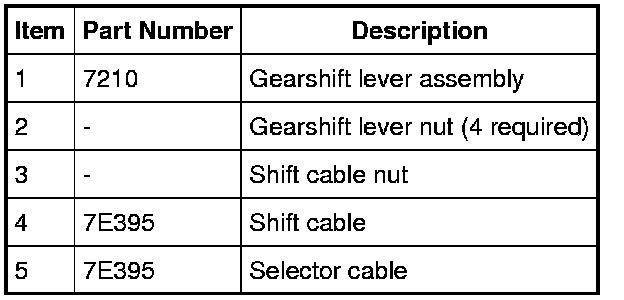

4. Remove the 4 gearshift lever nuts.

5. Remove the gearshift lever assembly.

Installation

1. Position the gearshift lever assembly in the vehicle.

2. Install the 4 gearshift lever nuts.
- Tighten to 23 Nm (17 lb-ft).

3. Connect the selector cable.

4. Connect the shift cable.
- Tighten the nut to 9 Nm (80 lb-in).

5. Adjust the gearshift cables.

6. Position the console and install the 2 console screws to the shifter base.

7. Install the 2 front console center bolts and then install the 2 rear side console bolts.
