Wheel Speed Sensor - Rear, Front Wheel Drive (FWD)

Wheel Speed Sensor - Rear, Front Wheel Drive (FWD)









Removal and Installation

1. Remove the rear seat bolster.

2. Disconnect the wheel speed sensor electrical connector.

3. With the vehicle in NEUTRAL, position it on a hoist.

4. Using a suitable tool, disconnect the grommet from the body.

5. NOTE: It is not necessary to remove the harness routing brackets.

Disconnect the wheel speed sensor harness from the brackets.

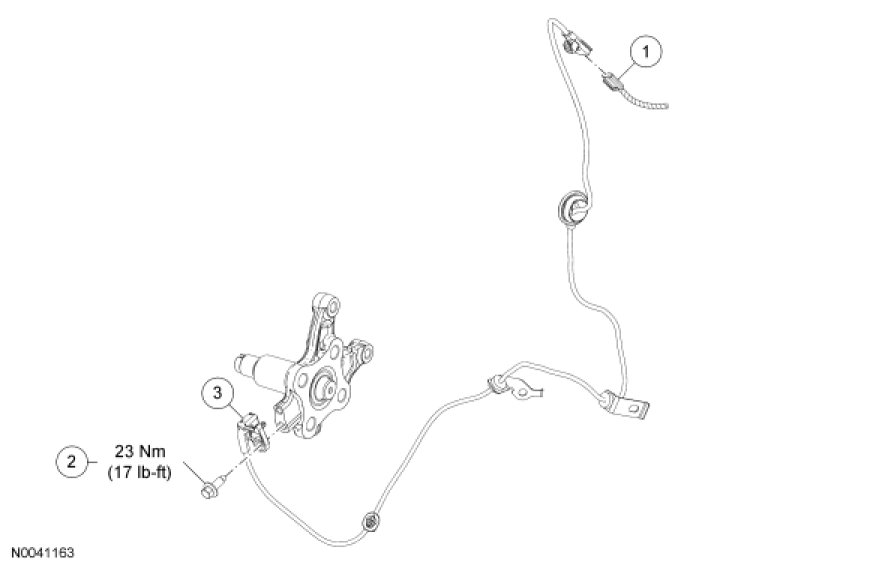

6. Remove the wheel speed sensor wire bolt and the wheel speed sensor.
- To install, tighten to 23 Nm (17 lb-ft).

7. To install, reverse the removal procedure.
