Home >> Mercury >> 2009 >> Milan FWD L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Driver Seat Module (DSM)

Driver Seat Module (DSM)




Driver Seat Module (DSM)

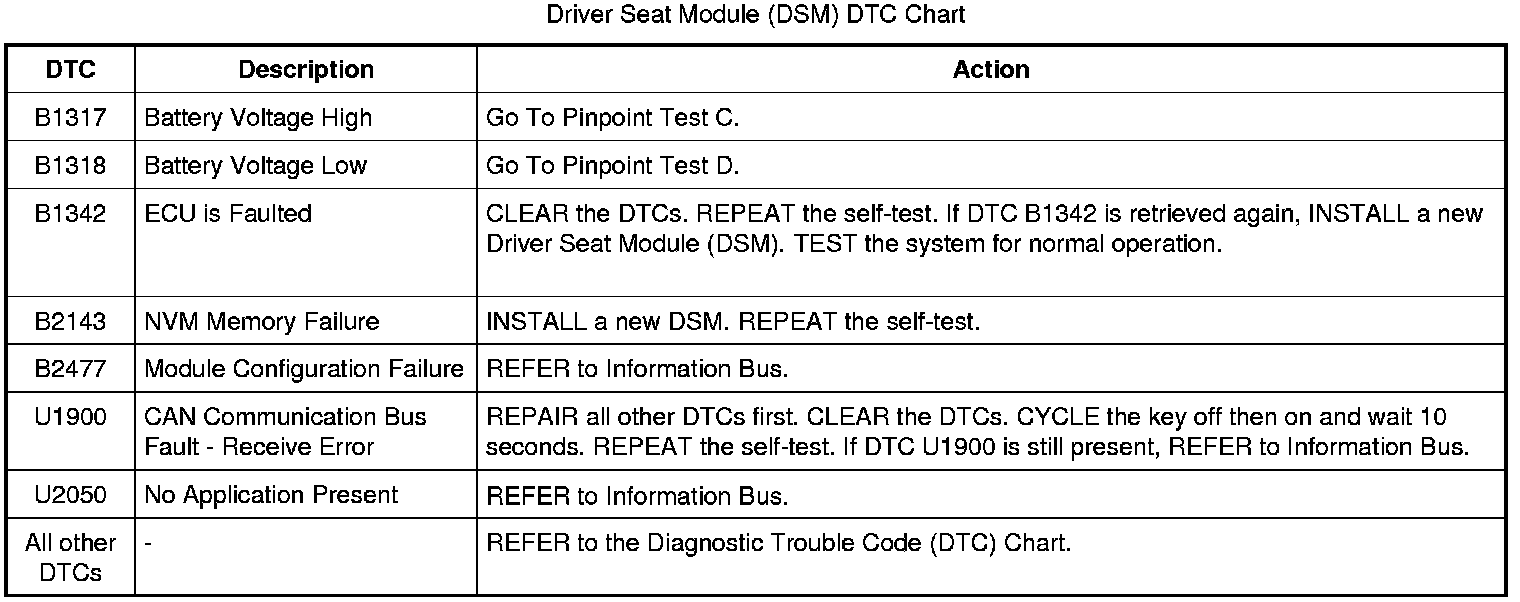

DTC Charts

B1317-B2477 / U1900-U2050:
