Transfer Case - Power Transfer Unit (PTU)




Power Transfer Unit (PTU)

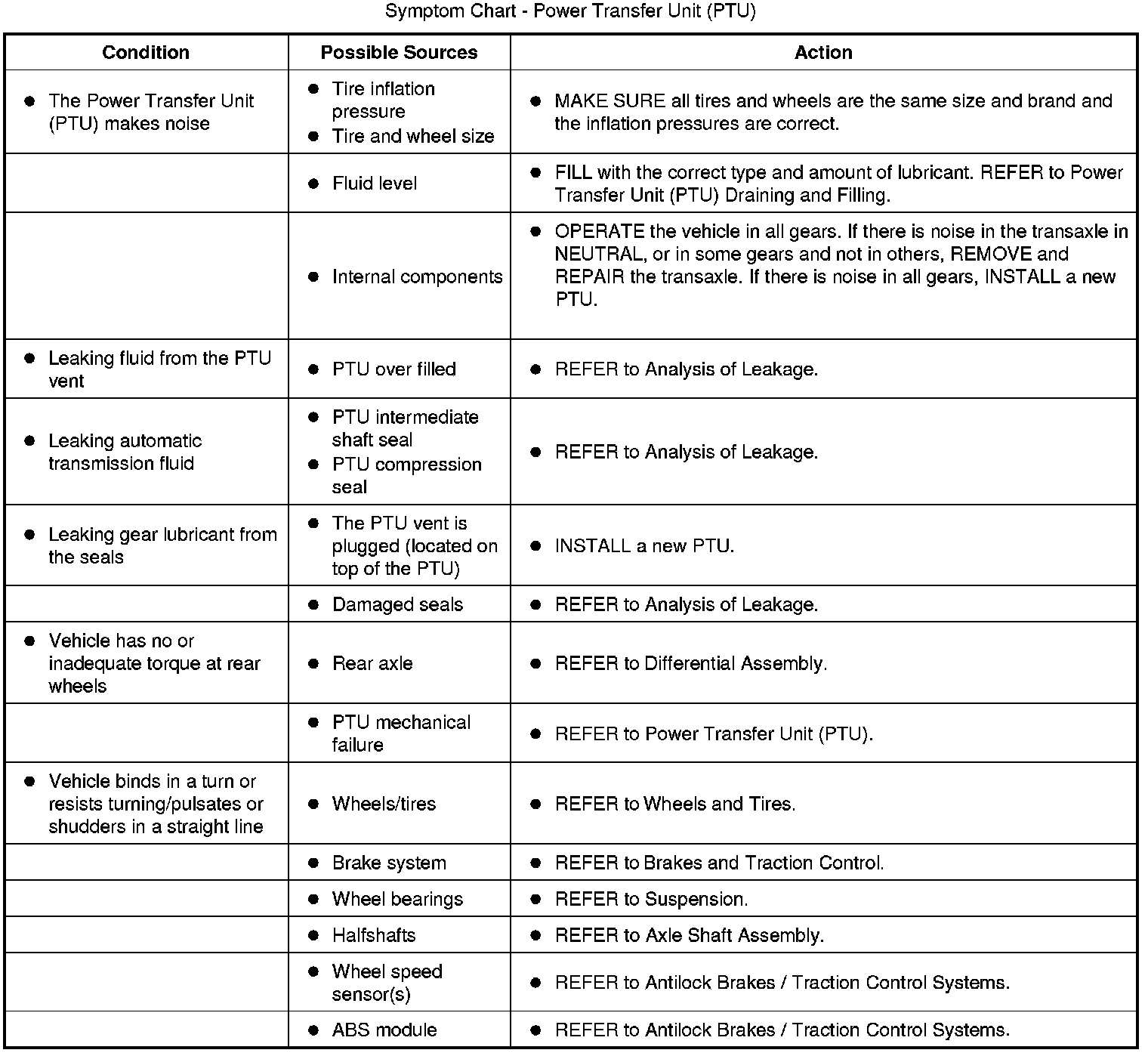

Symptom Chart - Power Transfer Unit (PTU)

Symptom Chart - Power Transfer Unit (PTU):
