Stub Shaft Seal

Rear Drive Axle/Differential

Stub Shaft Seal

















Removal

NOTE: The Rear Drive Unit (RDU) does not have stub shaft pilot bearings. It has stub shaft seals only.

1. Remove the halfshaft.

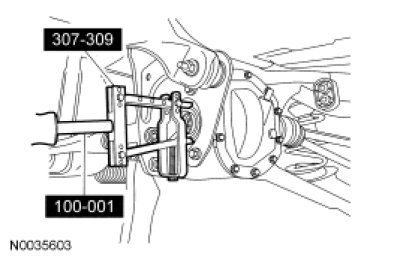

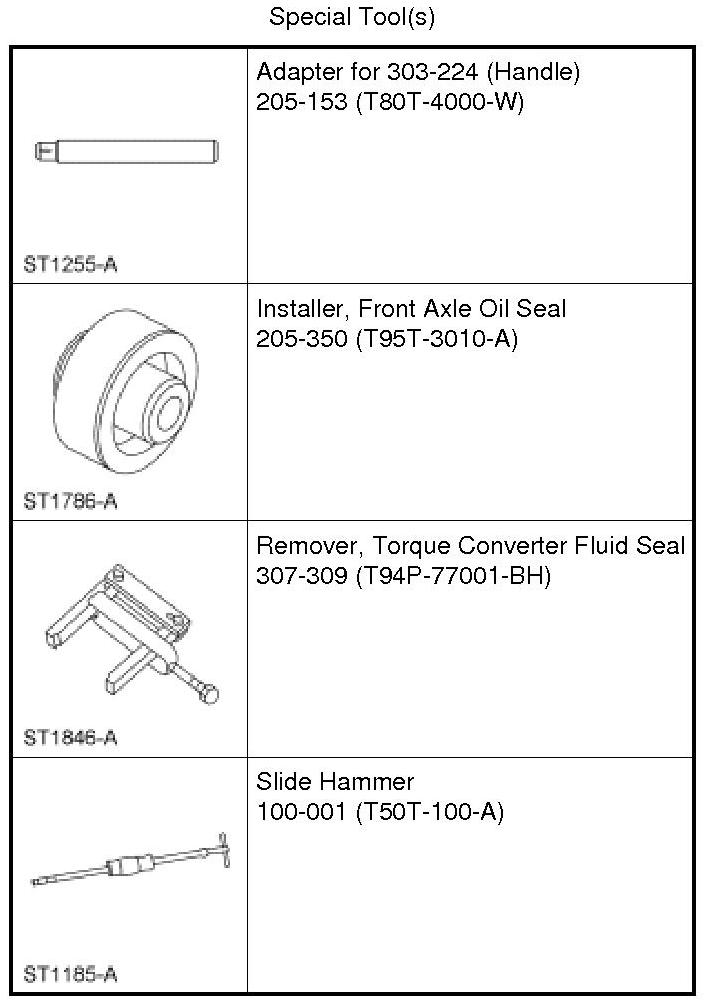

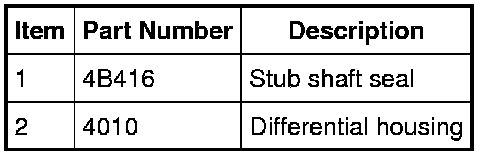

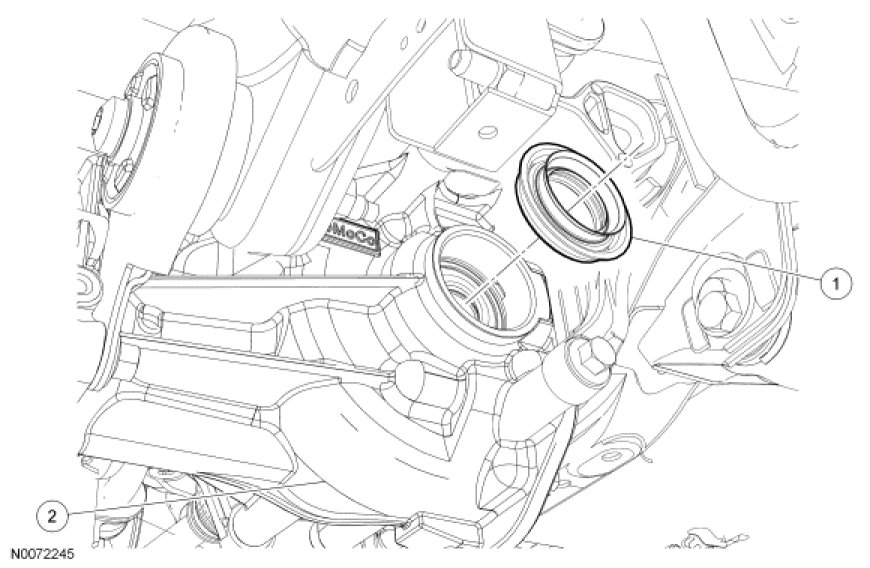

2. Using the Torque Converter Fluid Seal Remover and Slide Hammer, remove the stub shaft seal.





Installation

1. NOTE: Lubricate the new stub shaft seal with grease.

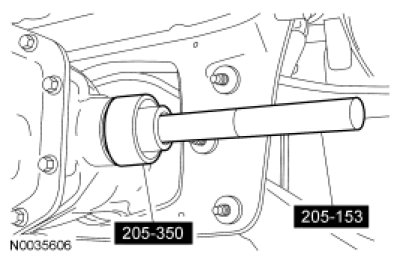

Using the Front Axle Oil Seal Installer and Adapter Handle, install the stub shaft pilot bearing housing seal.





2. Install the halfshaft assembly.
