Transaxle Connector Layouts
Transaxle Connector Layouts

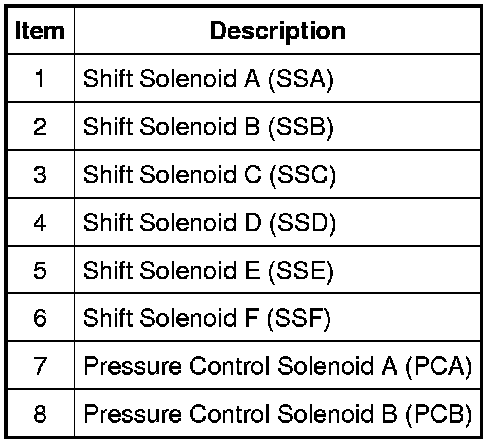

Transaxle Solenoid Location

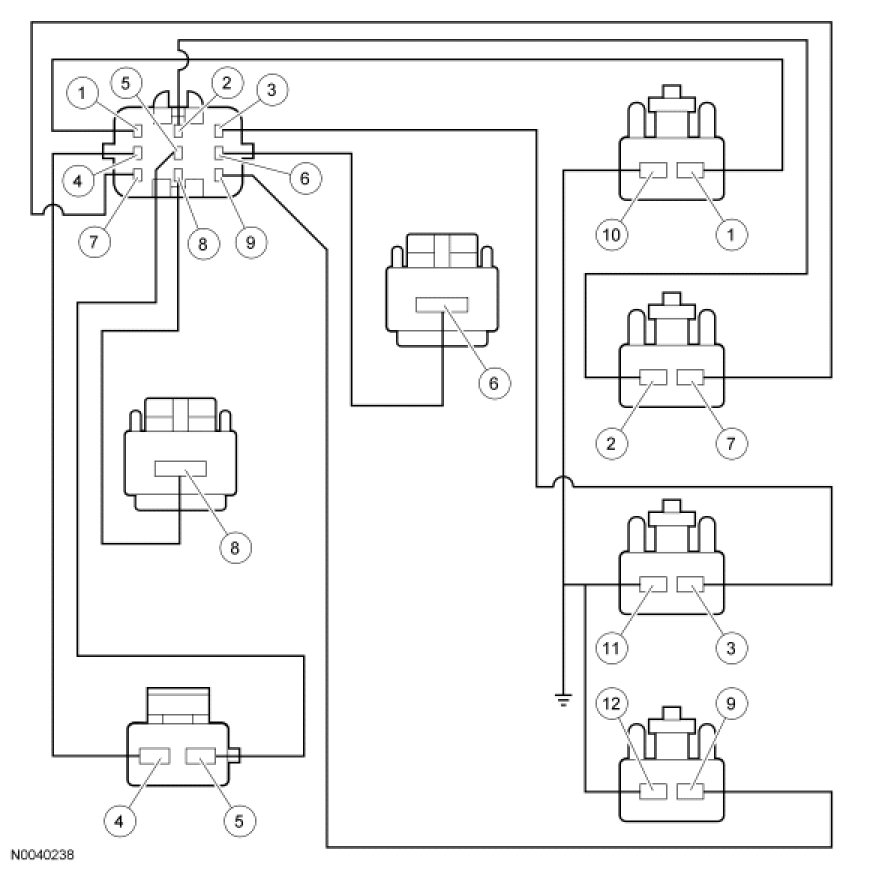

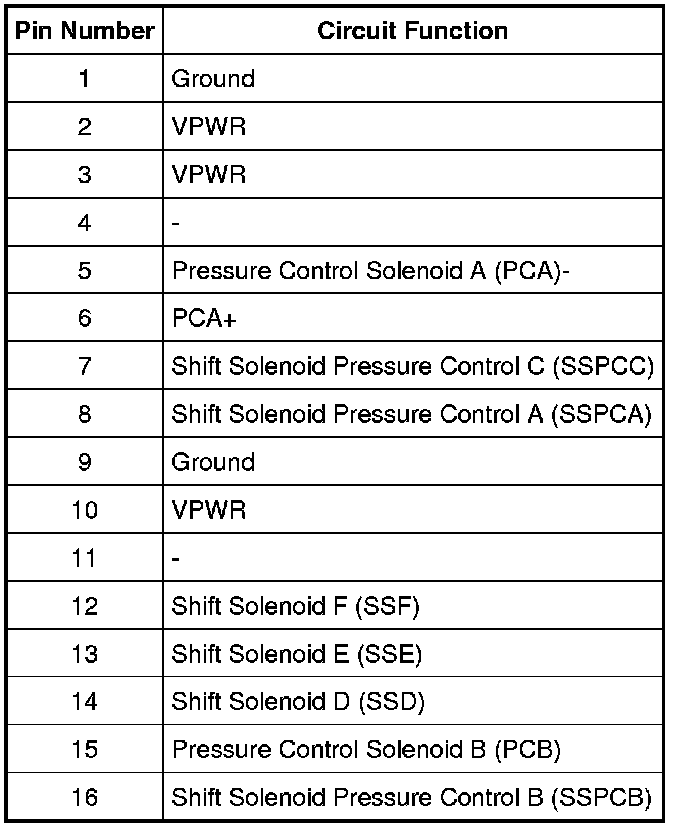

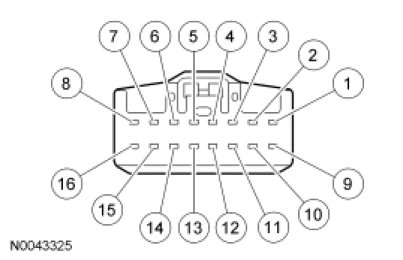

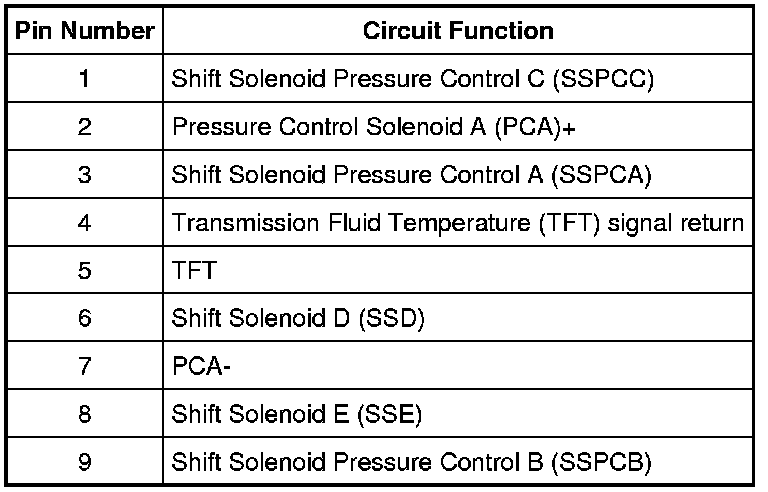

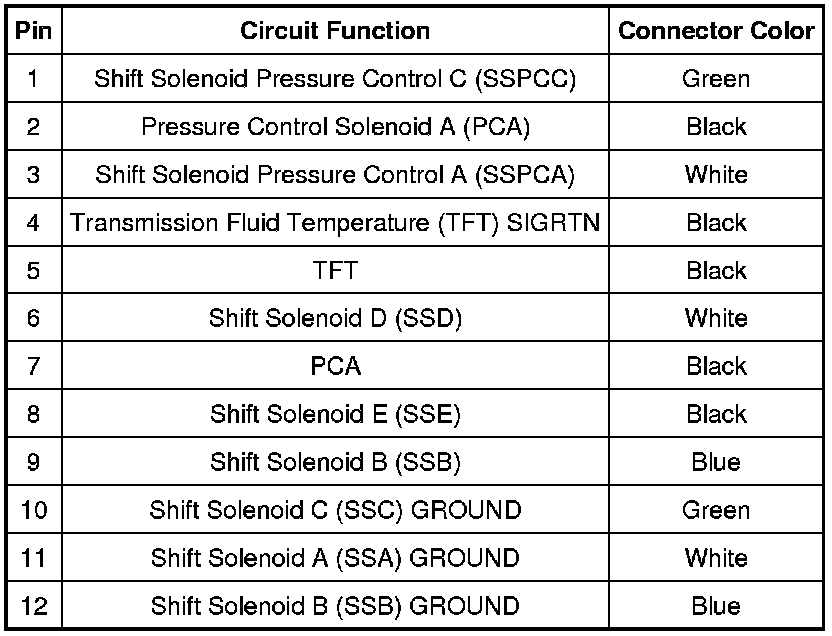

Transaxle Main Valve Body Internal Harness C1534

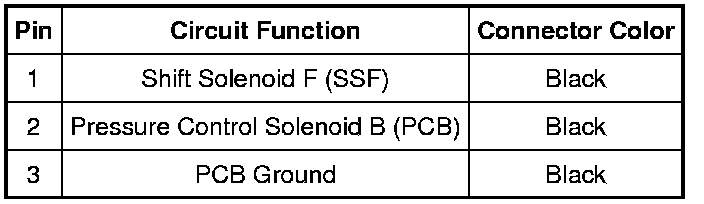

Transaxle 5th Gear Valve Body Internal Harness Connectors

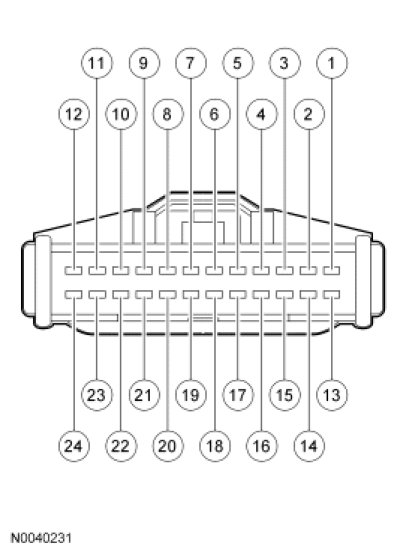

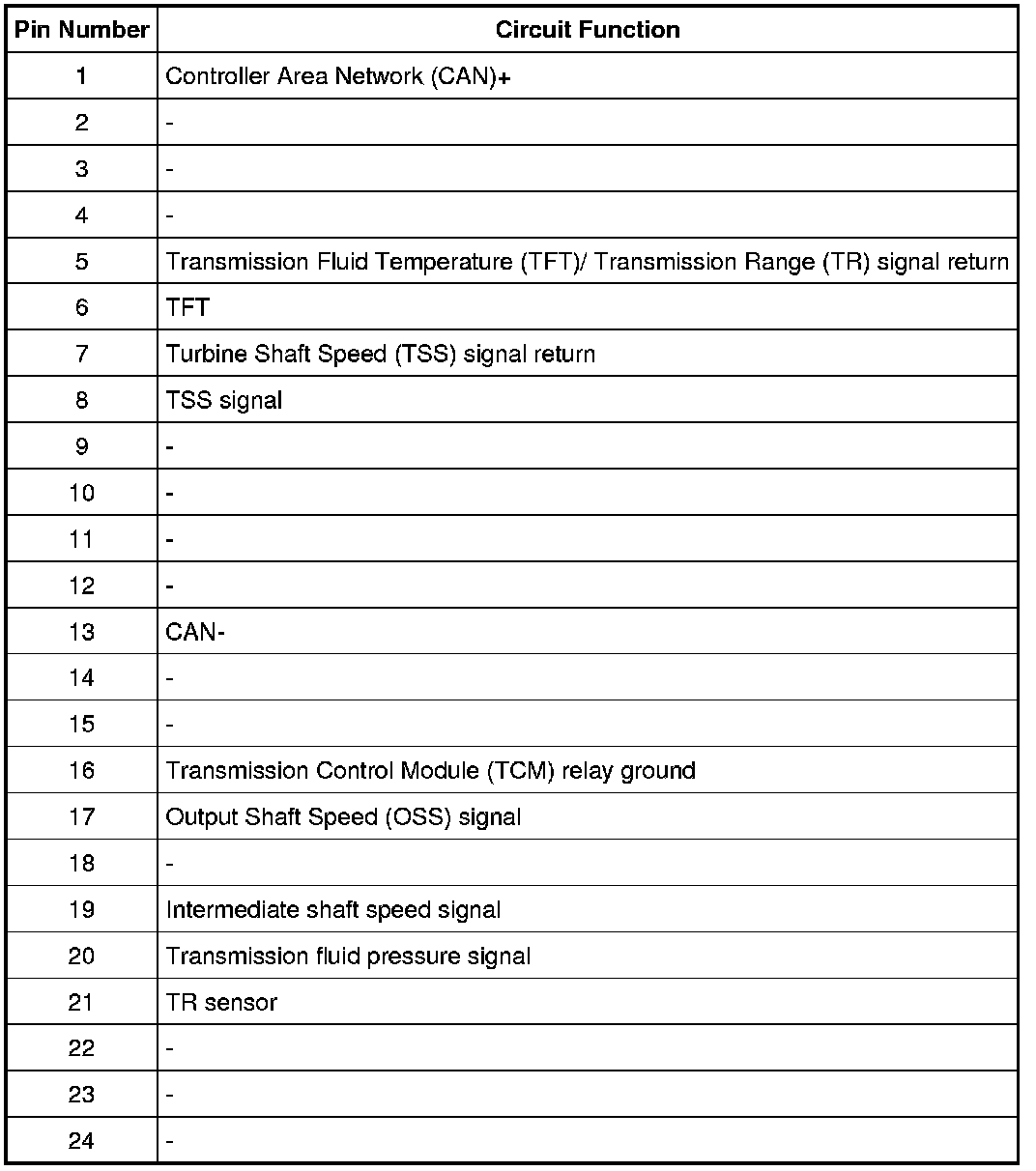

Transmission Control Module (TCM) C2352A
Transmission Control Module (TCM) C2352B

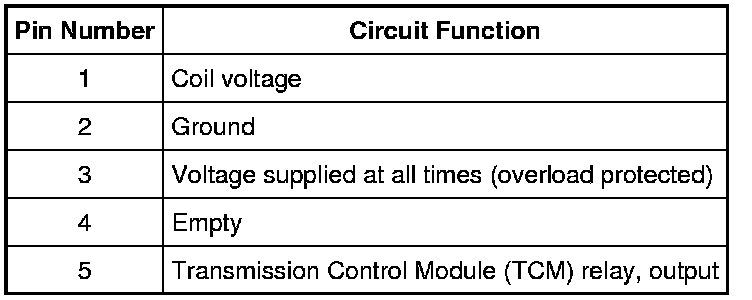

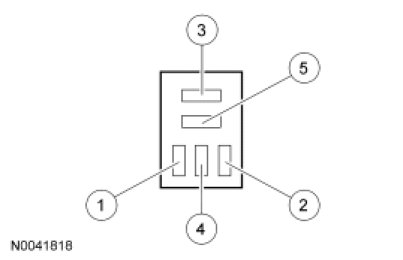

Transmission Control Module (TCM) Relay (Power Distribution Box (PDB) Side)

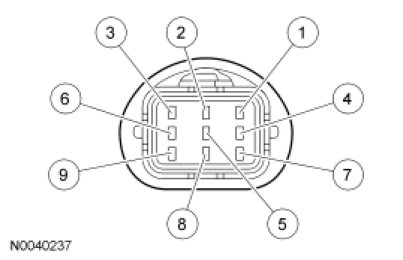

Transaxle Main Valve Body Vehicle Harness C1534
Transaxle 5th Gear Valve Body Vehicle Harness C1535

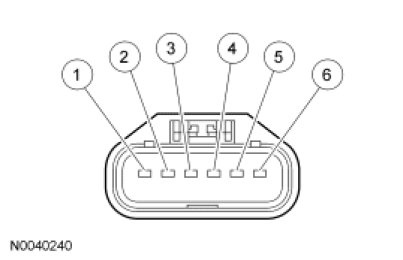

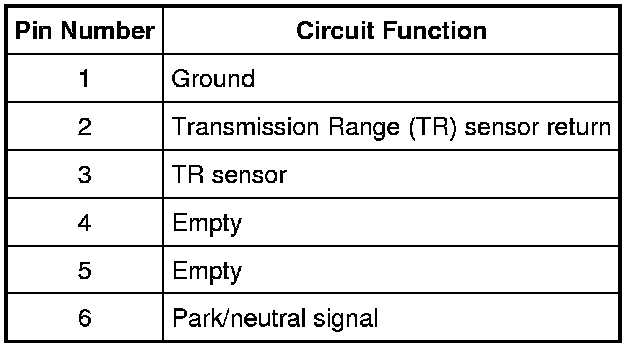

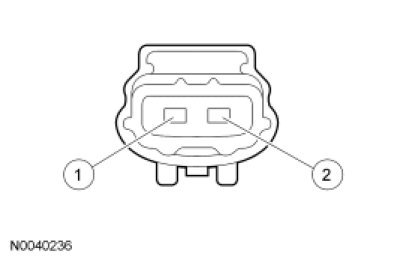

Transmission Range (TR) Sensor Vehicle Harness C1537

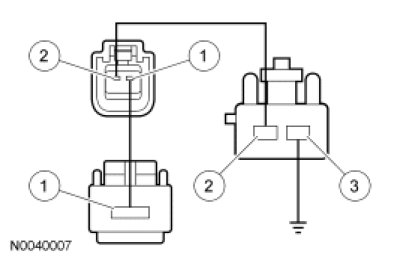

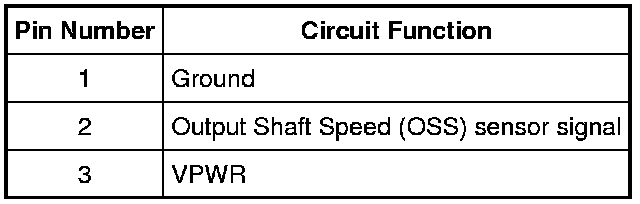

Output Shaft Speed (OSS) Sensor Vehicle Harness C193

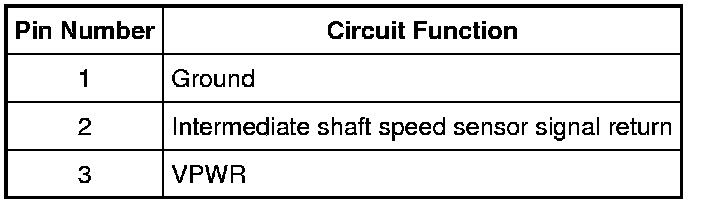

Intermediate Shaft Speed Sensor Vehicle Harness C1088

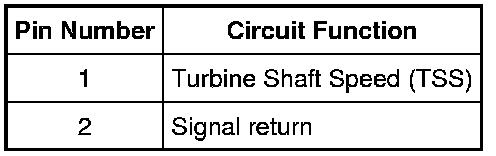

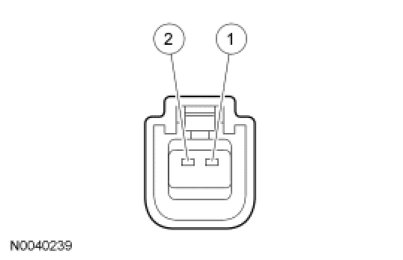

Turbine Shaft Speed (TSS) Sensor Vehicle Harness C143

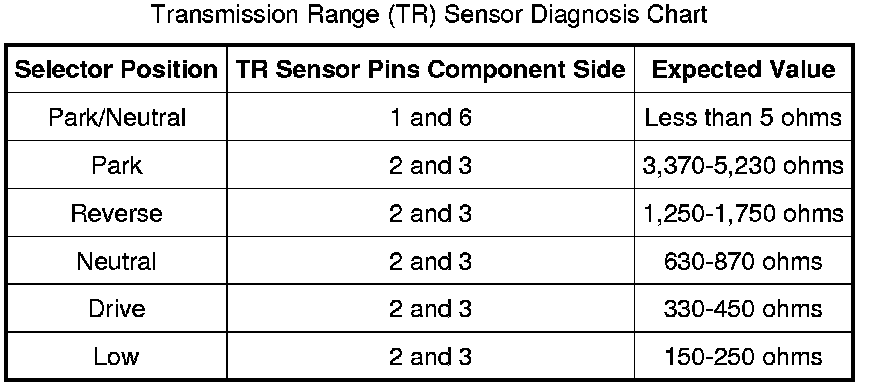

Transmission Range (TR) Sensor Diagnosis Chart:
