Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Aisin AW21

Aisin AW21

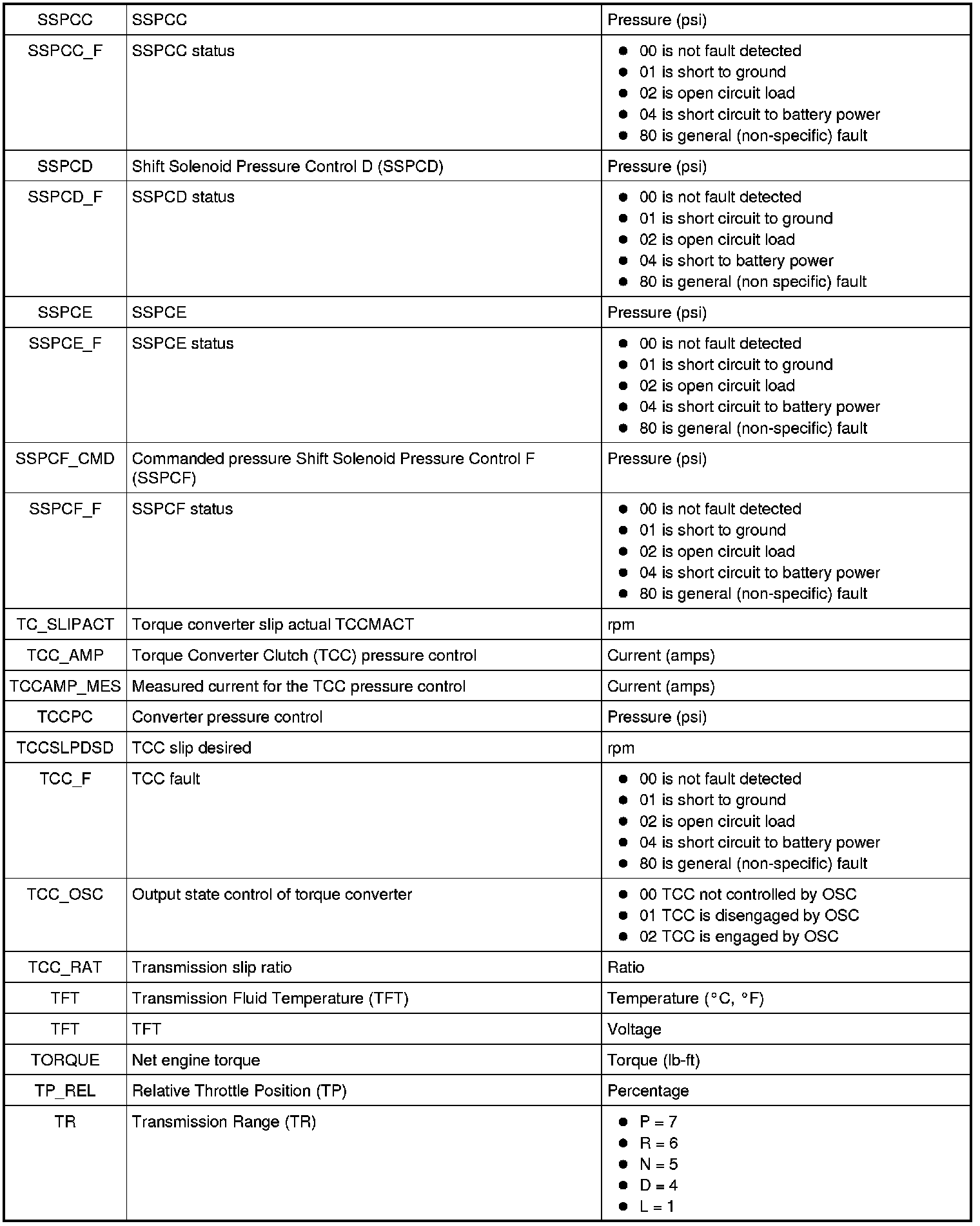

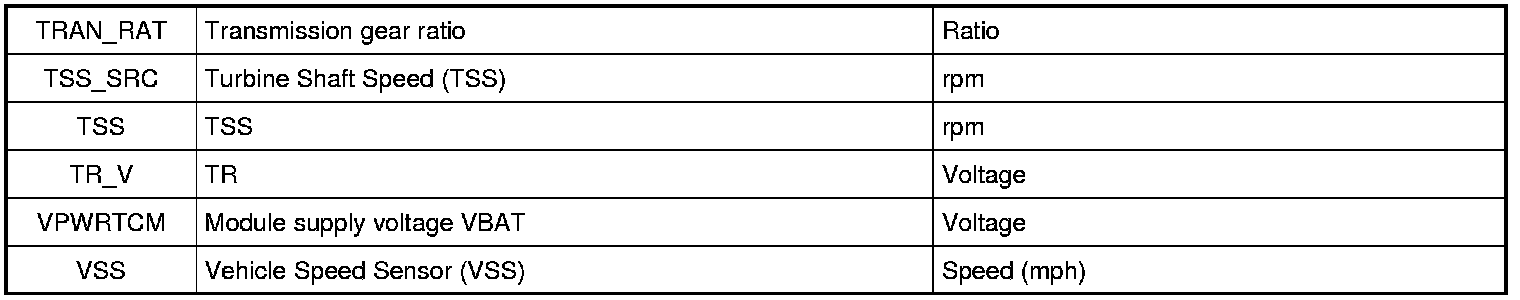

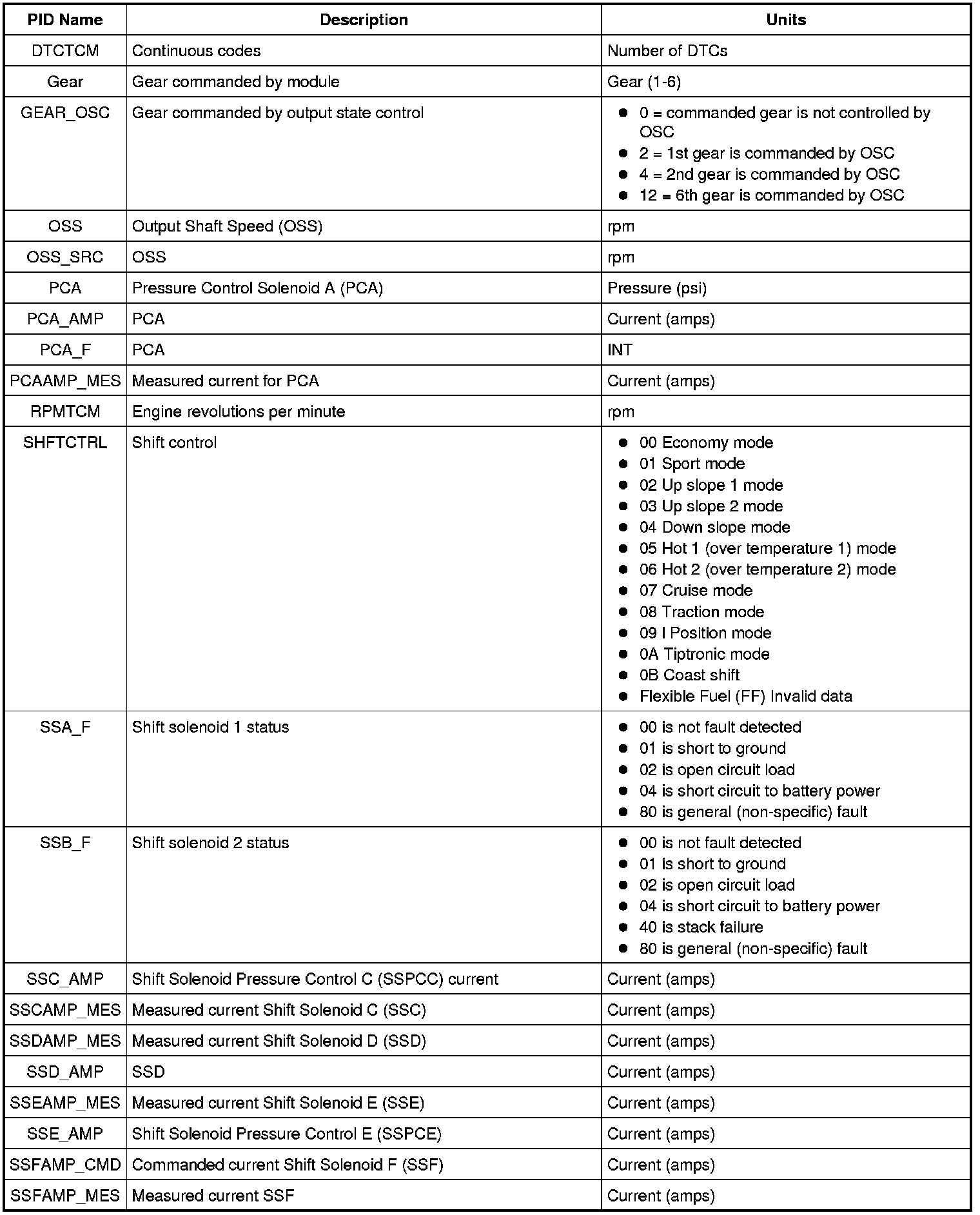

Diagnostic Parameters Identification (PID) Chart
