Selector Lever

Selector Lever









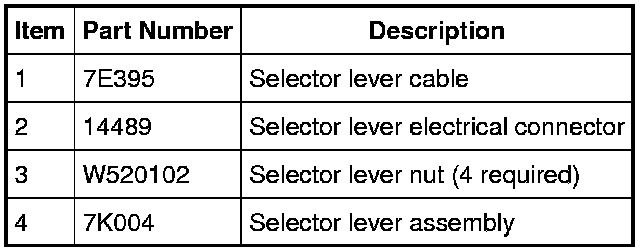

Removal

1. Remove the center console.

2. Disconnect the selector lever cable end from the selector lever.

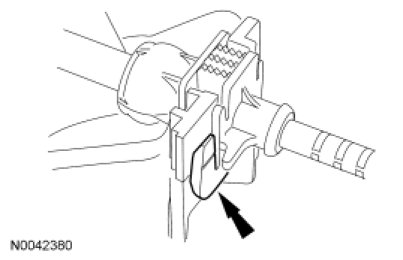

3. Release the tab on the selector lever cable and remove it from the selector lever housing.

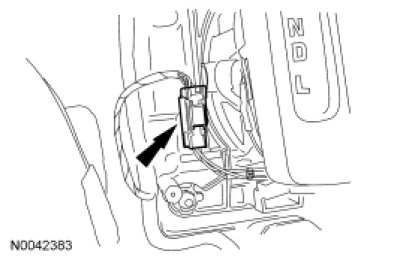

4. Disconnect the electrical connector.

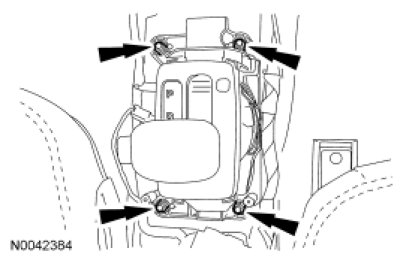

5. Remove the 4 nuts and remove the selector lever.





Installation

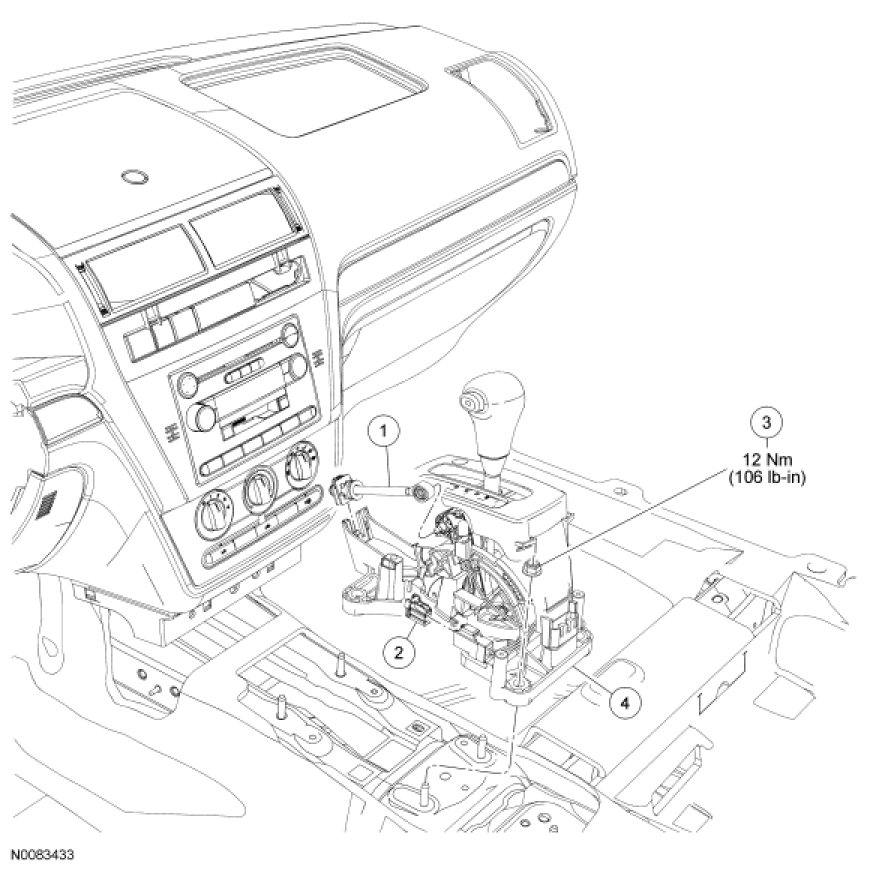

1. Install the selector lever and the 4 nuts.
- Tighten to 12 Nm (106 lb-in).





2. Connect the electrical connector.





3. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the selector lever cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the selector lever cable bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed.

Install the selector lever cable in the selector lever housing.





4. Connect the selector lever cable end to the selector lever.





5. Install the center console.

6. Adjust the selector lever cable, refer to Selector Lever Cable Adjustment Selector Lever Cable Adjustment.
