Torque Converter Hub Seal

Torque Converter Hub Seal









Disassembly

1. Remove the transaxle. For additional information, refer to Transaxle - 3.0L Removal or Transaxle - 3.5L Removal.

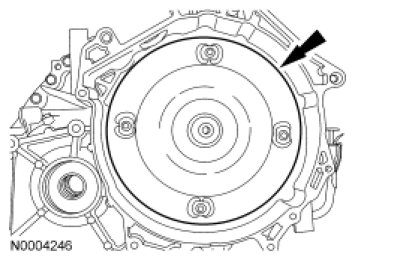

2. Remove the torque converter.

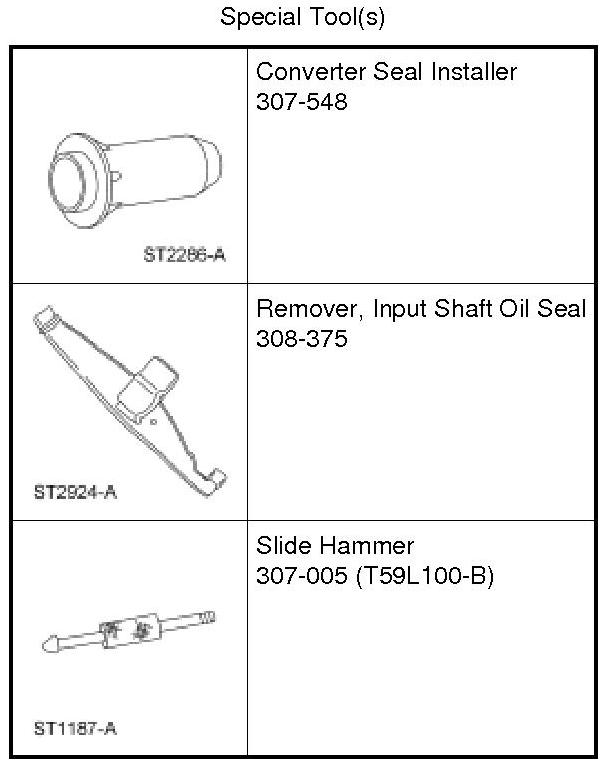

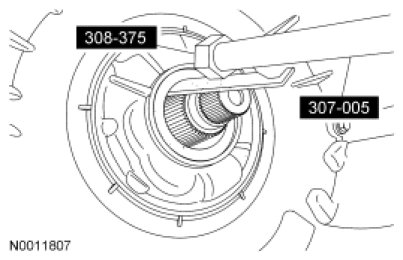

3. Using the Input Shaft Oil Seal Remover and Slide Hammer, remove the torque converter hub seal.





Assembly

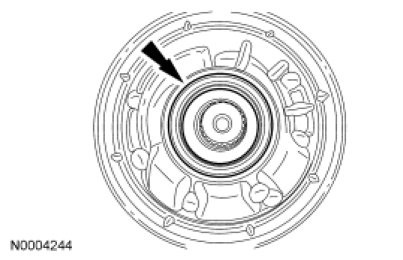

1. Position the torque converter hub seal in place.

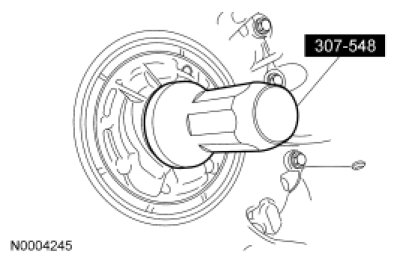

2. Using the Converter Seal Installer, install the torque converter hub seal.





3. Install the torque converter.





4. Install the transaxle. For additional information, refer to Transaxle - 3.0L Installation or Transaxle - 3.5L Installation.
