Halfshaft Seals - LH

Halfshaft Seal - LH





Removal

1. Remove the LH halfshaft.

2. NOTICE: Be careful not to damage the case while removing the seal.

Using a suitable tool, remove the LH differential fluid seal.





Installation

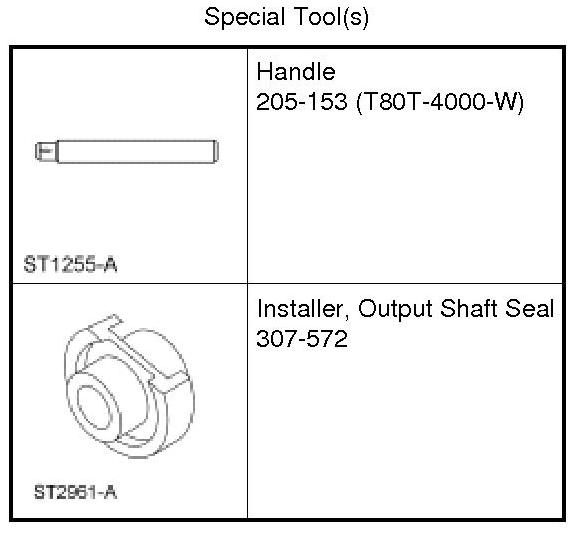

1. Position the new differential fluid seal on the Output Shaft Seal Installer and Handle.

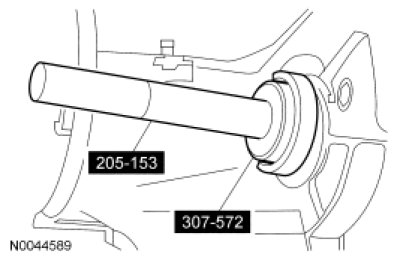

2. Using the Output Shaft Seal Installer and Handle, install the halfshaft seal.





3. Install the LH halfshaft.
