Home >> Mercury >> 2009 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Window Control Switch, Right Rear

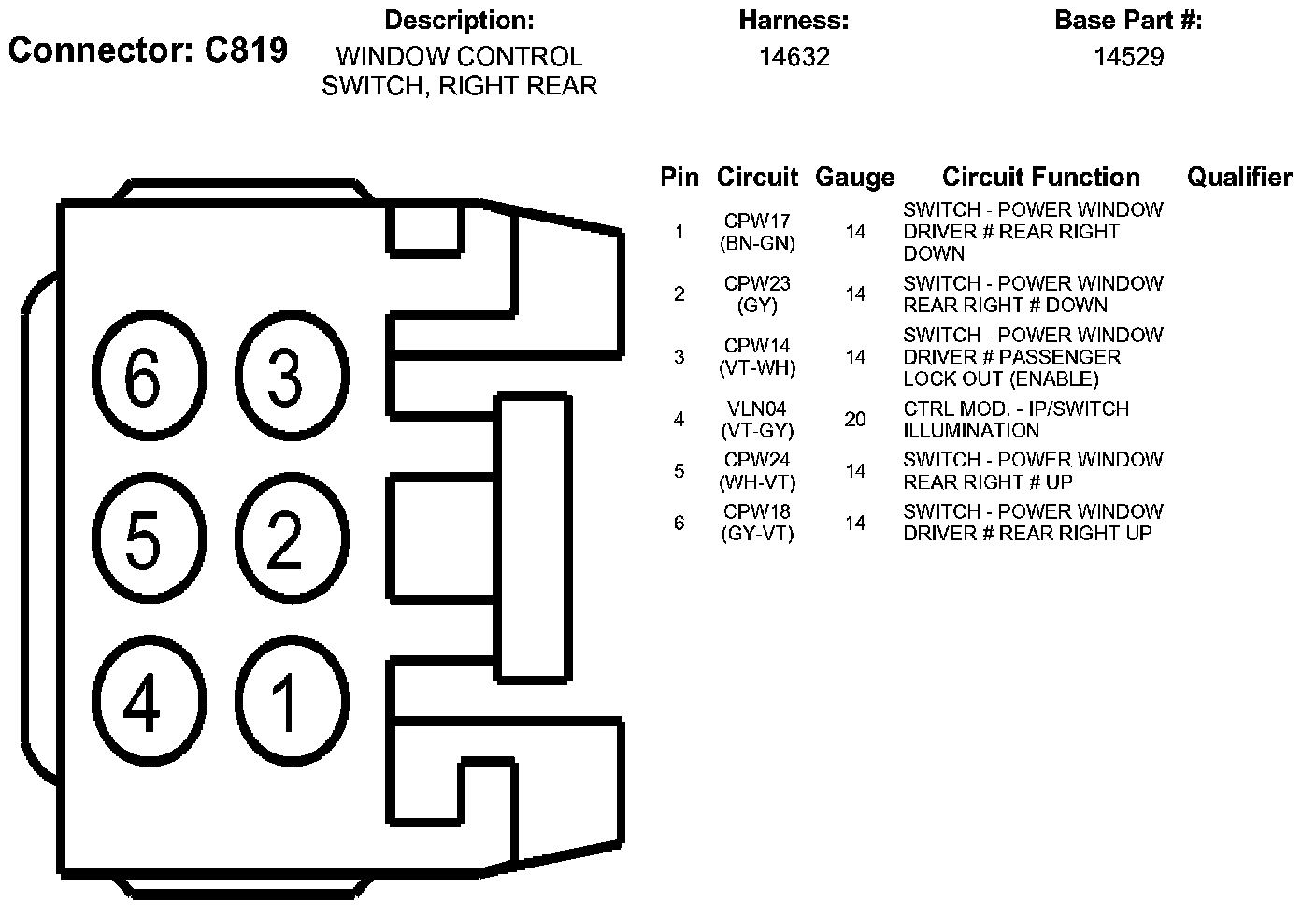

Window Control Switch, Right Rear
