Universal Serial Bus (USB) Cable and Port

Universal Serial Bus (USB) Cable and Port

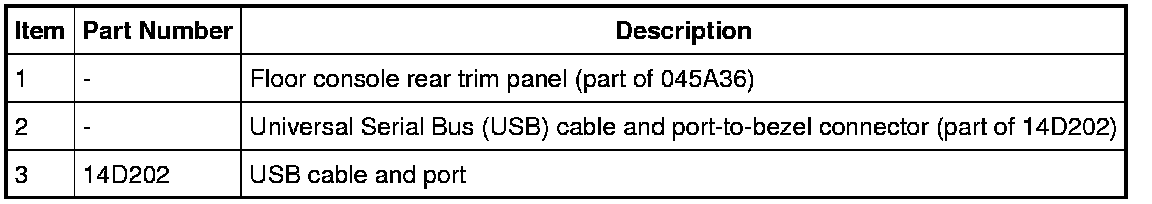

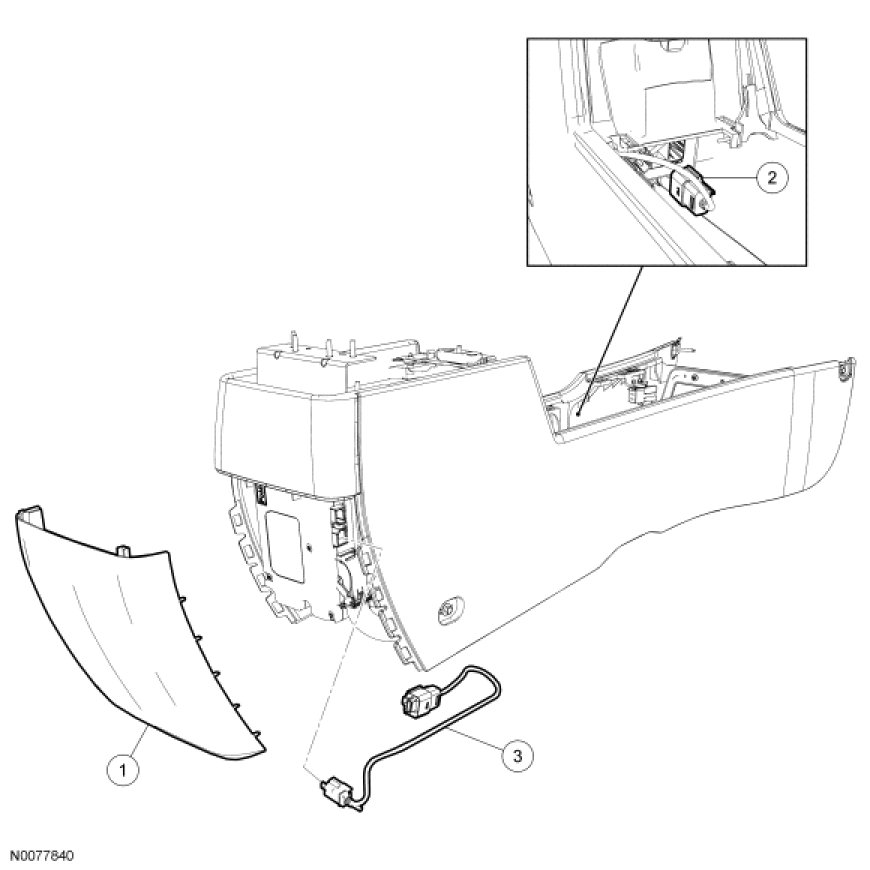

NOTE: Fusion, Milan shown, MKZ similar.










Removal and Installation

1. Remove the floor console.

2. Disconnect the Universal Serial Bus (USB) cable and port-to-bezel connector.

3. Remove the floor console rear trim panel by pulling straight back to disengage the clips.

4. NOTICE: Be careful not to flex the floor console RH side panel too much, or damage to the floor console may occur.

Remove the USB cable and port.

- Disconnect the USB cable and port-to-Accessory Protocol Interface Module (APIM) electrical connector.

- Carefully flex the floor console RH side panel and remove the USB cable and port.

5. To install, reverse the removal procedure.
