Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

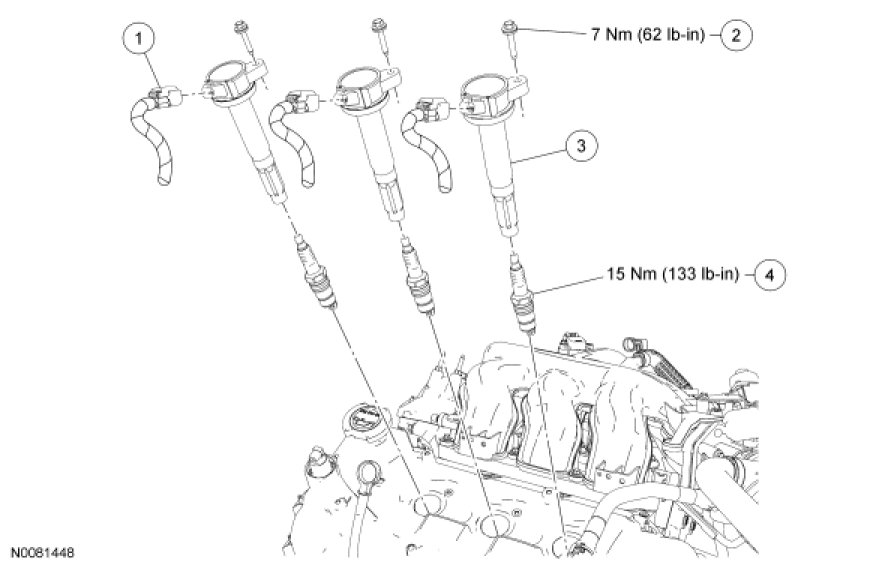

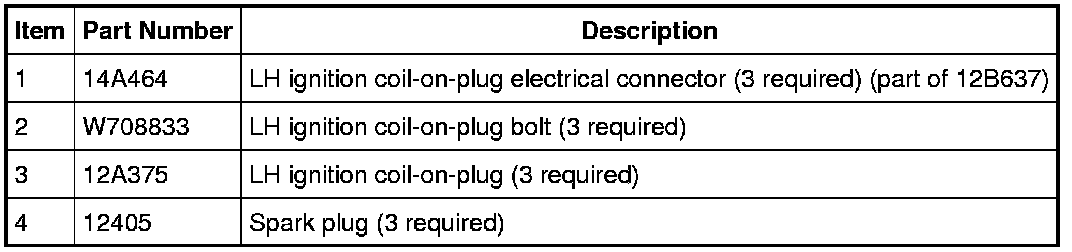

LH Side

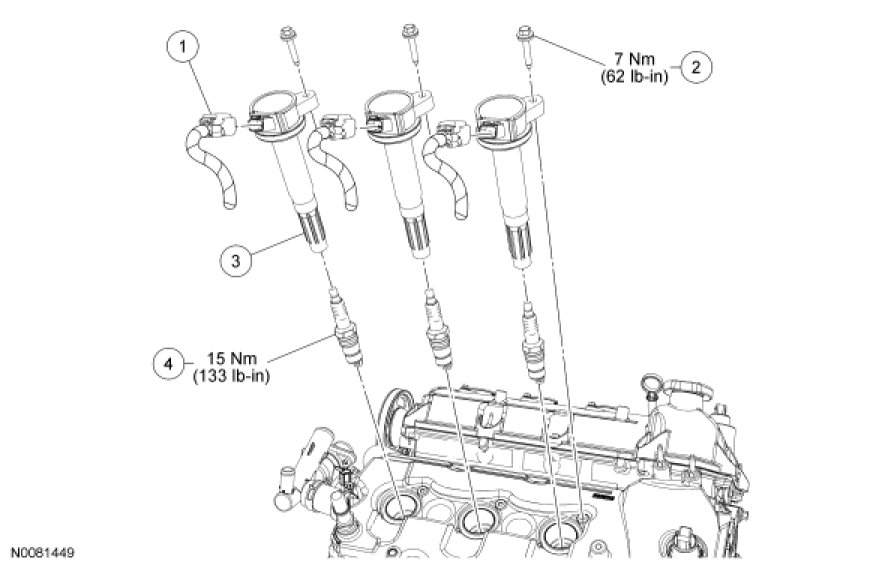

RH Side









1. For additional information, refer to the procedures.
