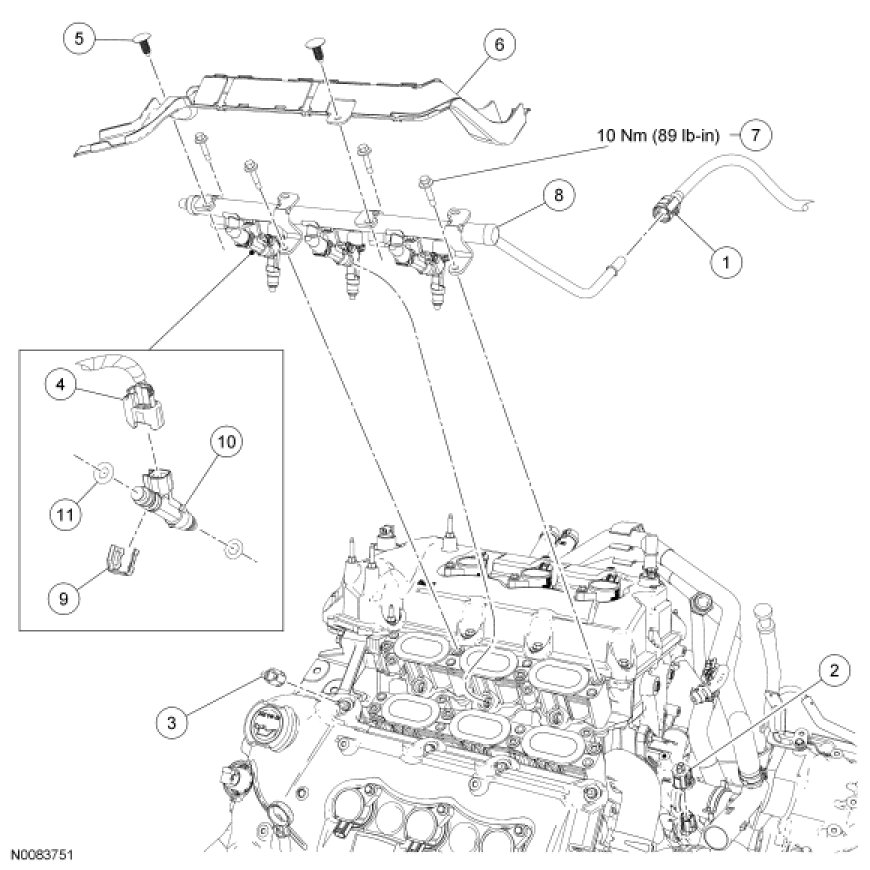

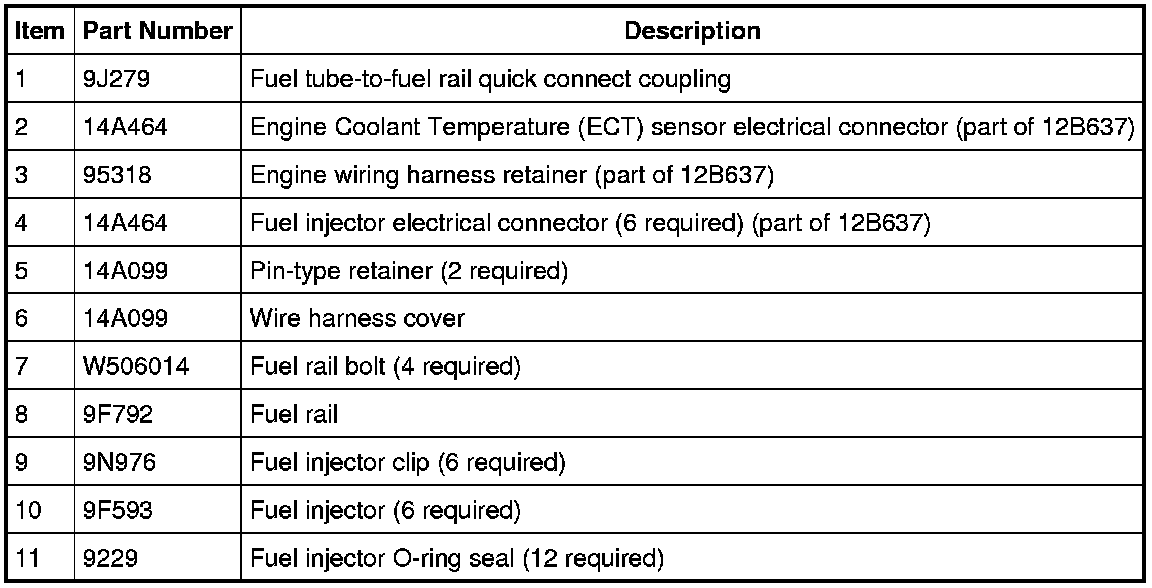

Fuel Rail and Fuel Injector - Exploded View
Fuel Rail and Fuel Injector - Exploded View
Fuel Rail
and
Fuel Injector
- Exploded View
1.
For additional information, refer to the procedures.
