QA - Unable to Activate Self-Test/Network Communication Error

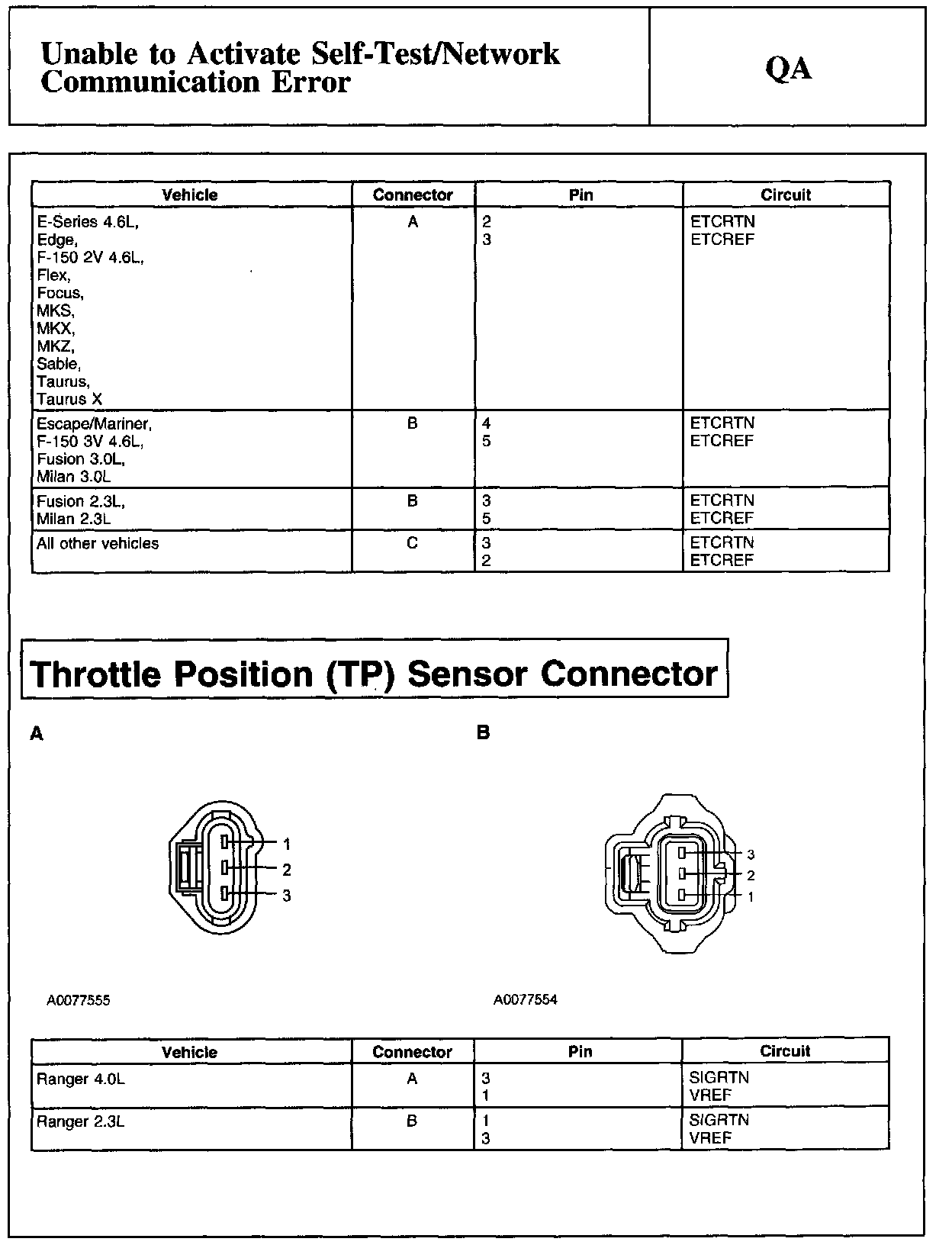

Electronic Throttle Body Throttle Position Sensor Connector:

Throttle Position Sensor Connector:

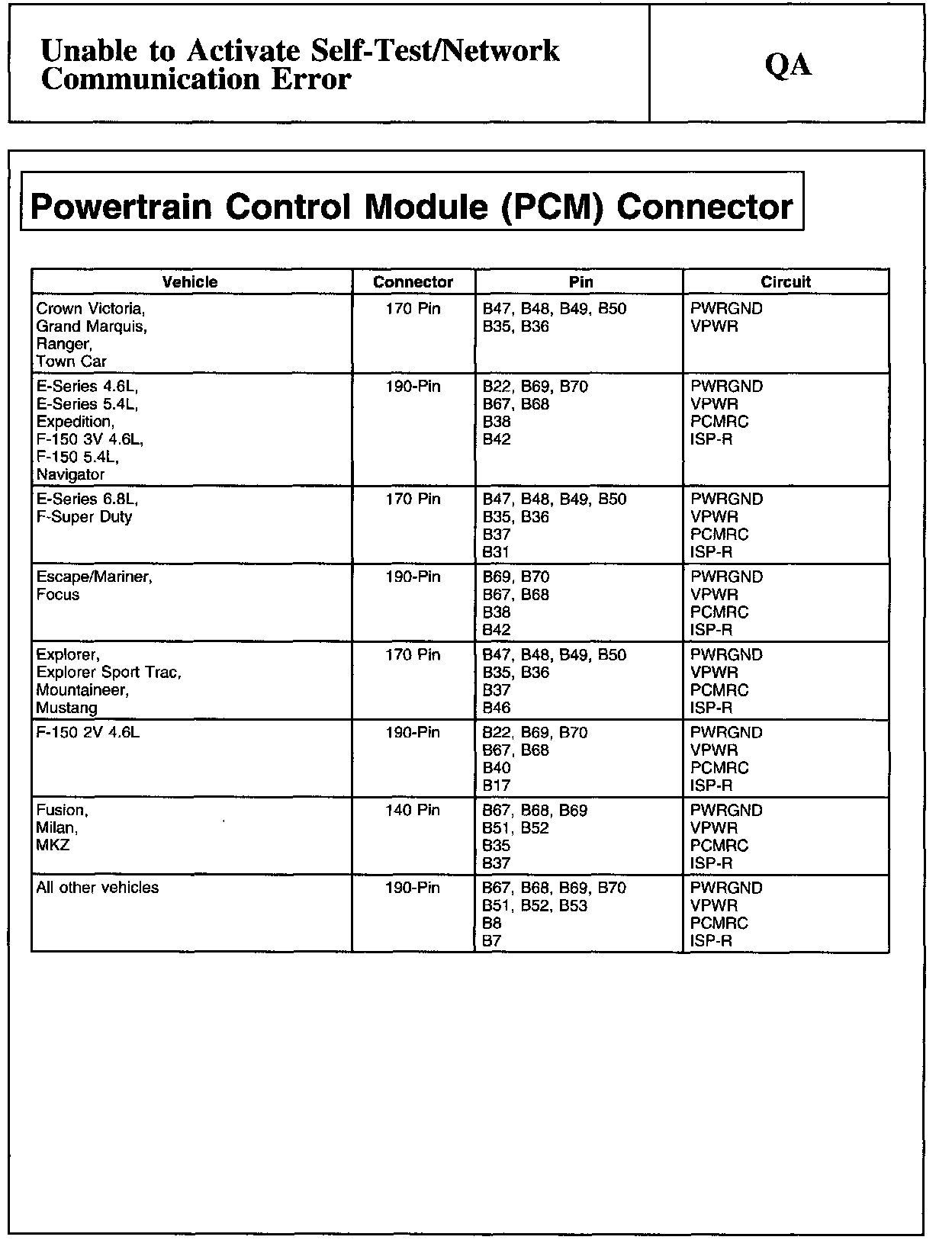

Powertrain Control Module Connector:

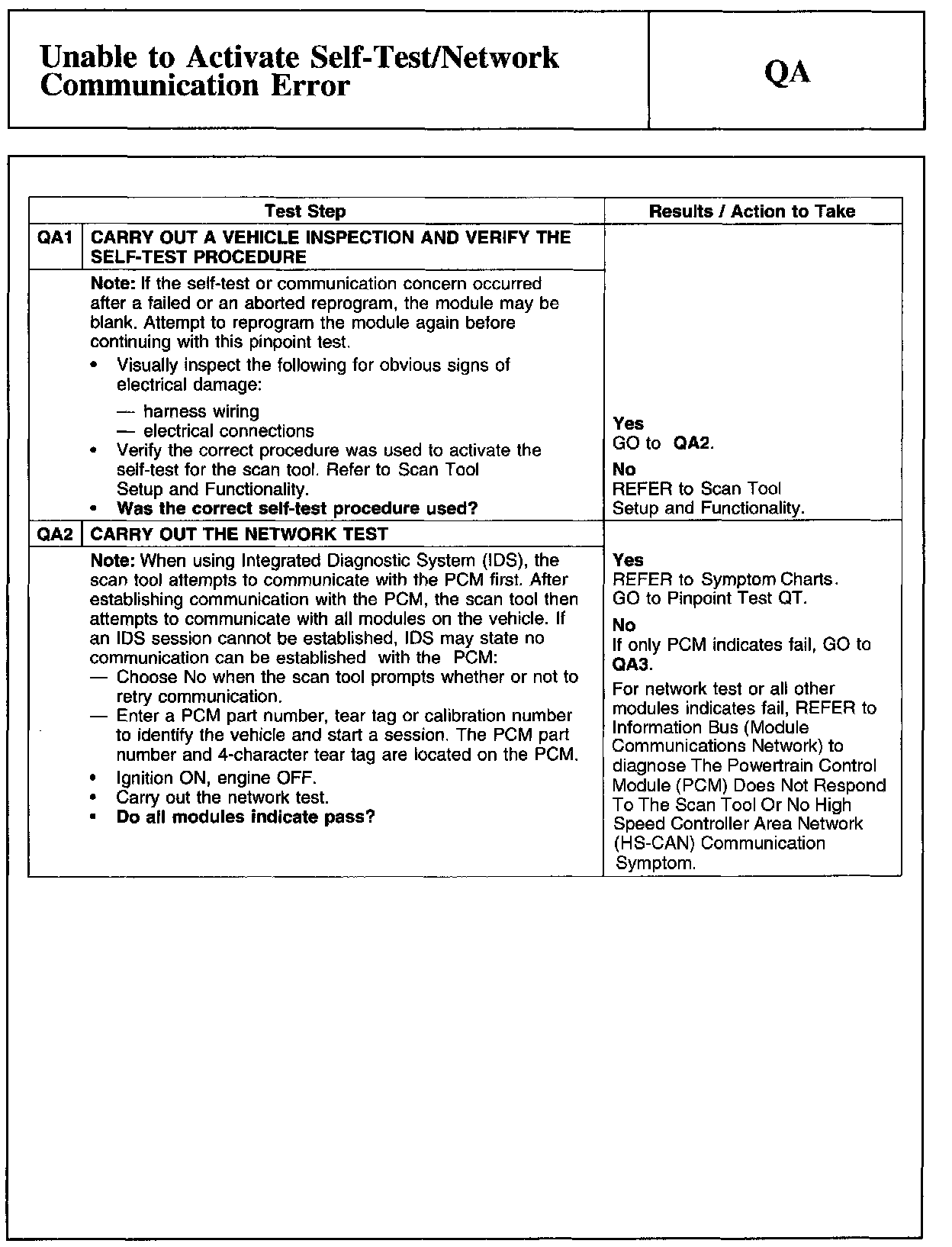

QA1-QA2:

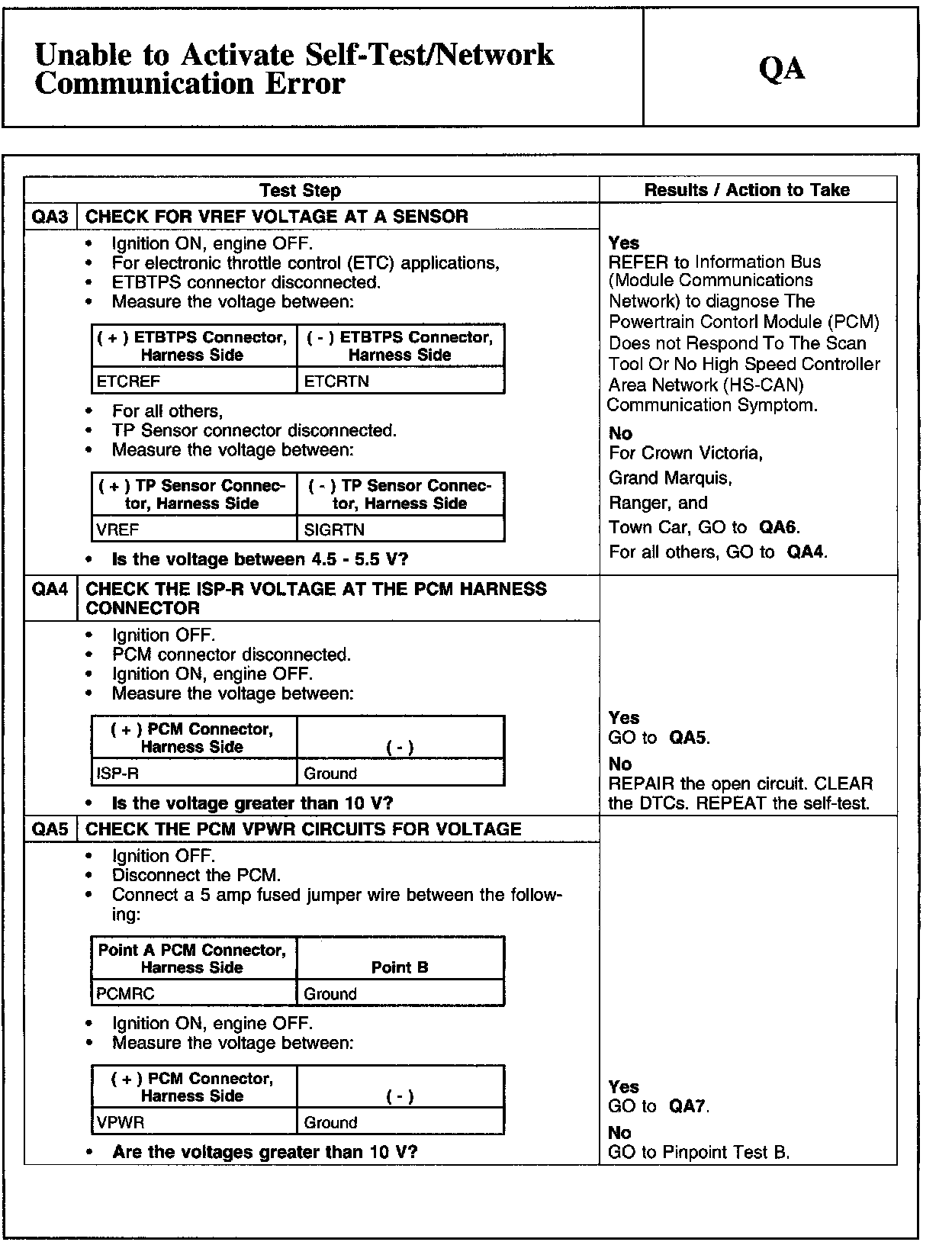

QA3-QA5:

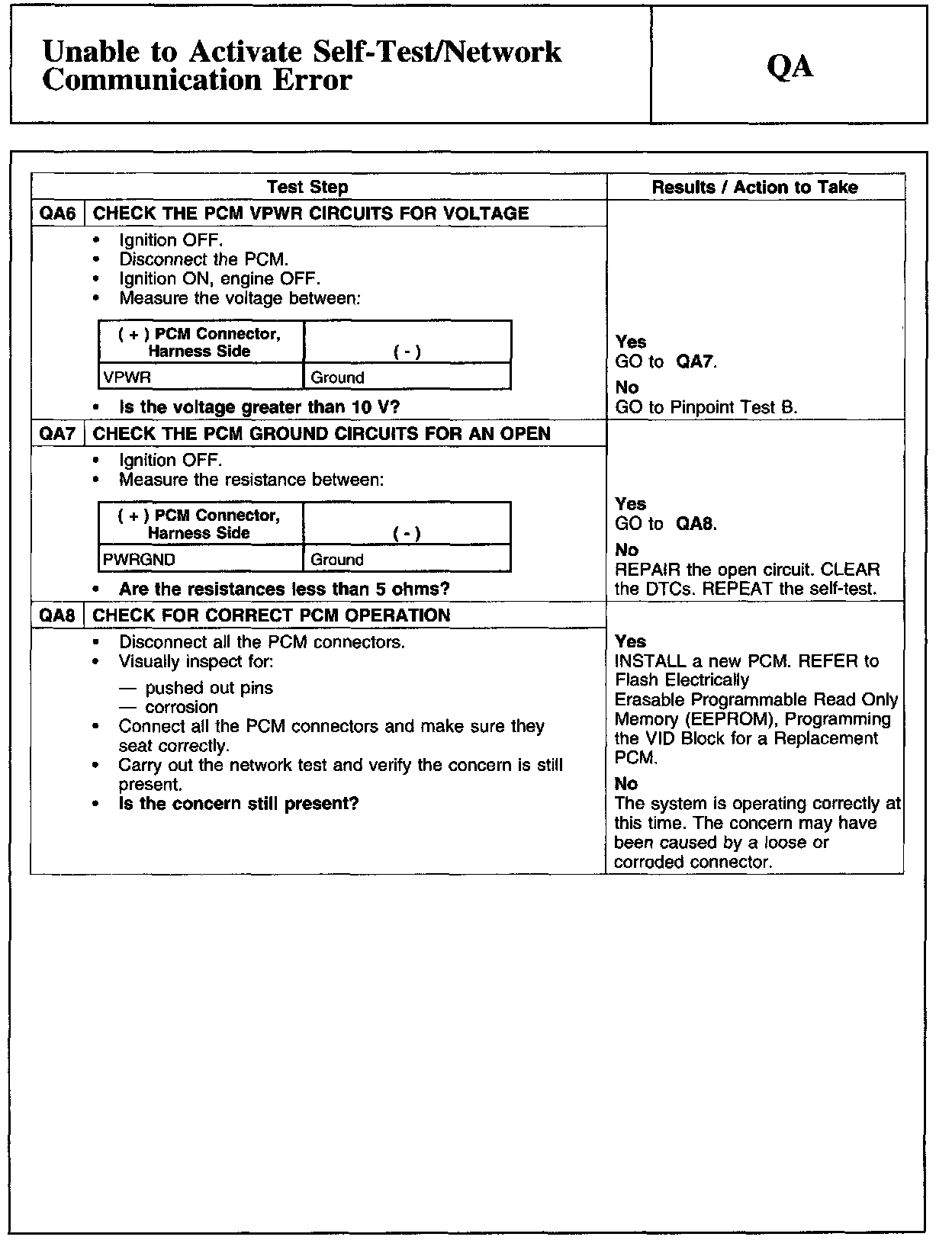

QA6-QA8:
